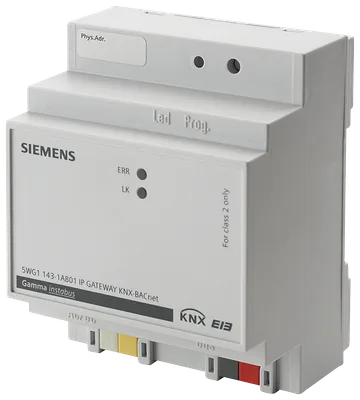

Siemens 5WG1143-1AB01

Ürün Hakkında

N 143/01 - IP Gateway KNX/BACnet. BACnet Application Specific Controller (B-ASC) as Gateway between KNX TP and BACnet IP Up to 250 BACnet objects Up to 455 BACnet COV subscriptions Automatic translation of KNX communication objects into BACnet objects according to the configuration with ETS For communication between KNX devices and PCs or other devices with Ethernet (10BaseT) interface, as well as in conjunction with a LAN modem or DSL router for remote access to an KNX installation For use as an interface e.g. for ETS or for visualization software Use the KNXnet/IP protocol KNXnet/IP Tunneling connection for parallel bus access by ETS and further PC software Assignment of the network parameters by the installer using ETS, or automatically by a DHCP server in the network 2 LEDs for display of operational availability and IP communication Additional power supply by an external safety extra low voltage power supply for AC/DC 24 V, 40 mA Pluggable terminal block for connection of external power supply unit (not included) Integrated bus coupling unit with bus connection via bus terminal Ethernet connection via RJ45 socket Mounting on DIN rail EN 60715-TH35-7.5

Siemens 5WG1143-1AB01

• Orijinal ve sertifikalı Siemens ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi
