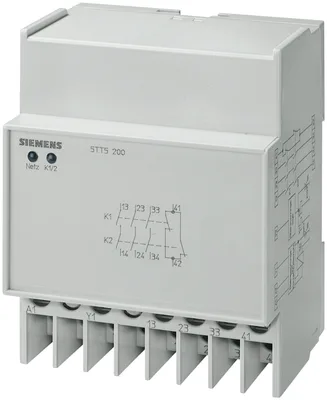

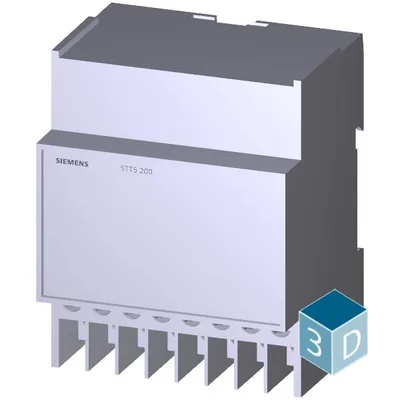

Siemens 5TT5200
EMERGENCY OFF relay T55 230V 10A Overall depth 55 mm
product brand nameSENTRON
product categorybasic device
product designationEMERGENCY-OFF relay
design of the productMounting depth 55 mm
design of input feedback inputVar
design of input start inputVar
Ürün Hakkında
Siemens 5TT5200 (EMERGENCY OFF relay T55 230V 10A Overall depth 55 mm), Yılsa Mühendislik güvencesiyle orijinal ve hızlı şekilde tedarik edilir. Siemens 5TT5200 fiyatı, stok durumu ve teknik özellikleri için hemen teklif alın.
Siemens 5TT5200
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product categorybasic device
product designationEMERGENCY-OFF relay
design of the productMounting depth 55 mm
design of input feedback inputVar
design of input start inputVar
General technical data
amplitude of deflection for vibration test according to IEC 60068-2-6 up to 55 Hz0,35 mm
operating range factor of control voltage_10,8
electrical endurance (operating cycles) of the contacts at 2 A at AC-15 at 230 V100.000
category according to EN 954-14
determinants for climatic applicability according to IEC 60068-10/55/04
performance level (PL) according to EN ISO 13849-1Level e
operating frequency maximum600 1/h
recovery time500 ms
Voltage
SIL Claim Limit (subsystem) according to EN 620613
surge voltage resistance between contacts of the relay operating mechanism4 kV
Breaking Capacity
as NC contact at DC-1324 V
as NO contact at DC-1324 V
as NC contact at AC-152 A
as NC contact at DC-134 A
as NO contact at AC-153 A
as NO contact at DC-134 A
as CO contact at AC-15 A
Dissipation
of magnet coil in relay operating mechanism3,5 V·A
of the contact in relay operating mechanism0,8 V·A
Main circuit
operating frequency rated value50 Hz
Control current
type of voltage of the control supply voltageAC
control voltage at connecting terminal Y1 at AC/DC24 V
rated value230 V
at 50 Hz rated value minimum184 V
at 50 Hz rated value maximum253 V
at 60 Hz rated value minimum184 V
at 60 Hz rated value maximum253 V
control current at connecting terminal Y1 at DC45 mA
operating range factor of control voltage_21,1
Suitability
suitability for use magnetically operated switch monitoringYok
suitability for use proximity switch monitoringYok
suitability for use EMERGENCY-OFF circuit monitoringVar
suitability for use opto-electronic protection device monitoringYok
suitability for use position switch monitoringVar
suitability for use tactile sensor monitoringYok
suitability for use valve monitoringYok
Product function
product function muting functionYok
Number
number of terminals with cross-head screw1
number of outputs as contact-affected switching element safety-related instantaneous contact4
Connections
type of connectable conductor cross-sections2 × 2,5 mm² (rigid maks.); 1 × 0,5 mm² (flexible, with end sleeve min.)
type of electrical connectionscrew terminal
plug-in socketYok

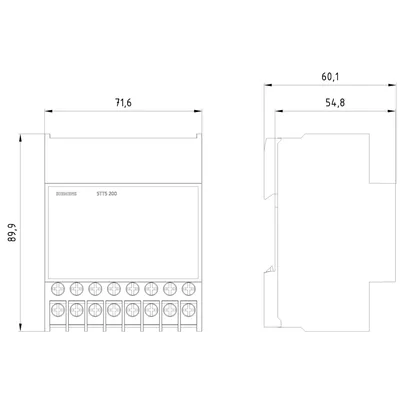

Mechanical Design
height90 mm
width71 mm
width of opening of the contacts1 mm
depth55 mm
fastening method rail mountingVar
required spacing between contacts of the relay operating mechanism3 mm
Net Weight295 g
Environmental conditions
minimum0 °C
maximum50 °C
