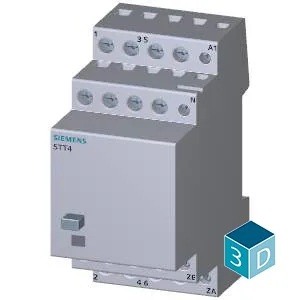

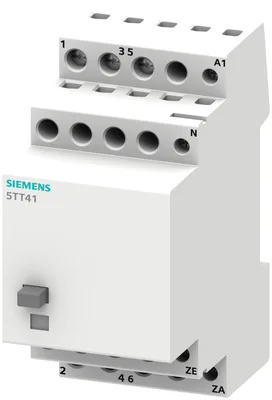

Siemens 5TT4123-0
Remote control switch with 3 NO contacts with central ON/OFF function Contact for 230 V AC, 400V 16A Control 230 V AC
product brand nameSENTRON
product designationRemote control switch
latching relay designmechanical for central control
electrical endurance (operating cycles)50.000
degree of pollution2
type of voltage of the operating voltageAC
Ürün Hakkında
Remote control switch with 3 NO contacts with central ON/OFF function Contact for 230 V AC, 400V 16A Control 230 V AC
Siemens 5TT4123-0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationRemote control switch
latching relay designmechanical for central control
General technical data
electrical endurance (operating cycles)50.000
galvanic isolation between magnet coil and contactVar
switching voltage of the contacts at AC minimum10 V
switching current at AC per contact minimum100 mA
degree of pollution2
power loss [V∙A] of magnet coil with pulse rated value7 V·A
Voltage
type of voltage of the operating voltageAC
continuous voltage fuse versionPTC
initial value0,8
full-scale value1,1
surge voltage resistance rated value4 kV
supply voltage250 V
Besleme gerilimi
minimum250 V
Protection class
protection class IPIP20, with connected conductors
Breaking Capacity
for fluorescent lamp load with DUO circuit700 V·A
for fluorescent lamp load with parallel compensation300 V·A
for uncompensated fluorescent lamp load400 V·A
at cos phi 0.616 A
rated value16 A
switching capacity active power with incandescent lamp load2.000 W
Dissipation
at 16 A per contact rated value1,2 W
of magnet coil with pulse rated value4,5 W
Control current
of control voltage_1AC
of control voltage_2AC
_1 initial value184 V
_1 full-scale value253 V
_1 setpoint230 V
_2 initial value184 V
_2 full-scale value253 V
_2 setpoint230 V
_1 initial value50 Hz
_1 full-scale value50 Hz
_2 initial value50 Hz
_2 full-scale value50 Hz
operating range factor of control voltage_20,8
Product details
product component switch position indicatorVar
number of NC contacts0
number of NO contacts3
number of CO contacts0
Product function
direct operationVar
communication functionYok
other measurement functionYok
pulse duration minimum50 ms
Number
number of terminals10
Connections
minimum1 mm²
maximum6 mm²
minimum1 mm²
maximum6 mm²
minimum0,8 N·m
maximum1 N·m

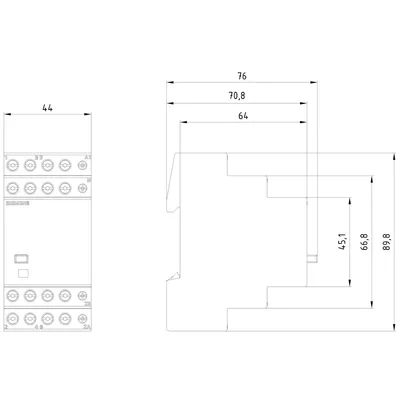

Mechanical Design
height90 mm
width44 mm
width of opening of the contacts1,2 mm
depth76 mm
mounting height90 mm
installation depth70 mm
number of modular width units2,5
fastening methodDIN rail
mounting positionany
required spacing for live parts6 mm
Net Weight0,229 kg
Environmental conditions
minimum-10 °C
maximum40 °C
ambient temperature with relative humidity 95% according to DIN 5001535 °C
