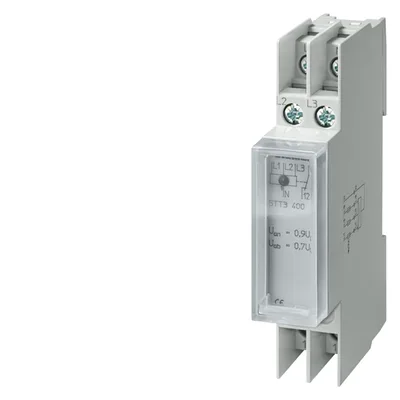

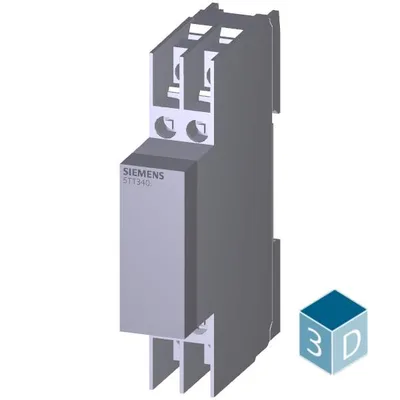

Siemens 5TT3400
Voltage relay T5570 AC 230/400V 1CO 0.7/0.9 With transparent cap
product brand nameSENTRON
product designationVoltage relay
measurable voltage at AC initial value253 V
type of voltage for monitoringAC
at AC at 50 Hz rated value minimum230 V
at AC at 50 Hz rated value maximum230 V
Ürün Hakkında
Voltage relay T5570 AC 230/400V 1CO 0.7/0.9 With transparent cap
Siemens 5TT3400
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationVoltage relay
General technical data
measurable voltage at AC initial value253 V
Voltage
type of voltage of the operating voltage for actuationAC
type of voltage for monitoringAC
adjustable voltage range full-scale value161 V
measurable voltage at AC full-scale value253 V
Control current
at AC at 50 Hz rated value minimum230 V
at AC at 50 Hz rated value maximum230 V
at AC at 60 Hz rated value minimum230 V
at AC at 60 Hz rated value maximum230 V
Auxiliary circuit
number of CO contacts for auxiliary contacts1
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Product function
voltage window recognition 1 phaseYok
voltage window recognition 3 phaseYok
voltage window recognition DCYok
overvoltage detection 1 phaseYok
overvoltage detection 3 phaseYok
overvoltage detection DCYok
undervoltage detection 1 phaseVar
undervoltage detection 3 phasesVar
undervoltage detection DCYok
Connections
product component removable terminal for auxiliary and control circuitYok
type of electrical connectionscrew terminal
plug-in socketYok

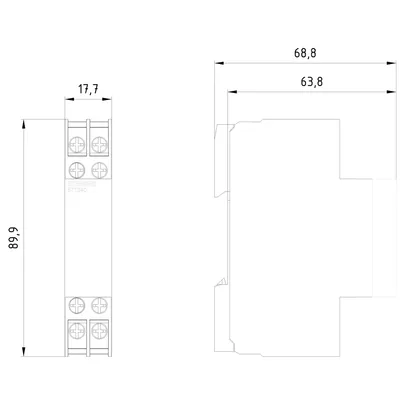

Mechanical Design
height90 mm
width18 mm
depth64 mm
Net Weight77 g
