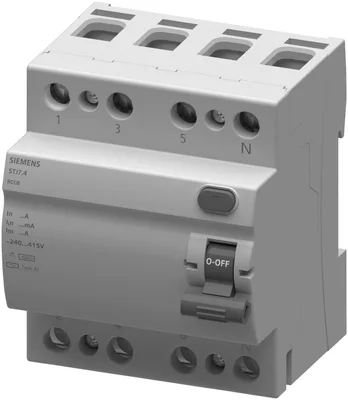

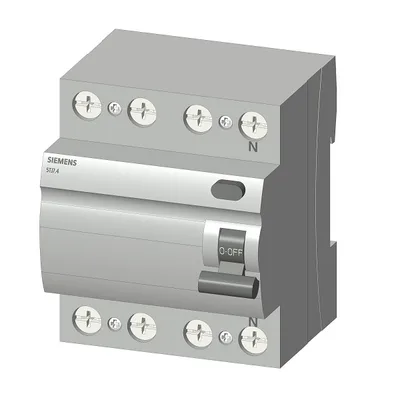

Siemens 5TJ7644-0

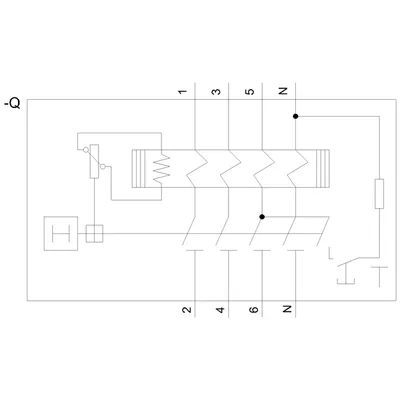

SINOPLUS, Residual Current operated circuit breaker 4-pole, Type AC, In: 40A 300mA, Un AC:415V
product brand nameSINOPLUS
number of poles4
short-circuit current rating6 kA
switching function short-term delayedYok
overvoltage category3
degree of pollution2
Ürün Hakkında
SINOPLUS, Residual Current operated circuit breaker 4-pole, Type AC, In: 40A 300mA, Un AC:415V
Siemens 5TJ7644-0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSINOPLUS
General technical data
number of poles4
size of installation devices according to DIN 438801
mechanical service life (operating cycles) typical5.000
short-circuit current of series fuse maximum permissible40 A
short-circuit current rating6 kA
switching function short-term delayedYok
overvoltage category3
degree of pollution2
insulation voltage (Ui) rated value660 V
tripping fault current rated value300 mA
— at 40 °C rated value40 A
— at 45 °C rated value40 A
— at 50 °C rated value40 A
operational current at AC rated value40 A
residual current typeAC
let-through current permissible3 kA
I2t value permissible11.500 A²·s
Besleme gerilimi
supply voltage for testing equipment minimum195 V
value range of the supply voltage frequency50/60 Hz
value range of the operating frequency50/60 Hz
value range of the supply voltage at AC240/415 V
Protection class
protection class IPIP20, if the distribution board is installed, with connected conductors
Breaking Capacity
switching capacity current according to IEC 61008-1 rated value0,5 kA
Dissipation
for rated value of the current at AC in hot operating state per pole4,9 W
maximum19,6 W
Product details
product feature silicon-freeVar
product extension installable supplementary devicesYok
Connections
minimum1 mm²
maximum35 mm²
minimum1 mm²
maximum35 mm²
minimum2 N·m
maximum2 N·m
position of power supply cordtop veya bottom

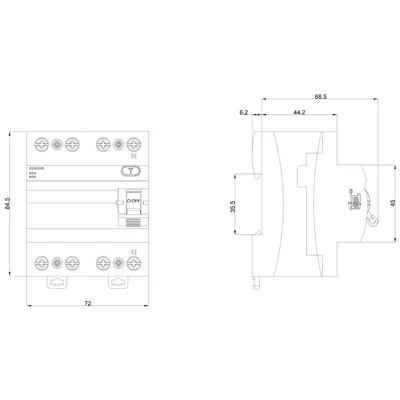

Mechanical Design
height84,5 mm
width72 mm
depth76 mm
installation depth70 mm
number of modular width units4
fastening methodDIN rail (REG)
mounting positionany
Net Weight390 g
Environmental conditions
minimum-25 °C
maximum50 °C
minimum permissible-25 °C
maximum permissible60 °C
number of test cycles for environmental testing according to IEC 60068-2-3028
Certificates
reference code according to IEC 81346-2F
