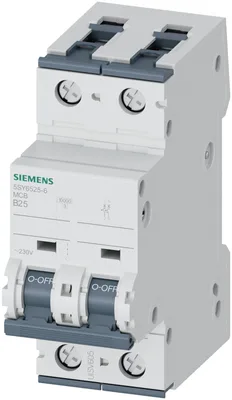

Siemens 5SY6525-6
Miniature circuit breaker 230 V 6kA, 1+N-pole B, 25A, D=70 mm
product brand nameSENTRON
product designationMiniature circuit breaker
number of poles2
design of pole1P+N
tripping characteristic classB
overvoltage category3
Ürün Hakkında
Miniature circuit breaker 230 V 6kA, 1+N-pole B, 25A, D=70 mm
Siemens 5SY6525-6
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMiniature circuit breaker
General technical data
number of poles2
design of pole1P+N
tripping characteristic classB
mechanical service life (operating cycles) typical10.000
overvoltage category3
degree of pollution3
Voltage
type of voltage of the operating voltageAC
with single-phase operation at AC rated value250 V
supply voltage with single-phase operation at AC rated value230 V
— at 40 °C rated value23,48 A
— at 50 °C rated value21,85 A
— at 55 °C rated value21 A
operational current at AC rated value25 A
Besleme gerilimi
at AC230 V
at DC rated value60 V
value range of the supply voltage frequency50/60 Hz
operating voltage at DC rated value maximum72 V
Protection class
protection class IPIP20, with connected conductors
Breaking Capacity
at DC according to IEC 60947-2 rated value15 kA
according to EN 60898 rated value6 kA
according to IEC 60947-2 rated value15 kA
energy limitation class3
Dissipation
power loss [W] for rated value of the current at AC in hot operating state per pole2,4 W
suitability for operationInfrastructure / Industry
Product details
product feature touch protectionVar
combined terminal topVar
combined terminal bottomVar
neutral conductor switchingVar
product feature properties for main switches in accordance with EN 60204-1Var
product feature halogen-freeVar
product feature sealableVar
product feature silicon-freeVar
product extension installable supplementary devicesVar
Product function
set values setting current (Ii) for I-tripping4
reference value setting current (Ii) for I-trippingx In
Short circuit
at AC according to UL 1077 and CSA C22.2 No.2355 kA
Connections
minimum0,75 mm²
maximum35 mm²
minimum0,75 mm²
maximum35 mm²
minimum0,75 mm²
maximum25 mm²
minimum18
maximum4
minimum22 lbf·in
maximum31 lbf·in
minimum2,5 N·m
maximum3,5 N·m
position of power supply cordAny
Mechanical Design
height90 mm
width36 mm
depth76 mm
installation depth70 mm
number of modular width units2
fastening methodDIN rail
mounting positionany
Net Weight315 g
Environmental conditions
influence of the surrounding temperaturemaks. 95% RH up to 55°C
standardIEC / EN 60898-1, IEC / EN 60947-2 / UL1077
vibration resistance according to IEC 60068-2-6±1mm 5 to 25Hz; 50m/s² 25 to 150Hz
minimum-25 °C
maximum55 °C
minimum-40 °C
maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-306
