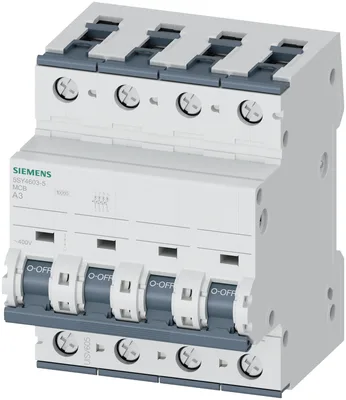

Siemens 5SY4603-5
Miniature circuit breaker 400 V 10kA, 3+N-pole, A, 3 A, D=70 mm
product brand nameSENTRON
product designationMiniature circuit breaker
number of poles4
design of pole3P+N
tripping characteristic classA
overvoltage category3
Ürün Hakkında
Miniature circuit breaker 400 V 10kA, 3+N-pole, A, 3 A, D=70 mm
Siemens 5SY4603-5
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMiniature circuit breaker
General technical data
number of poles4
design of pole3P+N
tripping characteristic classA
mechanical service life (operating cycles) typical10.000
overvoltage category3
degree of pollution3
Voltage
type of voltage of the operating voltageAC
with single-phase operation at AC rated value440 V
with multi-phase operation at AC rated value440 V
supply voltage with single-phase operation at AC rated value230 V
— at 40 °C rated value2,86 A
— at 50 °C rated value2,71 A
— at 55 °C rated value2,62 A
— at 60 °C rated value2,54 A
operational current at AC rated value3 A
Besleme gerilimi
at AC400 V
at DC rated value60 V
value range of the supply voltage frequency50/60 Hz
operating voltage at DC rated value maximum72 V
Protection class
protection class IPIP20, with connected conductors
Breaking Capacity
at DC according to IEC 60947-2 rated value15 kA
according to EN 60898 rated value10 kA
according to IEC 60947-2 rated value35 kA
Dissipation
power loss [W] for rated value of the current at AC in hot operating state per pole1,9 W
suitability for operationInfrastructure / Industry
Product details
product feature touch protectionVar
combined terminal topVar
combined terminal bottomVar
neutral conductor switchingVar
product feature properties for main switches in accordance with EN 60204-1Var
product feature halogen-freeVar
product feature sealableVar
product feature silicon-freeVar
product extension installable supplementary devicesVar
Product function
set values setting current (Ii) for I-tripping2,5
reference value setting current (Ii) for I-trippingx In
Short circuit
at AC according to UL 1077 and CSA C22.2 No.2355 kA
Connections
minimum0,75 mm²
maximum35 mm²
minimum0,75 mm²
maximum35 mm²
minimum0,75 mm²
maximum25 mm²
minimum18
maximum4
minimum22 lbf·in
maximum31 lbf·in
minimum2,5 N·m
maximum3,5 N·m
position of power supply cordAny
Mechanical Design
height90 mm
width72 mm
depth76 mm
installation depth70 mm
number of modular width units4
fastening methodDIN rail
mounting positionany
Net Weight655 g
Environmental conditions
influence of the surrounding temperaturemaks. 95% RH up to 55°C, maks. 55% RH up to 70°C, maks. 35% RH up to 75°C
standardIEC / EN 60898-1, IEC / EN 60947-2 / UL1077
vibration resistance according to IEC 60068-2-6±1mm 5 to 25Hz; 50m/s² 25 to 150Hz
minimum-40 °C
maximum70 °C
minimum-40 °C
maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-306
