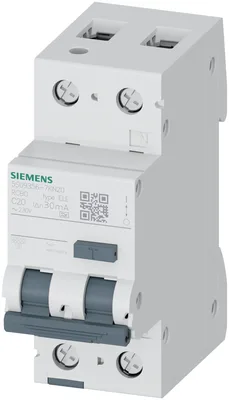

Siemens 5SU9356-7KN20
Voltage-dependent RCD fonksiyon. Please check if approved in national standards. mA, C-Char, In: 20 A, Un AC: 230 V, ile Overvoltage koruma 280 V
product brand nameSENTRON
product designationRCD-operated circuit breaker
design of the productInstantaneous
number of poles2
number of poles with protection1
design of pole1P+N
Ürün Hakkında
Voltage-dependent RCD fonksiyon. Please check if approved in national standards. mA, C-Char, In: 20 A, Un AC: 230 V, ile Overvoltage koruma 280 V
Siemens 5SU9356-7KN20
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationRCD-operated circuit breaker
design of the productInstantaneous
General technical data
number of poles2
number of poles with protection1
design of pole1P+N
tripping characteristic classC
mechanical service life (operating cycles) typical10.000
overvoltage category3
degree of pollution2
Voltage
type of voltage of the operating voltageAC
insulation voltage (Ui) rated value264 V
surge voltage resistance rated value4.000 V
surge current resistance at (8/20) µs1 kA
tripping fault current rated value30 mA
— at 30 °C rated value20 A
— at 40 °C rated value18,91 A
— at 45 °C rated value18,34 A
— at 50 °C rated value17,75 A
— at 55 °C rated value17,15 A
operational current at AC rated value20 A
residual current typeA
Besleme gerilimi
at AC rated value230 V
for testing equipment minimum195 V
operating frequency50/60 Hz
supply voltage frequency rated value50 Hz
Protection class
protection class IPIP20, if the distribution board is installed, with connected conductors
Breaking Capacity
according to EN 60898 rated value6 kA
according to IEC 60947-2 rated value6 kA
short-circuit current breaking capacity (Icn) according to EN 61009-1 rated value6 kA
rated residual switching capacity (IΔm) according to IEC 61009-16 kA
energy limitation class3
Dissipation
for rated value of the current at AC in hot operating state per pole2,05 W
maximum4,1 W
Product details
product feature touch protectionVar
product component neutral conductor switchingVar
product feature halogen-freeVar
product feature silicon-freeVar
Product function
product functionvoltage dependent RCD function
Connections
minimum0,75 mm²
maximum35 mm²
minimum0,75 mm²
maximum35 mm²
minimum0,75 mm²
maximum25 mm²
minimum2,5 N·m
maximum3 N·m
position of power supply cordEither top veya bottom
Mechanical Design
height90 mm
width36 mm
depth77 mm
installation depth70 mm
number of modular width units2
mounting positionany
Net Weight280 g
Environmental conditions
influence of the surrounding temperatureMaks. 95% humidity
minimum-25 °C
maximum45 °C
minimum-40 °C
maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-3028
