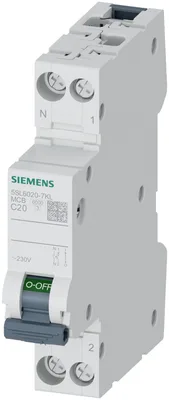

Siemens 5SL6020-7KL
miniature devre kesici 230 V, 6 kA, 1+N-pole/1 MW, N left, C20
product brand nameSENTRON
product designationMiniature circuit breaker
design of the productMiniature circuit breaker compact
design of pole1P+N
tripping characteristic classC
overvoltage category3
Ürün Hakkında
miniature devre kesici 230 V, 6 kA, 1+N-pole/1 MW, N left, C20
Siemens 5SL6020-7KL
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMiniature circuit breaker
design of the productMiniature circuit breaker compact
General technical data
design of pole1P+N
tripping characteristic classC
mechanical service life (operating cycles) typical10.000
overvoltage category3
degree of pollution2
Voltage
type of voltage of the operating voltageAC
insulation voltage (Ui) at AC rated value250 V
— at 30 °C rated value20 A
— at 40 °C rated value18,79 A
— at 50 °C rated value17,51 A
— at 55 °C rated value16,82 A
— at 60 °C rated value16,11 A
operational current at AC rated value20 A
Besleme gerilimi
at AC230 V
at DC rated value60 V
value range of the supply voltage frequency50/60 Hz
minimum24 V
with single-phase operation at AC maximum250 V
Protection class
protection class IPIP20, with connected conductors
Breaking Capacity
according to EN 60898 rated value6 kA
energy limitation class3
Dissipation
at AC in hot operating state per pole2,2 W
Suitability
suitability for operationResidential buildings/infrastructure
Product details
product feature touch protectionVar
combined terminal topYok
combined terminal bottomYok
neutral conductor switchingVar
product feature properties for main switches in accordance with EN 60204-1Yok
product feature halogen-freeVar
product feature sealableVar
product feature silicon-freeVar
product extension installable supplementary devicesVar
Product function
communication functionYok
other measurement functionYok
Connections
minimum0,75 mm²
maximum16 mm²
minimum0,75 mm²
maximum16 mm²
minimum0,75 mm²
maximum10 mm²
minimum10,6 lbf·in
maximum22,1 lbf·in
minimum1,2 N·m
maximum2 N·m
position of power supply cordAny
Mechanical Design
height90 mm
width18 mm
depth76 mm
installation depth70 mm
number of modular width units1
fastening methodDIN rail
mounting positionany
Net Weight118 g
Environmental conditions
standardIEC/EN60898-1, GB/T10963.1
vibration resistance according to IEC 60068-2-6Var
minimum-25 °C
maximum60 °C
ambient temperature during operation-25...45°C: maks. 85%rF. 45...60°C: maks. 43%rF
minimum-40 °C
maximum75 °C
number of test cycles for environmental testing according to IEC 60068-2-306
