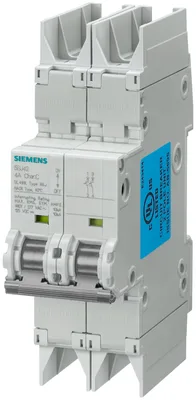

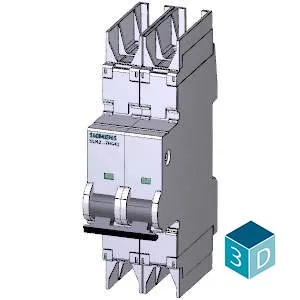

Siemens 5SJ4210-8HG42
devre kesici 10kA, 2-pole, D, 10 A according to UL 489-480Y/277V
product brand nameSENTRON
product designationMiniature circuit breakers
design of the productMiniature circuit-breaker 5SJ4
number of poles2
design of pole2P
tripping characteristic classD
Ürün Hakkında
devre kesici 10kA, 2-pole, D, 10 A according to UL 489-480Y/277V
Siemens 5SJ4210-8HG42
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMiniature circuit breakers
design of the productMiniature circuit-breaker 5SJ4
General technical data
number of poles2
design of pole2P
tripping characteristic classD
mechanical service life (operating cycles) typical10.000
installation environment regarding EMCSuitable for environment B (immunity to interference not applicable)
reference code according to DIN 40719 extended according to IEC 204-2 according to IEC 750F
overvoltage category3
degree of pollution3
Voltage
insulation voltage (Ui) at AC rated value440 V
— at 30 °C rated value10 A
— at 40 °C rated value10 A
— at 50 °C rated value9,4 A
— at 55 °C rated value9,1 A
— at 60 °C rated value8,7 A
operational current at AC rated value10 A
Besleme gerilimi
at AC400 V
at DC rated value60 V
value range of the supply voltage frequency50/60 Hz
at AC according to UL 489 and CSA C22.2 No. 5-02 maximum277 V
at DC rated value maximum60 V
at DC 1-channel according to UL 489 and CSA C22.2 No. 5-02 maximum60 V
at DC 2-channel according to UL 489 and CSA C22.2 No. 5-02 maximum125 V
supply voltage frequency rated value50 Hz
Protection class
protection class IPIP 0 in the handle range
Breaking Capacity
according to EN 60898 rated value10 kA
according to IEC 60947-2 rated value15 kA
Dissipation
power loss [W] for rated value of the current at AC in hot operating state per pole1,3 W
Main circuit
type of voltage supply at AC according to UL 489 and CSA C22.2 No. 5-02480/277
suitability for operationInfrastructure / Industry
Product details
product feature touch protectionVar
tunnel terminals topYok
tunnel terminals bottomYok
combined terminal topVar
combined terminal bottomVar
neutral conductor switchingYok
product feature halogen-freeVar
product feature sealableVar
product feature silicon-freeVar
product extension installable supplementary devicesVar
Product function
set values setting current (Ii) for I-tripping14
reference value setting current (Ii) for I-trippingx In
product function noteTerminal tightening torque for Cu, 60/75°C; 3.5Nm/31lb.in
Short circuit
short-circuit current breaking capacity (Icn) at AC according to UL 1077 and CSA C22.2 No.23510 kA
Connections
minimum0,75 mm²
maximum25 mm²
tightening torque with screw-type terminals maximum3,5 N·m
position of power supply cordAny

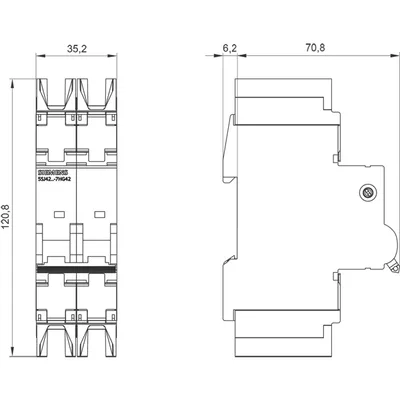

Mechanical Design
height121 mm
width36 mm
depth70 mm
installation depth70 mm
number of modular width units2
fastening methodon standard mounting rail
mounting positionany
Net Weight338 g
Environmental conditions
standardIEC / EN 60947-2 / UL 489
vibration resistance50 m/s² 25 to 150Hz ve 60m/s² 35Hz (4sec)
vibration resistance according to IEC 60068-2-6±1 mm 5 to 25 Hz; 50 m/s² 25 to 150 Hz
minimum-25 °C
maximum55 °C
ambient temperature during operationmaks. 95% humidity
minimum-40 °C
maximum75 °C
