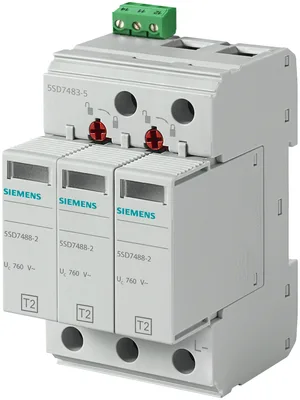

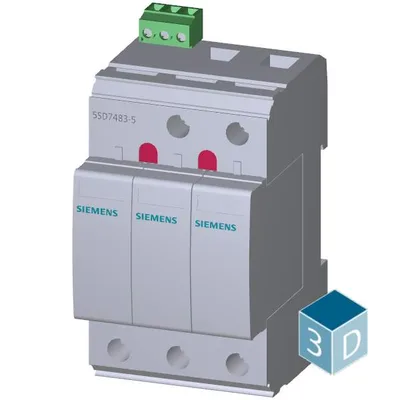

Siemens 5SD7483-5
surge arrester, type 2, protective modules, plug-in, Uc 750 V AC, 3-pole, for 4-wire networks (L1, L2, L3, pen), with remote signaling,
standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
Test Class I, Type 1Yok
Test Class II, Type 2Var
Test Class III, Type 3Yok
number of SPD ports1
Ürün Hakkında
surge arrester, type 2, protective modules, plug-in, Uc 750 V AC, 3-pole, for 4-wire networks (L1, L2, L3, pen), with remote signaling,
Siemens 5SD7483-5
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
General data
standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
Test Class I, Type 1Yok
Test Class II, Type 2Var
Test Class III, Type 3Yok
number of SPD ports1
design of the productSurge arrester
design of pole3
designation of the protective pathsL-PEN, L-PE
accessories3 x 5SD7488-2
fastening methodTH35 DIN rail
material of the enclosurePA 6,6 / PBT
degree of pollution2
overvoltage category according to IEC 61010-1III
protection class IP at connection all terminalsIP20
shock acceleration25 gn
vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis5 gn
relative humidity during operation5... 95 %
installation altitude at height above sea level maximum2.000 m

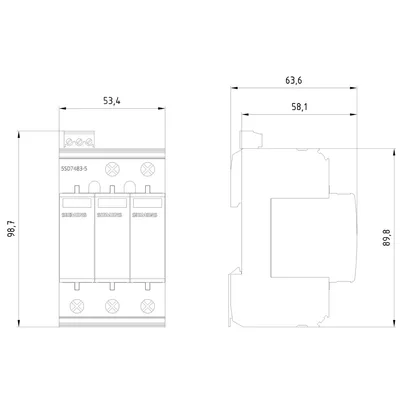

width53,4 mm
height99 mm
depth71,5 mm
Electrical data
type of distribution systemTN-C, IT
at AC690 V
value range of the operating frequency50 / 60 Hz
at AC maximum760 V
apparent power consumption maximum1.200 mVA
discharge current at (8/20) µs15 kA
discharge current 1 phase at (8/20) µs maximum30 kA
short-circuit rating (SCCR) at 264 V25 kA
maximum2,9 kV
at rated value of discharge current maximum2,9 kV
at 10 kA maximum2,7 kV
at 5 kA maximum2,5 kV
at 3 kA maximum2,3 kV
Response time25 ns
adjustable response factor of tripping current1,6
fuse protection type at V-shaped connection80 A AC (gG)
fuse protection type for T-connector100 A AC (gG)
Connections/ Terminals
type of electrical connectionScrew terminal
stripped length16 mm
tightening torque4,3... 4,7 N·m
for finely stranded conductor1,5... 25 mm²
for rigid conductor1,5... 35 mm²
AWG number as coded connectable conductor cross section15... 2
design of the thread of the connection screwM5
signal designOptical, remote signaling contact
Indicator/remote signaling
product component remote signaling contactVar
switching function of the remote signaling contactsPDT contact
operating voltage of the remote signaling contacts at AC5... 250 V
operational current of the remote signaling contacts at AC5 mA... 1,5 A
connection type of remote signaling contactM2
connectable conductor cross-section for remote signaling contacts for rigid conductor0,14... 1,5 mm²
connectable conductor cross-section for remote signaling contacts for finely stranded conductor0,14... 1,5 mm²
AWG number as coded connectable conductor cross section for remote signaling contacts28... 16
tightening torque for remote signaling contacts0,25 N·m
stripped length of the cable for remote signaling contacts7 mm
NEMA/UL - Data
type of surge protective device (SPD) according to ULType 4 SPD for Type 2 applications
type of distribution system according to UL3D
type of distribution systemTN-C, IT
designation of the protective paths according to ULL-L, L-G
between L and L4 kV
between L and Ground (GND)2,5 kV
between L and Ground (GND)750 V
between L and L according to UL rated value10 kA
according to UL10... 2
for remote signaling contacts according to UL30... 14
operating voltage of the remote signaling contacts according to UL125 V
operational current of the remote signaling contacts at AC according to UL1 A
during operation-40... +80 °C
during storage-40... +80 °C
installation altitude above sea level according to UL6.562 ft
combustibility class according to UL 94V0
