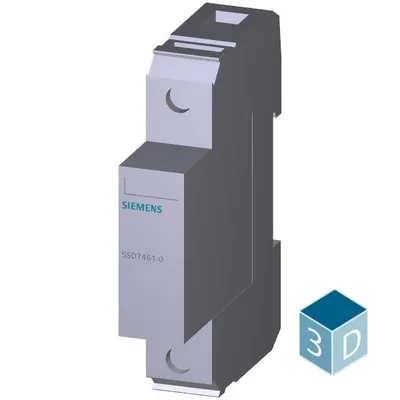

Siemens 5SD7461-0
surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 1-pole, L-N circuit
standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
Test Class I, Type 1Yok
Test Class II, Type 2Var
Test Class III, Type 3Yok
number of SPD ports1
Ürün Hakkında
surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 1-pole, L-N circuit
Siemens 5SD7461-0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
General data
standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
Test Class I, Type 1Yok
Test Class II, Type 2Var
Test Class III, Type 3Yok
number of SPD ports1
design of the productSurge arrester
design of pole1
designation of the protective pathsL-PEN, L-N
accessories1 x 5SD7468-1
fastening methodTH35 DIN rail
material of the enclosurePA 6,6 / PBT
size of surge arrester1 MW
degree of pollution2
overvoltage category according to IEC 61010-1III
protection class IP at connection all terminalsIP20
shock acceleration25 gn
vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis5 gn
relative humidity during operation5... 95 %
installation altitude at height above sea level maximum2.000 m

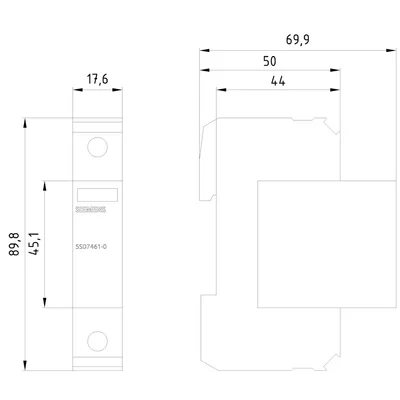

width17,8 mm
height90 mm
depth71,5 mm
Electrical data
type of distribution systemTN, TT
at AC230 V
value range of the operating frequency50 / 60 Hz
at AC maximum350 V
apparent power consumption maximum150 mVA
discharge current at (8/20) µs20 kA
discharge current 1 phase at (8/20) µs maximum40 kA
short-circuit rating (SCCR) at 264 V25 kA
protection level1,4 kV
maximum1,5 kV
at rated value of discharge current maximum1,5 kV
at 10 kA maximum1,3 kV
at 5 kA maximum1,2 kV
at 3 kA maximum1,1 kV
Response time25 ns
adjustable response factor of tripping current1,6
fuse protection type at V-shaped connection80 A AC (gG)
fuse protection type for T-connector125 A AC (gG)
Connections/ Terminals
type of electrical connectionScrew terminal
stripped length16 mm
tightening torque4,3... 4,7 N·m
for finely stranded conductor1,5... 25 mm²
for rigid conductor1,5... 35 mm²
finely stranded0,5... 25 mm²
AWG number as coded connectable conductor cross section15... 2
design of the thread of the connection screwM5
signal designOptical, remote signaling contact
Indicator/remote signaling
product component remote signaling contactYok
NEMA/UL - Data
type of distribution systemTN, TT
during operation-40... +80 °C
during storage-40... +80 °C
combustibility class according to UL 94V-0
