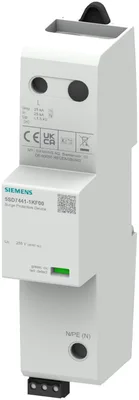

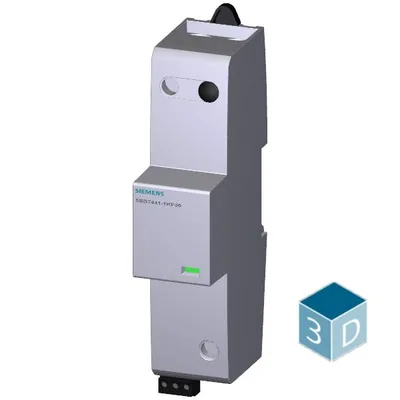

Siemens 5SD7441-1KF00
combination surge arrester ile dahili arrester back-up sigorta, requirement sınıf B+C, Uc 255 V, 1-pole için TN-S ve TT systems
standardIEC 61643-11: 2011
Test Class I, Type 1Var
Test Class II, Type 2Var
Test Class III, Type 3Yok
number of SPD ports1
design of the productArrester combination
Ürün Hakkında
combination surge arrester ile dahili arrester back-up sigorta, requirement sınıf B+C, Uc 255 V, 1-pole için TN-S ve TT systems
Siemens 5SD7441-1KF00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
General data
standardIEC 61643-11: 2011
Test Class I, Type 1Var
Test Class II, Type 2Var
Test Class III, Type 3Yok
number of SPD ports1
design of the productArrester combination
design of pole1
designation of the protective pathsL-PEN
fastening methodTH35 DIN rail
size of surge arrester2 MW
degree of pollution2
overvoltage category according to IEC 61010-1II
protection class IP at connection all terminalsIP20
relative humidity during operation5... 95 %
installation altitude at height above sea level maximum2.000 m

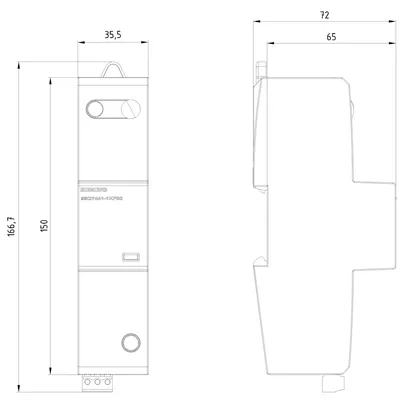

width36 mm
height150 mm
depth73 mm
Electrical data
type of distribution systemTN-S, TT
at AC230 V
value range of the operating frequency50/60 Hz
at AC maximum255 V
between L and PE at AC maximum255 V
between L and (PE)N at AC maximum255 V
discharge current at (8/20) µs25 kA
discharge current 1 phase at (8/20) µs maximum25 kA
between L and (PE)N at (8/20) µs25 kA
between L and N at (8/20) µs25 kA
between L and PE at (8/20) µs25 kA
between L and PE at (8/20) µs25 kA
total lightning impulse current at (10/350) µs25 kA
lightning current peak value at (10/350) µs25 kA
lightning current peak value between L and PE25 kA
lightning current peak value between L and N25 kA
charge of the flash at (10/350) µs25 A·s
charge of the flash between L and N25 A·s
charge of the flash between L and PE25 A·s
specific energy of the flash at (10/350) µs25 kJ/?
between L and N156,25 kJ/?
between L and PE156,25 kJ/?
follow current extinguishing capability50 kA
between L and N50 kA
short-circuit rating (SCCR) at 264 V50 kA
protection level1,5 kV
maximum1,5 kV
between L and N maximum1,5 kV
between L and PE maximum1,5 kV
Response time100 ns
response time between L and (PE)N100 ns
Connections/ Terminals
type of electrical connectionScrew terminal
stripped length17 mm
tightening torque7 N·m
for finely stranded conductor10... 35 mm²
for rigid conductor10... 50 mm²
finely stranded10... 35 mm²
signal designOptical, remote signaling contact
Indicator/remote signaling
product component remote signaling contactVar
switching function of the remote signaling contactsNO/NC
operating voltage of the remote signaling contacts at AC250 V
operational current of the remote signaling contacts at AC0,1 mA... 0,5 A
connection type of remote signaling contactM2
connectable conductor cross-section for remote signaling contacts for rigid conductor0,5... 1,5 mm²
connectable conductor cross-section for remote signaling contacts for finely stranded conductor0,5... 1,5 mm²
tightening torque for remote signaling contacts0,2 N·m
stripped length of the cable for remote signaling contacts6 mm
NEMA/UL - Data
type of distribution systemTN-S, TT
during operation-40... +80 °C
during storage-40... +80 °C
combustibility class according to UL 94V0
