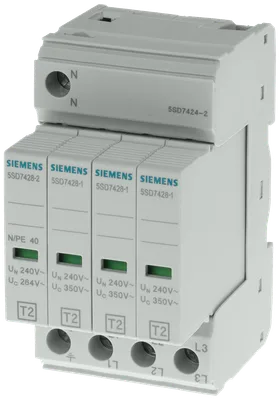

Siemens 5SD7424-2
surge arrester type, 2, Un 240/400 V, Uc 350/264 V AC, protective modules, plug-in, 3+1 circuit (TN-S, TT), width 49.2 mm
standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
Test Class I, Type 1Yok
Test Class II, Type 2Var
Test Class III, Type 3Yok
number of SPD ports1
Ürün Hakkında
surge arrester type, 2, Un 240/400 V, Uc 350/264 V AC, protective modules, plug-in, 3+1 circuit (TN-S, TT), width 49.2 mm
Siemens 5SD7424-2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
General data
standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
Test Class I, Type 1Yok
Test Class II, Type 2Var
Test Class III, Type 3Yok
number of SPD ports1
design of the productSurge arrester
design of pole3+N/PE
designation of the protective pathsL-N, N-PE
accessories3 x 5SD7428-1 + 1 x 5SD7428-2
fastening methodTH35 DIN rail
material of the enclosurePA 6,6 / PBT
size of surge arrester2,7 MW
degree of pollution2
overvoltage category according to IEC 61010-1III
protection class IP at connection all terminalsIP20
shock acceleration30 gn
vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis5 gn
relative humidity during operation5... 95 %
installation altitude at height above sea level maximum2.000 m
width49,2 mm
height90 mm
depth71,5 mm
Electrical data
type of distribution systemTN-S, TT
at AC230 V
value range of the operating frequency50 / 60 Hz
at AC maximum350 V
between N and PE at AC maximum264 V
between L and PE at AC maximum350 V
between L and (PE)N at AC maximum350 V
between L and (PE)N at (8/20) µs20 kA
between L and N at (8/20) µs40 kA
between L and PE at (8/20) µs40 kA
between L and PE at (8/20) µs20 kA
between N and PE at (8/20) µs80 kA
between N and PE at (8/20) µs40 kA
between N and PE100 A (264 V a.c.)
short-circuit rating (SCCR) at 264 V25 kA
between L and N maximum1,5 kV
between L and PE maximum1,9 kV
between N and PE maximum1,5 kV
— at rated value of discharge current maximum1,5 kV
— at 10 kA maximum1,3 kV
— at 5 kA maximum1,2 kV
— at 4 kA maximum1,1 kV
— at 2 kA maximum1 kV
— at rated value of discharge current maximum0,7 kV
— at 10 kA maximum0,7 kV
— at 5 kA maximum0,7 kV
— at 4 kA maximum0,7 kV
— at 2 kA maximum0,7 kV
between N and PE1,5 kV
response time between L and (PE)N25 ns
response time between N and PE100 ns
adjustable response factor of tripping current1,6
fuse protection type at V-shaped connection40 A AC (gG)
fuse protection type for T-connector315 A AC (gG)
Connections/ Terminals
type of electrical connectionScrew terminal
stripped length16 mm
tightening torque4,3... 4,7 N·m
for finely stranded conductor2,5... 16 mm²
for rigid conductor2,5... 25 mm²
AWG number as coded connectable conductor cross section12... 4
design of the thread of the connection screwM5
signal designOptical, remote signaling contact
Indicator/remote signaling
product component remote signaling contactYok
NEMA/UL - Data
type of distribution systemTN-S, TT
during operation-40... +80 °C
during storage-40... +80 °C
combustibility class according to UL 94V0
