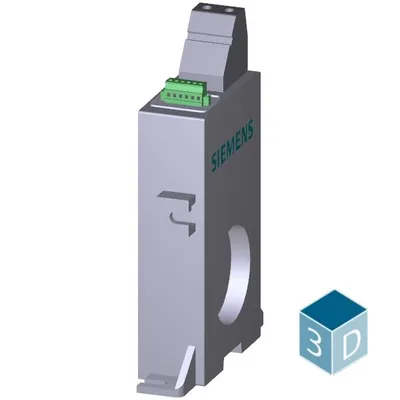

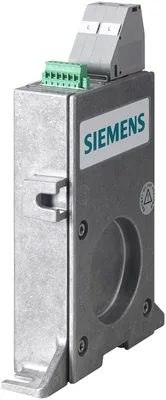

Siemens 5SD7411-2
lightning arrester tip 1, 1-pole, için 2-wire networks (L, pen), Uc 800 V AC, ile uzak sinyalizasyon, no modular installation cihaz
standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
Test Class I, Type 1Var
Test Class II, Type 2Var
Test Class III, Type 3Yok
number of SPD ports1
Ürün Hakkında
lightning arrester tip 1, 1-pole, için 2-wire networks (L, pen), Uc 800 V AC, ile uzak sinyalizasyon, no modular installation cihaz
Siemens 5SD7411-2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
General data
standardIEC 61643-11: 2011, EN 61643-11: 2012
product designationSurge protection device
Test Class I, Type 1Var
Test Class II, Type 2Var
Test Class III, Type 3Yok
number of SPD ports1
design of the productCombination surge arresters
design of pole1
designation of the protective pathsL-PE
fastening methodTH35 DIN rail
material of the enclosureAluminum, salt water-resistant
degree of pollution3
overvoltage category according to IEC 61010-1IV (600V), III (1000V)
protection class IP at connection all terminalsIP20
relative humidity during operation5... 95 %
installation altitude at height above sea level maximum4.000 m

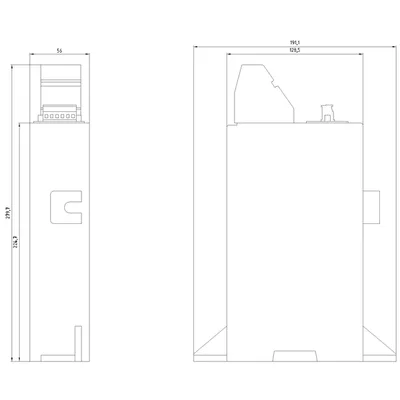

width56 mm
height191 mm
depth280 mm
Electrical data
type of distribution systemTN-C, IT
at AC690 V
value range of the operating frequency50 / 60 Hz
at AC maximum800 V
between L and PE at AC maximum800 V
apparent power consumption maximum16 mVA
discharge current 1 phase at (8/20) µs maximum100 kA
between L and PE at (8/20) µs100 kA
between L and PE at (8/20) µs35 kA
lightning current peak value between L and PE35 kA
charge of the flash between L and PE17,5 A·s
between L and PE305 kJ/?
follow current extinguishing capability50 kA
short-circuit rating (SCCR) at 264 V50 kA
protection level4,5 kV
between L and PE maximum4,5 kV
— at rated value of discharge current maximum2,7 kV
— at 10 kA maximum2,3 kV
— at 5 kA maximum2,2 kV
— at 3 kA maximum2,1 kV
between L and PE4,5 kV
Response time100 ns
adjustable response factor of tripping current1,6
fuse protection type at V-shaped connection125 A AC (gG)
fuse protection type for T-connector400 A AC (gG)
Connections/ Terminals
type of electrical connectionScrew terminal
stripped length24 mm
tightening torque8... 9 N·m
for finely stranded conductor16... 50 mm²
for rigid conductor16... 50 mm²
finely stranded16... 50 mm²
AWG number as coded connectable conductor cross section6... 1
design of the thread of the connection screwM6
signal designDefect signaling contact
Indicator/remote signaling
product component remote signaling contactVar
switching function of the remote signaling contacts2 x N/C contacts
operating voltage of the remote signaling contacts at AC30 V
operational current of the remote signaling contacts at AC1.500 mA... 1,5 A
connection type of remote signaling contactM3
connectable conductor cross-section for remote signaling contacts for rigid conductor0,2... 2,5 mm²
connectable conductor cross-section for remote signaling contacts for finely stranded conductor0,2... 2,5 mm²
AWG number as coded connectable conductor cross section for remote signaling contacts24... 12
tightening torque for remote signaling contacts0,55 N·m
stripped length of the cable for remote signaling contacts7 mm
NEMA/UL - Data
type of surge protective device (SPD) according to UL4CA
type of distribution system according to UL1
type of distribution systemTN-C, IT
designation of the protective paths according to ULL-G
between L and Ground (GND)4,37 kV
between L and Ground (GND)800 V
between L and Ground (GND) according to UL rated value20 kA
according to UL6... 1
for remote signaling contacts according to UL24... 12
during operation-40... +80 °C
during storage-40... +80 °C
installation altitude above sea level according to UL13.123 ft
combustibility class according to UL 94V2
