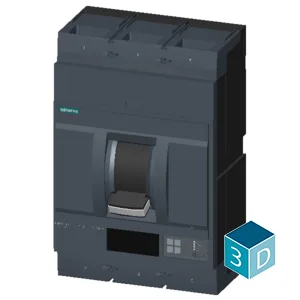

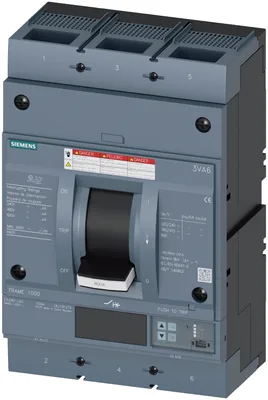

Siemens 3VA6580-5JQ32-0AA0
devre kesici 3VA6 UL çerçeve 800 kesme kapasitesi sınıf M 35 kA @ 480 V 3-pole, hat koruması ETU560, LSIG, In=800 A aşırı yük koruması Ir=315 A...800 A kısa devre koruması Isd=0.6..10x In, Ii=1.5..10x In nötr iletken koruması optionally ile ext. CT en çok 160% ground-fault koruma IG=0.2... 1xIn, tg=0.05-0.8s
product brand nameSENTRON
product designationMolded-case circuit breaker
design of the productSystem protection
design of the overcurrent releaseETU560
number of poles3
insulation voltage / rated value800 V
Ürün Hakkında
devre kesici 3VA6 UL çerçeve 800 kesme kapasitesi sınıf M 35 kA @ 480 V 3-pole, hat koruması ETU560, LSIG, In=800 A aşırı yük koruması Ir=315 A...800 A kısa devre koruması Isd=0.6..10x In, Ii=1.5..10x In nötr iletken koruması optionally ile ext. CT en çok 160% ground-fault koruma IG=0.2... 1xIn, tg=0.05-0.8s
Siemens 3VA6580-5JQ32-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded-case circuit breaker
product designation / according to UL fileMMAE
design of the productSystem protection
design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Var
design of the overcurrent releaseETU560
protection function of the overcurrent releaseLSIG
number of poles3
General technical data
insulation voltage / rated value800 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum231 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole77 W
mechanical service life (operating cycles) / typical10.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V5.800
electrical endurance (operating cycles) / at AC-1 / at 690 V4.000
electrical endurance (operating cycles) / at 480 V5.800
electrical endurance (operating cycles) / at 600 V4.000
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofVar
ground-fault monitoring versionSummation current formation L-conductor
communication functionVar
other measurement functionYok
Net Weight13,3 kg
Current
marking / according to UL 489 / 100%-rated breakerYok
at 40 °C800 A
at 45 °C800 A
at 50 °C800 A
at 55 °C776 A
at 60 °C752 A
at 65 °C708 A
at 70 °C664 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerM
at 240 V85 kA
at 415 V55 kA
at 690 V25 kA
at 240 V85 kA
at 415 V55 kA
at 690 V19 kA
at 240 V187 kA
at 415 V121 kA
at 690 V53 kA
Switching capacity according to UL 489
at 240 V100 kA
at 480 V35 kA
at 600 V25 kA
Adjustable parameters
minimum315 A
maximum800 A
minimum0,5 s
maximum25 s
minimum480 A
maximum8.000 A
minimum480 A
maximum8.000 A
minimum0,05 s
maximum0,5 s
minimum0,05 s
maximum0,5 s
minimum1.200 A
maximum8.000 A
initial value160 A
full-scale value800 A
minimum0,05 s
maximum0,8 s
minimum160 A
maximum800 A
minimum0,05 s
maximum0,8 s
minimum0 A
maximum0 A
design of the N-conductor protectionadjustable OFF; 20% to 160%
product function / grounding protectionVar

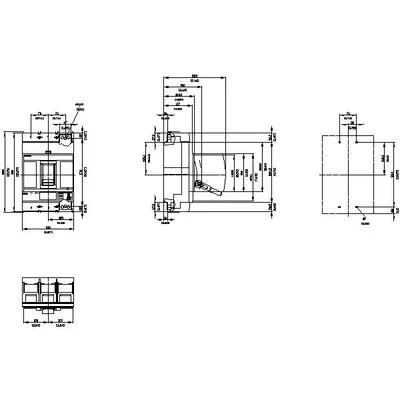

Mechanical Design
undervoltage releaseYok
voltage triggerYok
trip indicatorYok
height [in]12,91 in
height328 mm
width [in]8,27 in
width210 mm
depth [in]4,72 in
depth120 mm
Connections
arrangement of electrical connectors / for main current circuitFront connection
type of electrical connection / for main current circuitnut keeper kit on both ends
type of connectable conductor cross-sections / for flat-bar terminal connection / minimum20 x 4 mm
type of connectable conductor cross-sections / for flat-bar terminal connection / maximum50 x 28 mm
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveYok
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
reference code / according to IEC 81346-2Q
