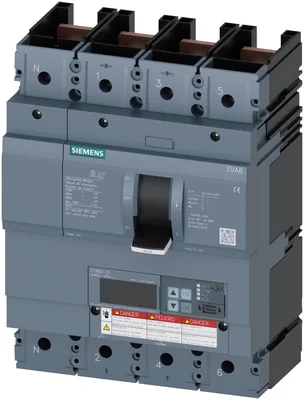

Siemens 3VA6325-8KP41-2AA0
devre kesici 3VA6 UL çerçeve 400 kesme kapasitesi sınıf L 150 kA @ 480 V 4-pole, hat koruması ETU850, LSI, In=250 A aşırı yük koruması, 100% anma Ir=100 A...250 A kısa devre koruması Isd=0.6..10x In, Ii=1.5..12x In nötr iletken koruması ayarlanabilir (OFF, en çok 160%) olmadan bağlantı
product brand nameSENTRON
product designationMolded-case circuit breaker
design of the productSystem protection
design of the overcurrent releaseETU850
number of poles4
insulation voltage / rated value800 V
Ürün Hakkında
devre kesici 3VA6 UL çerçeve 400 kesme kapasitesi sınıf L 150 kA @ 480 V 4-pole, hat koruması ETU850, LSI, In=250 A aşırı yük koruması, 100% anma Ir=100 A...250 A kısa devre koruması Isd=0.6..10x In, Ii=1.5..12x In nötr iletken koruması ayarlanabilir (OFF, en çok 160%) olmadan bağlantı
Siemens 3VA6325-8KP41-2AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded-case circuit breaker
product designation / according to UL fileLJAE
design of the productSystem protection
design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Var
design of the overcurrent releaseETU850
protection function of the overcurrent releaseLSI
number of poles4
General technical data
insulation voltage / rated value800 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum27 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole9 W
mechanical service life (operating cycles) / typical20.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V6.000
electrical endurance (operating cycles) / at AC-1 / at 690 V4.200
electrical endurance (operating cycles) / at 480 V6.000
electrical endurance (operating cycles) / at 600 V4.200
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
ground-fault monitoring versionwithout
communication functionVar
other measurement functionVar
Net Weight6,9 kg
Current
marking / according to UL 489 / 100%-rated breakerVar
at 40 °C250 A
at 45 °C250 A
at 50 °C250 A
at 55 °C250 A
at 60 °C250 A
at 65 °C250 A
at 70 °C250 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerL
at 240 V200 kA
at 415 V150 kA
at 690 V5 kA
at 240 V200 kA
at 415 V150 kA
at 690 V5 kA
at 240 V440 kA
at 415 V330 kA
at 690 V7,5 kA
Switching capacity according to UL 489
at 240 V200 kA
at 480 V150 kA
at 600 V50 kA
Adjustable parameters
minimum100 A
maximum250 A
minimum0,5 s
maximum25 s
minimum150 A
maximum2.500 A
minimum150 A
maximum2.500 A
minimum0,05 s
maximum0,5 s
minimum0,05 s
maximum0,5 s
minimum375 A
maximum3.000 A
minimum50 A
maximum400 A
design of the N-conductor protectionadjustable OFF; 20% to 160%
product function / grounding protectionYok
Mechanical Design
undervoltage releaseYok
voltage triggerYok
trip indicatorYok
height [in]9,76 in
height248 mm
width [in]7,24 in
width184 mm
depth [in]4,33 in
depth110 mm
Connections
arrangement of electrical connectors / for main current circuitWithout connection
type of electrical connection / for main current circuitWithout
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveVar
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] / total495 kg
global warming potential [CO2 eq] / during manufacturing28,7 kg
global warming potential [CO2 eq] / during operation470 kg
global warming potential [CO2 eq] / after end of life-4.07 kg
Siemens eco profile (SEP)Siemens EcoTech
reference code / according to IEC 81346-2Q
Urun bilgileri
EAN4042948859995
UPC804766313431
Urun ailesi3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Yasam dongusu durumuAktif
Gumruk tarife kodu85362090
Teslimat ve lojistik
Mense ulkeCzech Republic
Teslim suresi15 gun
Iade edilebilirEvet
Net agirlik6,9 Kg
Paket olculeri (U x G x Y)261 x 208 x 167 MM
Standart paket adedi1 adet
Minimum siparis adedi1
Tehlikeli maddeI
Ihracat kontroluAL : N / ECCN : 9N9999
Cevre ve uyumluluk
RoHS uyumuSince: 01-01-16
WEEE kategorisi5
REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)
Siemens katalogu
Urun grubu5383
Katalog kimligiLV10
Grup koduP360
Urun sinifiProducts that have been produced/purchased for specific orders, and which generally cannot
be reused in any form; a credit will not be issued when these products are returned. This product class includes, e.g. configurable versions
