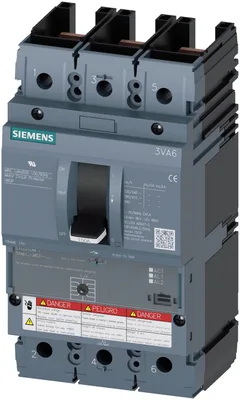

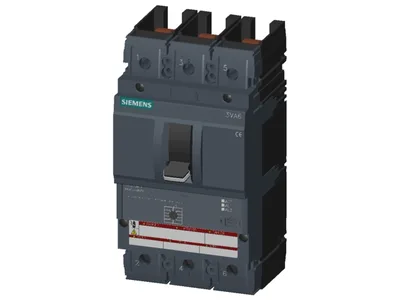

Siemens 3VA6180-1MS31-0AA0
devre kesici 3VA6 UL çerçeve 150 3-pole, starter koruma ETU310M, I, In=80A olmadan aşırı yük koruması kısa devre koruması Ii=3...15 x In olmadan bağlantı
product brand nameSENTRON
product designationMolded-case circuit breaker
design of the productStarter protection
design of the overcurrent releaseETU310M
number of poles3
insulation voltage / rated value800 V
Ürün Hakkında
devre kesici 3VA6 UL çerçeve 150 3-pole, starter koruma ETU310M, I, In=80A olmadan aşırı yük koruması kısa devre koruması Ii=3...15 x In olmadan bağlantı
Siemens 3VA6180-1MS31-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded-case circuit breaker
product designation / according to UL fileCDAR
design of the productStarter protection
design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Var
design of the overcurrent releaseETU310M
protection function of the overcurrent releaseI
number of poles3
General technical data
insulation voltage / rated value800 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum9,6 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole3,2 W
mechanical service life (operating cycles) / typical25.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V14.000
electrical endurance (operating cycles) / at AC-1 / at 690 V9.800
electrical endurance (operating cycles) / at 480 V14.000
electrical endurance (operating cycles) / at 600 V9.800
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
ground-fault monitoring versionwithout
communication functionYok
other measurement functionYok
Net Weight2,5 kg
Current
marking / according to UL 489 / 100%-rated breakerYok
at 40 °C80 A
at 45 °C80 A
at 50 °C80 A
at 55 °C80 A
at 60 °C80 A
at 65 °C80 A
at 70 °C80 A
Switching capacity according to IEC 60947
at 240 V150 kA
at 415 V110 kA
at 690 V2,5 kA
at 240 V150 kA
at 415 V110 kA
at 690 V2,5 kA
Adjustable parameters
minimum240 A
maximum1.200 A
minimum0 A
maximum0 A
product function / grounding protectionYok

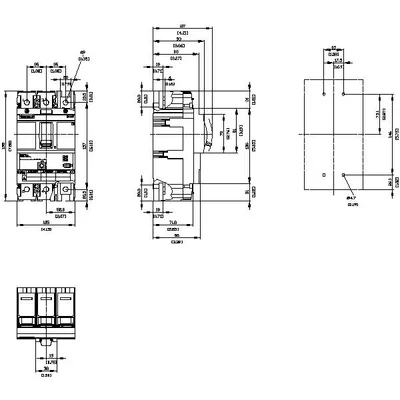

Mechanical Design
undervoltage releaseYok
voltage triggerYok
trip indicatorYok
height [in]7,8 in
height198 mm
width [in]4,13 in
width105 mm
depth [in]3,39 in
depth86 mm
Connections
arrangement of electrical connectors / for main current circuitWithout connection
type of electrical connection / for main current circuitWithout
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveVar
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] / total61,814 kg
global warming potential [CO2 eq] / during manufacturing14,6 kg
global warming potential [CO2 eq] / during operation48,9 kg
global warming potential [CO2 eq] / after end of life-2.2 kg
Siemens eco profile (SEP)Siemens EcoTech
reference code / according to IEC 81346-2Q
Urun bilgileri
EAN4042948847220
UPC804766302749
Urun ailesi3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Yasam dongusu durumuAktif
Gumruk tarife kodu85362090
Teslimat ve lojistik
Mense ulkeCzech Republic
Teslim suresi5 gun
Iade edilebilirEvet
Net agirlik2,5 Kg
Paket olculeri (U x G x Y)200 x 134 x 145 MM
Standart paket adedi1 adet
Minimum siparis adedi1
Tehlikeli maddeI
Ihracat kontroluAL : N / ECCN : 9N9999
Cevre ve uyumluluk
RoHS uyumuSince: 01-01-16
WEEE kategorisi5
REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)
SCIP numarasi788bedb0-db93-4c90-9670-e483570fc9ef
Siemens katalogu
Urun grubu5383
Katalog kimligiLV10
Grup koduP360
Urun sinifiProducts that have been produced/purchased for specific orders, and which generally cannot
be reused in any form; a credit will not be issued when these products are returned. This product class includes, e.g. configurable versions
