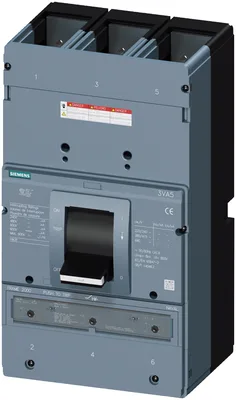

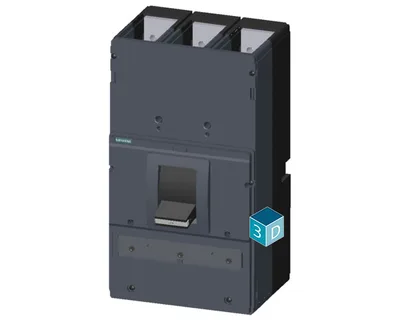

Siemens 3VA5920-7EC31-1AA0
devre kesici 3VA5 UL çerçeve 2000 kesme kapasitesi sınıf C 100kA @ 480 V 3-pole, hat koruması TM230, FTAM, In=2000A aşırı yük koruması Ir=2000A fixed short circuit koruma Ii=5 - 6 x In UL489 SB (NAVAL), 50 deg. CEL. w/o bağlantı ürün is not marked ile CE, not için use in Europe (EU) ve in IEC applications
product brand nameSENTRON
product designationMolded-case circuit breaker
design of the productSystem protection
design of the overcurrent releaseTM230
number of poles3
insulation voltage / rated value800 V
Ürün Hakkında
devre kesici 3VA5 UL çerçeve 2000 kesme kapasitesi sınıf C 100kA @ 480 V 3-pole, hat koruması TM230, FTAM, In=2000A aşırı yük koruması Ir=2000A fixed short circuit koruma Ii=5 - 6 x In UL489 SB (NAVAL), 50 deg. CEL. w/o bağlantı ürün is not marked ile CE, not için use in Europe (EU) ve in IEC applications
Siemens 3VA5920-7EC31-1AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded-case circuit breaker
product designation / according to UL fileCRAM
design of the productSystem protection
design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Var
design of the overcurrent releaseTM230
protection function of the overcurrent releaseLI
number of poles3
General technical data
insulation voltage / rated value800 V
operating voltage / at DC / rated value800 V
operating voltage / at AC / rated value600 V
power loss [W] / maximum658 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole658 W
mechanical service life (operating cycles) / typical3.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V500
electrical endurance (operating cycles) / at AC-1 / at 690 V500
electrical endurance (operating cycles) / at 480 V500
electrical endurance (operating cycles) / at 600 V500
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
communication functionYok
phase failure detectionYok
other measurement functionYok
Net Weight3,133 kg
Current
marking / according to UL 489 / 100%-rated breakerYok
at 40 °C2.000 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerC
at 240 V200 kA
at 415 V110 kA
at 690 V35 kA
at 240 V100 kA
at 415 V55 kA
at 690 V17 kA
at 240 V440 kA
at 415 V242 kA
at 690 V77 kA
design of short-circuit protectionFor switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter
Switching capacity according to UL 489
at 240 V200 kA
at 480 V100 kA
at 600 Y/347 V65 kA
at 600 V65 kA
Adjustable parameters
minimum2.000 A
maximum2.000 A
minimum1 s
maximum1 s
minimum5.000 A
maximum10.000 A
product function / grounding protectionYok
Mechanical Design
undervoltage releaseYok
trip indicatorYok
height [in]8,14 in
height207 mm
width [in]8,99 in
width228,4 mm
depth [in]16 in
depth406,4 mm
Connections
type of electrical connection / for main current circuitwithout terminals
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)silver
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
reference code / according to IEC 81346-2F
Urun bilgileri
EAN4001869602530
UPC195125331976
Urun ailesi3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Yasam dongusu durumuAktif
Gumruk tarife kodu85362099
Teslimat ve lojistik
Mense ulkeMexico
Teslim suresi20 gun
Iade edilebilirEvet
Net agirlik3,133 Kg
Paket olculeri (U x G x Y)172 x 333 x 52 MM
Standart paket adedi1 adet
Minimum siparis adedi1
Tehlikeli maddeHayir
Ihracat kontroluAL : N / ECCN : EAR99
Cevre ve uyumluluk
RoHS uyumuSince: 09-07-19
WEEE kategorisi5
REACH bilgisi2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) CAS-No. 3147-75-9 > 0,1 % (w / w)
Siemens katalogu
Urun grubu5385
Katalog kimligiLV10
Grup koduP360
Urun sinifiProducts that have been produced/purchased for specific orders, and which generally cannot
be reused in any form; a credit will not be issued when these products are returned. This product class includes, e.g. configurable versions
