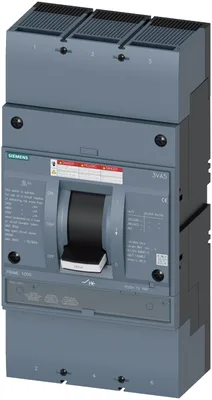

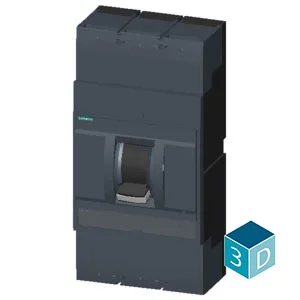

Siemens 3VA5580-0BB36-0AA0
molded kutu anahtar 3VA5 UL çerçeve 800 max short-circuit curr. rating 65kA @ 480 V 3-pole MCS110, In=800A olmadan aşırı yük koruması self koruma Ii=12 x In Al-lug, hat ve load side
product brand nameSENTRON
product designationMolded-case circuit breaker
design of the productMolded case switch
design of the overcurrent releaseMCS110
number of poles3
insulation voltage / rated value800 V
Ürün Hakkında
molded kutu anahtar 3VA5 UL çerçeve 800 max short-circuit curr. rating 65kA @ 480 V 3-pole MCS110, In=800A olmadan aşırı yük koruması self koruma Ii=12 x In Al-lug, hat ve load side
Siemens 3VA5580-0BB36-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded-case circuit breaker
product designation / according to UL fileHMAS
design of the productMolded case switch
design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Var
design of the load switch / according to UL 489 / High-Intensity-Discharge circuit breaker (HID Type)Yok
design of the load switch / according to UL 489 / Switching Duty circuit breaker (SWD Type)Yok
design of the overcurrent releaseMCS110
protection function of the overcurrent releaseI
number of poles3
General technical data
insulation voltage / rated value800 V
operating voltage / at DC / rated value750 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum210 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole70 W
mechanical service life (operating cycles) / typical10.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V5.800
electrical endurance (operating cycles) / at AC-1 / at 690 V4.000
electrical endurance (operating cycles) / at 480 V5.800
electrical endurance (operating cycles) / at 600 V4.000
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
communication functionYok
other measurement functionYok
Net Weight19 kg
Current
marking / according to UL 489 / 100%-rated breakerYok
Switching capacity according to IEC 60947
design of short-circuit protectionFor switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter
Adjustable parameters
minimum9.600 A
maximum9.600 A
minimum0 A
maximum0 A
product function / grounding protectionYok
Mechanical Design
undervoltage releaseYok
voltage triggerYok
trip indicatorYok

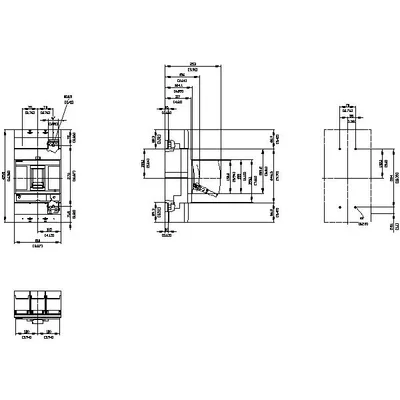

height [in]12,91 in
height328 mm
width [in]8,27 in
type of connectable conductor cross-sections / of the round conductor terminal / stranded4 x (4/0 - 500 kcmil)
width210 mm
depth [in]4,72 in
depth120 mm
Connections
arrangement of electrical connectors / for main current circuitFront connection
type of electrical connection / for main current circuitcircular conductor terminal on both sides
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveYok
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
reference code / according to IEC 81346-2Q
