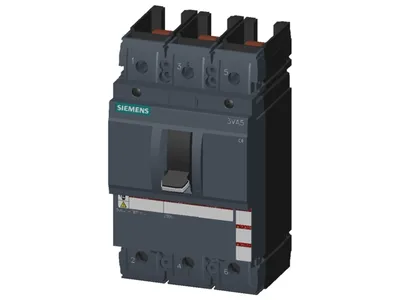

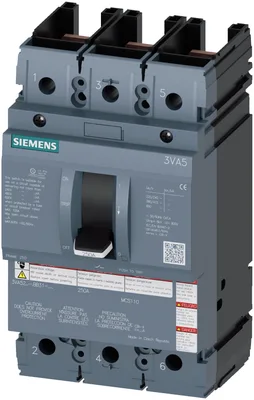

Siemens 3VA5225-0BB31-0DC0
molded kutu anahtar 3VA5 UL çerçeve 250 max. sh-circ kesme kapasitesi 65kA @ 480V 3-pole, hat koruması MCS110, In=250A olmadan aşırı yük koruması self-protection Ii=10 x In olmadan bağlantı molded kutu anahtar 3VA5 UL çerçeve 250 max. sh-circ kesme kapasitesi 65kA @ 480V 3-pole, hat koruması MCS110, In=250A olmadan aşırı yük koruması self-protection Ii=10 x In olmadan bağlantı
product brand nameSENTRON
product designationMolded-case circuit breaker
design of the productMolded case switch
design of the overcurrent releaseMCS110
number of poles3
design of the auxiliary releaseundervoltage release (UVR)
Ürün Hakkında
molded kutu anahtar 3VA5 UL çerçeve 250 max. sh-circ kesme kapasitesi 65kA @ 480V 3-pole, hat koruması MCS110, In=250A olmadan aşırı yük koruması self-protection Ii=10 x In olmadan bağlantı molded kutu anahtar 3VA5 UL çerçeve 250 max. sh-circ kesme kapasitesi 65kA @ 480V 3-pole, hat koruması MCS110, In=250A olmadan aşırı yük koruması self-protection Ii=10 x In olmadan bağlantı
Siemens 3VA5225-0BB31-0DC0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded-case circuit breaker
product designation / according to UL fileHFAS
design of the productMolded case switch
design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Var
design of the load switch / according to UL 489 / High-Intensity-Discharge circuit breaker (HID Type)Yok
design of the load switch / according to UL 489 / Switching Duty circuit breaker (SWD Type)Yok
design of the overcurrent releaseMCS110
protection function of the overcurrent releaseI
number of poles3
design of the auxiliary releaseundervoltage release (UVR)
design of the auxiliary switch2 auxiliary switches HQ
General technical data
insulation voltage / rated value800 V
operating voltage / at DC / rated value750 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum54,4 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole18,13 W
mechanical service life (operating cycles) / typical20.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V8.000
electrical endurance (operating cycles) / at AC-1 / at 690 V4.000
electrical endurance (operating cycles) / at 480 V8.000
electrical endurance (operating cycles) / at 600 V4.000
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
communication functionYok
other measurement functionYok
Net Weight2,1 kg
Current
marking / according to UL 489 / 100%-rated breakerYok
at 40 °C250 A
at 45 °C244 A
at 50 °C239 A
at 55 °C233 A
at 60 °C227 A
at 65 °C222 A
at 70 °C216 A
Switching capacity according to IEC 60947
design of short-circuit protectionFor switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter
Adjustable parameters
minimum2.500 A
maximum2.500 A
minimum0 A
maximum0 A
product function / grounding protectionYok
Mechanical Design
undervoltage releaseVar
voltage triggerYok
trip indicatorYok

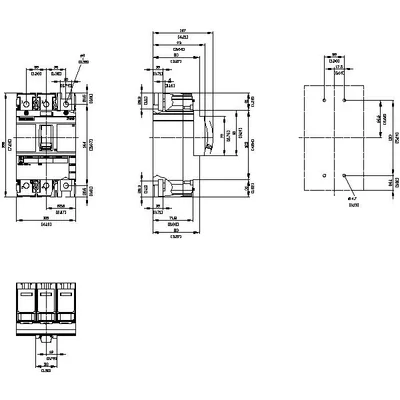

height [in]7,28 in
height185 mm
width [in]4,13 in
width105 mm
depth [in]3,27 in
depth83 mm
Connections
arrangement of electrical connectors / for main current circuitWithout connection
type of electrical connection / for main current circuitWithout
Auxiliary circuit
number of CO contacts / for auxiliary contacts2
Accessories
product extension / optional / motor driveVar
of the supplied basic switch3VA52250BB310AA0
of the integrated auxiliary switch/alarm switch3VA9988-0AA12
of the integrated auxiliary trip unit3VA9608-0BB25
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
reference code / according to IEC 81346-2Q
Urun bilgileri
EAN4042949329411
Yasam dongusu durumuAktif
Gumruk tarife kodu85362090
Teslimat ve lojistik
Mense ulkeCzech Republic
Teslim suresi10 gun
Iade edilebilirEvet
Net agirlik2,1 Kg
Paket olculeri (U x G x Y)175 x 125 x 123 MM
Standart paket adedi1 adet
Minimum siparis adedi1
Tehlikeli maddeHayir
Ihracat kontroluECCN : EAR99 / AL : N
Cevre ve uyumluluk
RoHS uyumuSince: 08-08-19
WEEE kategorisi5
REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)
SCIP numarasi6be68e77-c255-42a3-8dc9-57d4c9e4bcb1
Siemens katalogu
Urun grubu5385
Katalog kimligiLV10,1
Grup koduP360
Urun sinifiProducts that have been produced/purchased for specific orders, and which generally cannot
be reused in any form; a credit will not be issued when these products are returned. This product class includes, e.g. configurable versions
