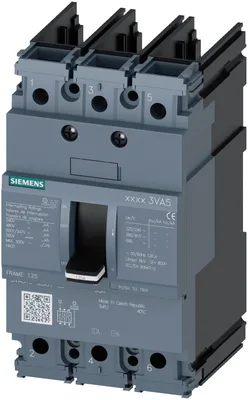

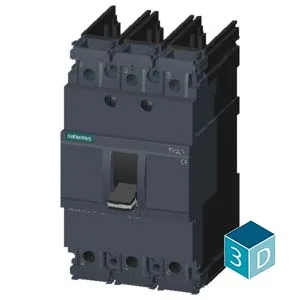

Siemens 3VA5140-5ED31-0AA0
circuit breaker 3VA5 UL Frame 125 breaking capacity class M 35 kA @ 480 V 3-pole, line protection TM210, FTFM, In=40 A overload protection Ir=40 A permanently set short-circuit protection Ii=10 x In without connection
product brand nameSENTRON
product designationMolded-case circuit breaker
design of the productSystem protection
design of the overcurrent releaseTM210
number of poles3
insulation voltage / rated value800 V
Ürün Hakkında
circuit breaker 3VA5 UL Frame 125 breaking capacity class M 35 kA @ 480 V 3-pole, line protection TM210, FTFM, In=40 A overload protection Ir=40 A permanently set short-circuit protection Ii=10 x In without connection
Siemens 3VA5140-5ED31-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded-case circuit breaker
product designation / according to UL fileMEAS
design of the productSystem protection
design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Var
design of the load switch / according to UL 489 / High-Intensity-Discharge circuit breaker (HID Type)Yok
design of the load switch / according to UL 489 / Switching Duty circuit breaker (SWD Type)Yok
design of the overcurrent releaseTM210
protection function of the overcurrent releaseLI
number of poles3
General technical data
insulation voltage / rated value800 V
operating voltage / at DC / rated value500 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum11,2 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole3,73 W
mechanical service life (operating cycles) / typical20.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V8.000
electrical endurance (operating cycles) / at AC-1 / at 690 V4.000
electrical endurance (operating cycles) / at 480 V8.000
electrical endurance (operating cycles) / at 600 V4.000
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
communication functionYok
other measurement functionYok
Net Weight941 g
Current
marking / according to UL 489 / 100%-rated breakerYok
at 40 °C40 A
at 45 °C39 A
at 50 °C39 A
at 55 °C38 A
at 60 °C37 A
at 65 °C37 A
at 70 °C36 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerM
at 240 V85 kA
at 415 V55 kA
at 690 V7 kA
at 240 V85 kA
at 415 V55 kA
at 690 V5 kA
at 240 V187 kA
at 415 V121 kA
at 690 V11,9 kA
design of short-circuit protectionFor switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter
Switching capacity according to UL 489
at 240 V85 kA
at 480 V35 kA
at 600 Y/347 V18 kA
Adjustable parameters
minimum40 A
maximum40 A
minimum1 s
maximum1 s
minimum400 A
maximum400 A
minimum0 A
maximum0 A
product function / grounding protectionYok

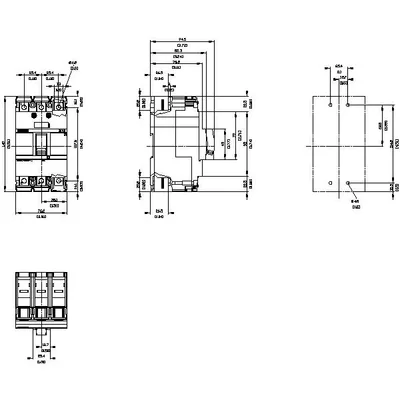

Mechanical Design
undervoltage releaseYok
voltage triggerYok
trip indicatorYok
height [in]5,51 in
height140 mm
width [in]3 in
width76,2 mm
depth [in]3,01 in
depth76,5 mm
Connections
arrangement of electrical connectors / for main current circuitWithout connection
type of electrical connection / for main current circuitWithout
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveVar
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
reference code / according to IEC 81346-2Q
