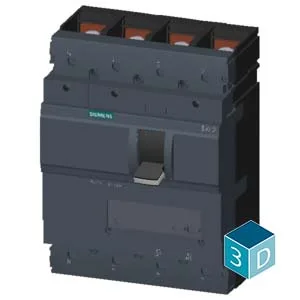

Siemens 3VA2450-7HK42-0AA0
devre kesici 3VA2 IEC gövde 630 kesme kapasitesi sınıf C Icu=110 kA @ 415 V 4-pole, hat koruması ETU340, ELISA LI, In=500 A aşırı yük koruması Ir=200 A...500 A kısa devre koruması Ii=14 x In nötr iletken koruması ayarlanabilir (OFF, 50%, 100%) nut keeper set
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productLine protection
design of the overcurrent releaseETU340
number of poles4
insulation voltage / rated value800 V
Ürün Hakkında
devre kesici 3VA2 IEC gövde 630 kesme kapasitesi sınıf C Icu=110 kA @ 415 V 4-pole, hat koruması ETU340, ELISA LI, In=500 A aşırı yük koruması Ir=200 A...500 A kısa devre koruması Ii=14 x In nötr iletken koruması ayarlanabilir (OFF, 50%, 100%) nut keeper set
Siemens 3VA2450-7HK42-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productLine protection
design of the overcurrent releaseETU340
protection function of the overcurrent releaseELISA LI
number of poles4
General technical data
insulation voltage / rated value800 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum99 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole33 W
mechanical service life (operating cycles) / typical20.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V5.000
electrical endurance (operating cycles) / at AC-1 / at 690 V3.500
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
ground-fault monitoring versionWithout
communication functionYok
other measurement functionYok
Net Weight5,7 kg
Current
short-time withstand current (Icw) / limited to 1 s6 kA
at 40 °C500 A
at 45 °C500 A
at 50 °C500 A
at 55 °C477 A
at 60 °C455 A
at 65 °C432 A
at 70 °C410 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerC
at 240 V150 kA
at 415 V110 kA
at 440 V110 kA
at 500 V85 kA
at 690 V6 kA
at 240 V150 kA
at 415 V110 kA
at 440 V110 kA
at 500 V85 kA
at 690 V6 kA
at 240 V330 kA
at 415 V242 kA
at 440 V242 kA
at 500 V187 kA
at 690 V9 kA
Adjustable parameters
product feature / for L-tripping / can be switched on/offYok
adjustable current response value current / of the L-trip / with I4t characteristic200... 500 A
minimum600 s
maximum600 s
minimum7.000 A
maximum7.000 A
minimum250 A
maximum500 A
design of the N-conductor protectionadjustable OFF; 50%; 100%
product function / grounding protectionYok

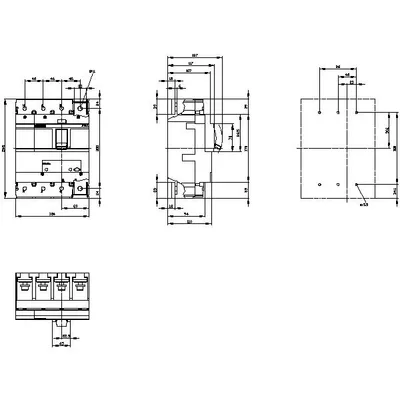

Mechanical Design
undervoltage releaseYok
voltage triggerYok
trip indicatorYok
height [in]9,76 in
height248 mm
width [in]7,24 in
width184 mm
depth [in]4,33 in
depth110 mm
Connections
arrangement of electrical connectors / for main current circuitFront terminal
type of electrical connection / for main current circuiton both sides nut keeper kit
type of connectable conductor cross-sections / for flat-bar terminal connection / minimum20 x 1 mm
type of connectable conductor cross-sections / for flat-bar terminal connection / maximum35 x 10 mm
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)silver
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveVar
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
Environmental footprint
global warming potential [CO2 eq] / total495 kg
global warming potential [CO2 eq] / during manufacturing28,7 kg
global warming potential [CO2 eq] / during operation470 kg
global warming potential [CO2 eq] / after end of life-4.07 kg
Siemens eco profile (SEP)Siemens EcoTech
reference code / according to IEC 81346-2Q
