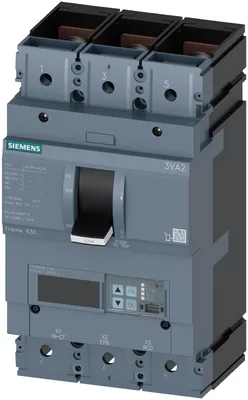

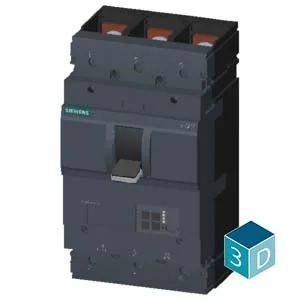

Siemens 3VA2440-5MQ32-0AA0
devre kesici 3VA2 IEC gövde 630 kesme kapasitesi sınıf M Icu=55 kA @ 415 V 3-pole, motor koruması ETU860M, LSIG, In=400 A aşırı yük koruması Ir=160 A...400 A kısa devre koruması Isd=1.2..15x In, Ii=3..15x In ground-fault koruma, can be switched off Ig=0.2...1 x In, tg=0.05-0.8s nut keeper set
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productMotor protection
design of the overcurrent releaseETU860M
number of poles3
insulation voltage / rated value800 V
Ürün Hakkında
devre kesici 3VA2 IEC gövde 630 kesme kapasitesi sınıf M Icu=55 kA @ 415 V 3-pole, motor koruması ETU860M, LSIG, In=400 A aşırı yük koruması Ir=160 A...400 A kısa devre koruması Isd=1.2..15x In, Ii=3..15x In ground-fault koruma, can be switched off Ig=0.2...1 x In, tg=0.05-0.8s nut keeper set
Siemens 3VA2440-5MQ32-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productMotor protection
design of the overcurrent releaseETU860M
protection function of the overcurrent releaseLSIG
number of poles3
General technical data
insulation voltage / rated value800 V
operating voltage / at AC / rated value690 V
operating power / at AC-3 / at 400 V160.000 W
operating power / at AC-3 / at 230 V90.000 W
power loss [W] / maximum63,5 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole21,17 W
mechanical service life (operating cycles) / typical20.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V5.000
electrical endurance (operating cycles) / at AC-1 / at 690 V3.500
electrical endurance (operating cycles) / at AC-3 / at 380/415 V3.000
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
ground-fault monitoring versionSummation current formation L-conductor
communication functionVar
phase failure detectionVar
other measurement functionVar
Net Weight4,806 kg
Current
short-time withstand current (Icw) / limited to 1 s5 kA
at 40 °C400 A
at 45 °C400 A
at 50 °C400 A
at 55 °C400 A
at 60 °C400 A
at 65 °C400 A
at 70 °C400 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerM
at 240 V85 kA
at 415 V55 kA
at 440 V55 kA
at 500 V36 kA
at 690 V6 kA
at 240 V85 kA
at 415 V55 kA
at 440 V55 kA
at 500 V36 kA
at 690 V6 kA
at 240 V187 kA
at 415 V121 kA
at 440 V121 kA
at 500 V75,6 kA
at 690 V9 kA
Adjustable parameters
product feature / for L-tripping / can be switched on/offYok
minimum160 A
maximum400 A
minimum3 s
maximum25 s
minimum480 A
maximum6.000 A
minimum0,03 s
maximum0,03 s
minimum1.200 A
maximum6.000 A
initial value80 A
full-scale value400 A
minimum0,05 s
maximum0,8 s
minimum80 A
maximum400 A
minimum0,05 s
maximum0,8 s
minimum0 A
maximum0 A
product function / grounding protectionVar
adjustable trip class (Tc CLASS)10A, 10/10E, 20/ 20E, 30/30E
minimum3 s
maximum25 s
Mechanical Design
undervoltage releaseYok
voltage triggerYok
trip indicatorYok
height [in]9,76 in
height248 mm
width [in]5,43 in
width138 mm
depth [in]4,33 in
depth110 mm
Connections
arrangement of electrical connectors / for main current circuitFront terminal
type of electrical connection / for main current circuiton both sides nut keeper kit
type of connectable conductor cross-sections / for flat-bar terminal connection / minimum20 x 1 mm
type of connectable conductor cross-sections / for flat-bar terminal connection / maximum35 x 10 mm
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)silver
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveVar
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
Environmental footprint
global warming potential [CO2 eq] / total495 kg
global warming potential [CO2 eq] / during manufacturing28,7 kg
global warming potential [CO2 eq] / during operation470 kg
global warming potential [CO2 eq] / after end of life-4.07 kg
Siemens eco profile (SEP)Siemens EcoTech
reference code / according to IEC 81346-2Q
