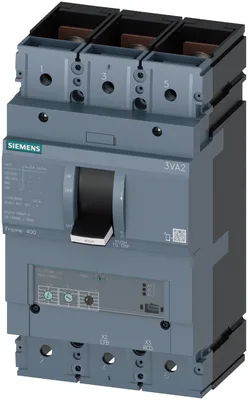

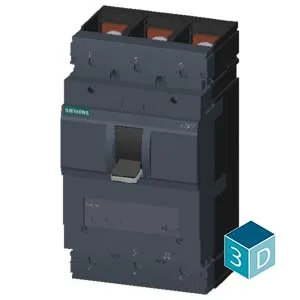

Siemens 3VA2325-5MN32-0DH0
devre kesici 3VA2 IEC gövde 400 kesme kapasitesi sınıf M Icu=55 kA @ 415 V 3-pole, motor koruması ETU350M, LSI, In=250 A aşırı yük koruması Ir=100 A...250 A kısa devre koruması Isd=3...15 x Ir, Ii=15 x In nut keeper set undervoltage açtırma (UVR) 208-230 V AC 50/60 Hz 2 yardımcı switches HQ 1 açtırma alarm anahtarı HQ
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productMotor protection
design of the overcurrent releaseETU350M
number of poles3
design of the auxiliary releaseundervoltage release (UVR)
Ürün Hakkında
devre kesici 3VA2 IEC gövde 400 kesme kapasitesi sınıf M Icu=55 kA @ 415 V 3-pole, motor koruması ETU350M, LSI, In=250 A aşırı yük koruması Ir=100 A...250 A kısa devre koruması Isd=3...15 x Ir, Ii=15 x In nut keeper set undervoltage açtırma (UVR) 208-230 V AC 50/60 Hz 2 yardımcı switches HQ 1 açtırma alarm anahtarı HQ
Siemens 3VA2325-5MN32-0DH0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productMotor protection
design of the overcurrent releaseETU350M
protection function of the overcurrent releaseLSI
number of poles3
design of the auxiliary releaseundervoltage release (UVR)
design of the auxiliary switch2 auxiliary switches + 1 trip alarm switch HQ
General technical data
insulation voltage / rated value800 V
operating voltage / at AC / rated value690 V
operating power / at AC-3 / at 400 V110.000 W
operating power / at AC-3 / at 230 V55.000 W
power loss [W] / maximum40 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole13,33 W
mechanical service life (operating cycles) / typical20.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V6.000
electrical endurance (operating cycles) / at AC-1 / at 690 V4.200
electrical endurance (operating cycles) / at AC-3 / at 380/415 V4.000
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
ground-fault monitoring versionWithout
communication functionYok
phase failure detectionVar
other measurement functionYok
Net Weight4,3 kg
Current
at 40 °C250 A
at 45 °C250 A
at 50 °C250 A
at 55 °C250 A
at 60 °C250 A
at 65 °C250 A
at 70 °C250 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerM
at 240 V85 kA
at 415 V55 kA
at 440 V55 kA
at 500 V36 kA
at 690 V5 kA
at 240 V85 kA
at 415 V55 kA
at 440 V55 kA
at 500 V36 kA
at 690 V5 kA
at 240 V187 kA
at 415 V121 kA
at 440 V121 kA
at 500 V75,6 kA
at 690 V7,5 kA
Adjustable parameters
product feature / for L-tripping / can be switched on/offYok
minimum100 A
maximum250 A
minimum4 s
maximum17 s
minimum300 A
maximum3.750 A
minimum0,03 s
maximum0,03 s
minimum3.750 A
maximum3.750 A
minimum0 A
maximum0 A
product function / grounding protectionYok
adjustable trip class (Tc CLASS)10A, 10E, 20E
minimum4 s
maximum17 s
Mechanical Design
undervoltage releaseVar
voltage triggerYok
trip indicatorVar
height [in]9,76 in
height248 mm
width [in]5,43 in
width138 mm
depth [in]4,33 in
depth110 mm
Connections
arrangement of electrical connectors / for main current circuitFront terminal
type of electrical connection / for main current circuiton both sides nut keeper kit
type of connectable conductor cross-sections / for flat-bar terminal connection / minimum20 x 1 mm
type of connectable conductor cross-sections / for flat-bar terminal connection / maximum35 x 10 mm
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)silver
Auxiliary circuit
number of CO contacts / for auxiliary contacts3
Accessories
product extension / optional / motor driveVar
of the supplied basic switch3VA2325-5MN32-0AA0
of the integrated auxiliary switch/alarm switch3VA9988-0AA12
of the integrated auxiliary switch/alarm switch3VA9988-0AB12
of the integrated auxiliary trip unit3VA9608-0BB25
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
reference code / according to IEC 81346-2Q
