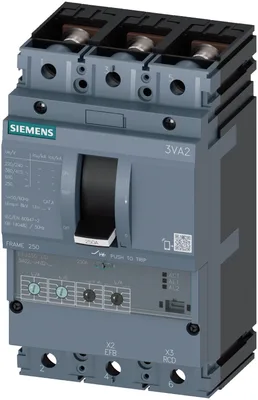

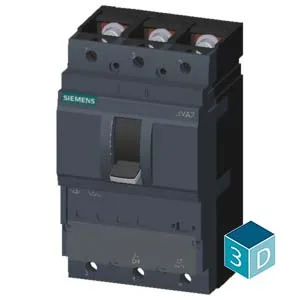

Siemens 3VA2225-7HN32-0CA0
devre kesici 3VA2 IEC gövde 250 kesme kapasitesi sınıf C Icu=110 kA @ 415 V 3-pole, hat koruması ETU350, LSI, In=250 A aşırı yük koruması Ir=100 A...250 A kısa devre koruması Isd=1.5...10 x Ir, Ii=10 x In nut keeper set undervoltage açtırma (UVR) 120-127 V AC 50/60 Hz
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productLine protection
design of the overcurrent releaseETU350
number of poles3
design of the auxiliary releaseundervoltage release (UVR)
Ürün Hakkında
devre kesici 3VA2 IEC gövde 250 kesme kapasitesi sınıf C Icu=110 kA @ 415 V 3-pole, hat koruması ETU350, LSI, In=250 A aşırı yük koruması Ir=100 A...250 A kısa devre koruması Isd=1.5...10 x Ir, Ii=10 x In nut keeper set undervoltage açtırma (UVR) 120-127 V AC 50/60 Hz
Siemens 3VA2225-7HN32-0CA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productLine protection
design of the overcurrent releaseETU350
protection function of the overcurrent releaseLSI
number of poles3
design of the auxiliary releaseundervoltage release (UVR)
design of the auxiliary switchWithout
General technical data
insulation voltage / rated value800 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum50,5 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole16,83 W
mechanical service life (operating cycles) / typical25.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V12.000
electrical endurance (operating cycles) / at AC-1 / at 690 V8.400
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
ground-fault monitoring versionWithout
communication functionYok
other measurement functionYok
Net Weight2,51 kg
Current
at 40 °C250 A
at 45 °C250 A
at 50 °C250 A
at 55 °C241 A
at 60 °C232 A
at 65 °C222 A
at 70 °C213 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerC
at 240 V150 kA
at 415 V110 kA
at 440 V110 kA
at 500 V85 kA
at 690 V3 kA
at 240 V150 kA
at 415 V110 kA
at 440 V110 kA
at 500 V85 kA
at 690 V3 kA
at 240 V330 kA
at 415 V242 kA
at 440 V242 kA
at 500 V187 kA
at 690 V4,5 kA
Adjustable parameters
product feature / for L-tripping / can be switched on/offYok
minimum100 A
maximum250 A
minimum0,5 s
maximum15 s
minimum150 A
maximum2.500 A
minimum0,0001 s
maximum0,4 s
minimum2.500 A
maximum2.500 A
minimum0 A
maximum0 A
product function / grounding protectionYok

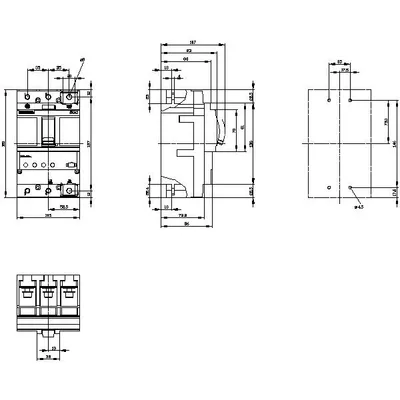

Mechanical Design
undervoltage releaseVar
voltage triggerYok
trip indicatorYok
height [in]7,13 in
height181 mm
width [in]4,13 in
width105 mm
depth [in]3,39 in
depth86 mm
Connections
arrangement of electrical connectors / for main current circuitFront terminal
type of electrical connection / for main current circuiton both sides nut keeper kit
type of connectable conductor cross-sections / for flat-bar terminal connection / minimum13 x 1 mm
type of connectable conductor cross-sections / for flat-bar terminal connection / maximum25 x 8 mm
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)tin
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveVar
of the supplied basic switch3VA2225-7HN32-0AA0
of the integrated auxiliary trip unit3VA9608-0BB24
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
reference code / according to IEC 81346-2Q
