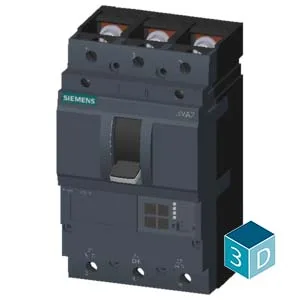

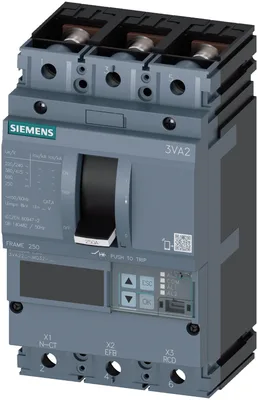

Siemens 3VA2216-7MQ32-0AA0
devre kesici 3VA2 IEC gövde 250 kesme kapasitesi sınıf C Icu=110 kA @ 415 V 3-pole, motor koruması ETU860M, LSIG, In=160 A aşırı yük koruması Ir=63 A...160 A kısa devre koruması Isd=1.2..15x In, Ii=3..15x In ground-fault koruma, can be switched off Ig=0.2...1 x In, tg=0.05-0.8s nut keeper set
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productMotor protection
design of the overcurrent releaseETU860M
number of poles3
insulation voltage / rated value800 V
Ürün Hakkında
devre kesici 3VA2 IEC gövde 250 kesme kapasitesi sınıf C Icu=110 kA @ 415 V 3-pole, motor koruması ETU860M, LSIG, In=160 A aşırı yük koruması Ir=63 A...160 A kısa devre koruması Isd=1.2..15x In, Ii=3..15x In ground-fault koruma, can be switched off Ig=0.2...1 x In, tg=0.05-0.8s nut keeper set
Siemens 3VA2216-7MQ32-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productMotor protection
design of the overcurrent releaseETU860M
protection function of the overcurrent releaseLSIG
number of poles3
General technical data
insulation voltage / rated value800 V
operating voltage / at AC / rated value690 V
operating power / at AC-3 / at 400 V75.000 W
operating power / at AC-3 / at 230 V45.000 W
power loss [W] / maximum19,7 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole6,57 W
mechanical service life (operating cycles) / typical25.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V12.000
electrical endurance (operating cycles) / at AC-1 / at 690 V8.400
electrical endurance (operating cycles) / at AC-3 / at 380/415 V6.500
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
ground-fault monitoring versionSummation current formation L-conductor
communication functionVar
phase failure detectionVar
other measurement functionVar
Net Weight2,269 kg
Current
at 40 °C160 A
at 45 °C160 A
at 50 °C160 A
at 55 °C160 A
at 60 °C160 A
at 65 °C160 A
at 70 °C160 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerC
at 240 V150 kA
at 415 V110 kA
at 440 V110 kA
at 500 V85 kA
at 690 V3 kA
at 240 V150 kA
at 415 V110 kA
at 440 V110 kA
at 500 V85 kA
at 690 V3 kA
at 240 V330 kA
at 415 V242 kA
at 440 V242 kA
at 500 V187 kA
at 690 V4,5 kA
Adjustable parameters
product feature / for L-tripping / can be switched on/offYok
minimum64 A
maximum160 A
minimum3 s
maximum20 s
minimum192 A
maximum2.400 A
minimum0,03 s
maximum0,03 s
minimum480 A
maximum2.400 A
initial value32 A
full-scale value160 A
minimum0,05 s
maximum0,8 s
minimum32 A
maximum160 A
minimum0,05 s
maximum0,8 s
minimum0 A
maximum0 A
product function / grounding protectionVar
adjustable trip class (Tc CLASS)10A, 10/10E, 20/ 20E, 30
minimum3 s
maximum20 s

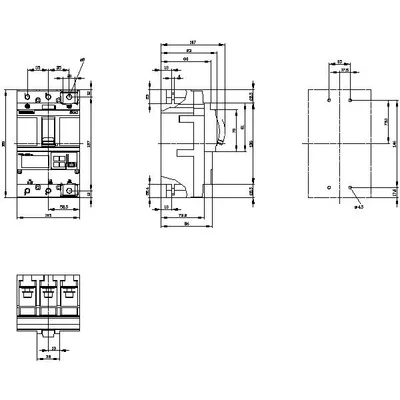

Mechanical Design
undervoltage releaseYok
voltage triggerYok
trip indicatorYok
height [in]7,13 in
height181 mm
width [in]4,13 in
width105 mm
depth [in]3,39 in
depth86 mm
Connections
arrangement of electrical connectors / for main current circuitFront terminal
type of electrical connection / for main current circuiton both sides nut keeper kit
type of connectable conductor cross-sections / for flat-bar terminal connection / minimum13 x 1 mm
type of connectable conductor cross-sections / for flat-bar terminal connection / maximum25 x 8 mm
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)tin
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveVar
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] / total251 kg
global warming potential [CO2 eq] / during manufacturing20,4 kg
global warming potential [CO2 eq] / during operation235 kg
global warming potential [CO2 eq] / after end of life-3.75 kg
Siemens eco profile (SEP)Siemens EcoTech
reference code / according to IEC 81346-2Q
