Siemens 3VA2010-6SP36-0AA0

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

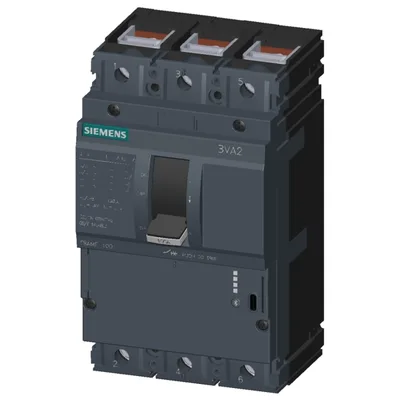

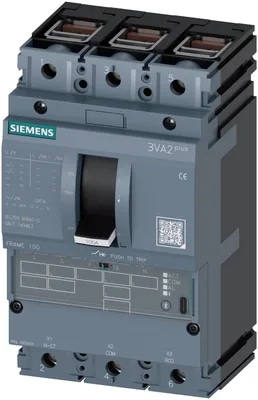

Siemens 3VA2010-6SP36-0AA0

devre kesici 3VA2 plus IEC gövde 100 kesme kapasitesi sınıf H Icu=85 kA @ 415 V 3-pole, hat koruması ETU750, LSI, In=100 A Bluetooth, kablosuz communication, measurement fonksiyon aşırı yük koruması Ir=20 A... 100 A kısa devre koruması Isd=0.6..10x In, Ii=1.5..12x In nötr iletken koruması optionally ile ext. CT; en çok 160% condition monitoring klemens bağlantı

SiemensMFR # 3VA2010-6SP36-0AA0SKU # YLSZNZUHW8ITNPQ
product brand nameSENTRON
product designationMolded case circuit breaker
design of the overcurrent releaseETU750
number of poles3
insulation voltage / rated value800 V
operating voltage / at AC / rated value690 V
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

devre kesici 3VA2 plus IEC gövde 100 kesme kapasitesi sınıf H Icu=85 kA @ 415 V 3-pole, hat koruması ETU750, LSI, In=100 A Bluetooth, kablosuz communication, measurement fonksiyon aşırı yük koruması Ir=20 A... 100 A kısa devre koruması Isd=0.6..10x In, Ii=1.5..12x In nötr iletken koruması optionally ile ext. CT; en çok 160% condition monitoring klemens bağlantı

Siemens 3VA2010-6SP36-0AA0

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Model
product brand nameSENTRON
product designationMolded case circuit breaker
design of the overcurrent releaseETU750
protection function of the overcurrent releaseLSI
number of poles3
General technical data
insulation voltage / rated value800 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum13,5 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole4,5 W
mechanical service life (operating cycles) / typical25.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V15.000
electrical endurance (operating cycles) / at AC-1 / at 690 V10.500
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofVar
ground-fault monitoring versionwithout
communication functionVar
other measurement functionVar
Net Weight2,3 kg
Current
at 40 °C100 A
at 45 °C100 A
at 50 °C100 A
at 55 °C100 A
at 60 °C100 A
at 65 °C100 A
at 70 °C100 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerH
at 240 V110 kA
at 415 V85 kA
at 440 V85 kA
at 500 V55 kA
at 690 V2 kA
at 240 V110 kA
at 415 V85 kA
at 440 V85 kA
at 500 V55 kA
at 690 V2 kA
at 240 V242 kA
at 415 V187 kA
at 440 V187 kA
at 500 V121 kA
at 690 V2,8 kA
Adjustable parameters
design of the N-conductor protectionadjustable OFF; 20% to 160%
product function / grounding protectionYok
Mechanical Design
undervoltage releaseYok
voltage triggerYok
trip indicatorYok

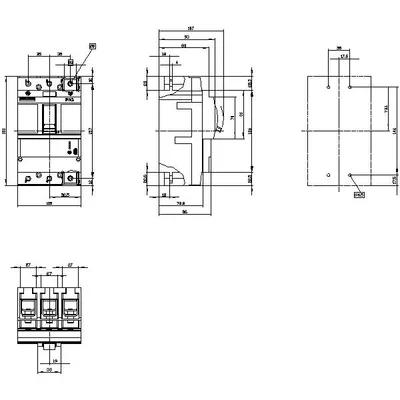

height [in]7,13 in
height181 mm
width [in]4,13 in
type of connectable conductor cross-sections / of the round conductor terminal / stranded1 x (6 - 120 mm²)
width105 mm
depth [in]3,39 in
depth86 mm
Connections
arrangement of electrical connectors / for main current circuitfront connection
type of electrical connection / for main current circuitbox terminal on both sides
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)tin
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)Tin
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveVar
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
reference code / according to IEC 81346-2Q
Urun bilgileri
EAN4047624485772
Urun ailesi3VA2 plus Molded Case Circuit Breakers
Yasam dongusu durumuQ.P.M280
Gumruk tarife kodu85362090
Teslimat ve lojistik
Mense ulkeCzech Republic
Teslim suresi10 gun
Iade edilebilirEvet
Net agirlik2,3 Kg
Paket olculeri (U x G x Y)242 x 148 x 159 MM
Standart paket adedi1 adet
Minimum siparis adedi1
Tehlikeli maddeEvet
Ihracat kontroluAL : N / ECCN : EAR99
Cevre ve uyumluluk
RoHS uyumuSince: 20-11-23
WEEE kategorisi5
REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)
Siemens katalogu
Urun grubuX0LU
Katalog kimligiLV10
Grup koduP360
Urun sinifiRestricted, and/or can only be reused over the medium-term
