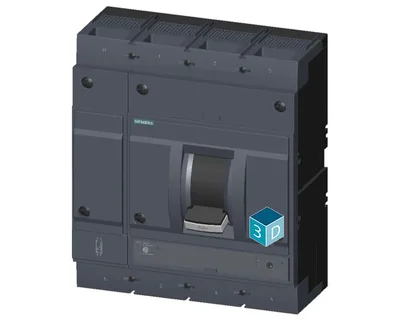

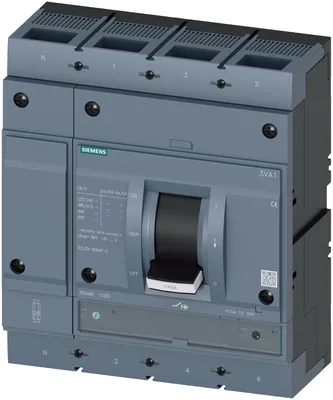

Siemens 3VA1563-7EF42-0AA0

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 3VA1563-7EF42-0AA0

“Attention: if used ile Plug-In, please state “ile Plug-In” in N-text (COI3-text) in purchase order.” 1000 kesme kapasitesi sınıf C Icu=110 kA @ 415 V 4-pole, hat koruması TM240, ATAM, In=630 A aşırı yük koruması Ir=440 A...630 A kısa devre koruması Ii=5...10 x In N iletken unprotected nut keeper set

SiemensMFR # 3VA1563-7EF42-0AA0SKU # YLSPOADHKICKGLJ
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productLine protection
design of the overcurrent releaseTM240
number of poles4
insulation voltage / rated value800 V
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

“Attention: if used ile Plug-In, please state “ile Plug-In” in N-text (COI3-text) in purchase order.” 1000 kesme kapasitesi sınıf C Icu=110 kA @ 415 V 4-pole, hat koruması TM240, ATAM, In=630 A aşırı yük koruması Ir=440 A...630 A kısa devre koruması Ii=5...10 x In N iletken unprotected nut keeper set

Siemens 3VA1563-7EF42-0AA0

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Model
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productLine protection
design of the overcurrent releaseTM240
protection function of the overcurrent releaseLI
number of poles4
General technical data
insulation voltage / rated value800 V
operating voltage / at DC / rated value1.000 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum180 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole60 W
mechanical service life (operating cycles) / typical10.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V4.600
electrical endurance (operating cycles) / at AC-1 / at 690 V3.200
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
ground-fault monitoring versionWithout
communication functionYok
other measurement functionYok
Net Weight12,921 kg
Current
at 40 °C630 A
at 45 °C630 A
at 50 °C630 A
at 55 °C618 A
at 60 °C607 A
at 65 °C595 A
at 70 °C583 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerC
at 240 V200 kA
at 415 V110 kA
at 440 V110 kA
at 500 V70 kA
at 690 V35 kA
at 240 V150 kA
at 415 V85 kA
at 440 V70 kA
at 500 V65 kA
at 690 V19 kA
at 240 V440 kA
at 415 V242 kA
at 440 V242 kA
at 500 V154 kA
at 690 V73,5 kA
design of short-circuit protectionFor switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter
Adjustable parameters
product feature / for L-tripping / can be switched on/offYok
minimum441 A
maximum630 A
minimum1 s
maximum1 s
minimum3.150 A
maximum6.300 A
minimum0 A
maximum0 A
design of the N-conductor protectionwithout
product function / grounding protectionYok
Mechanical Design
undervoltage releaseYok
voltage triggerYok
trip indicatorYok

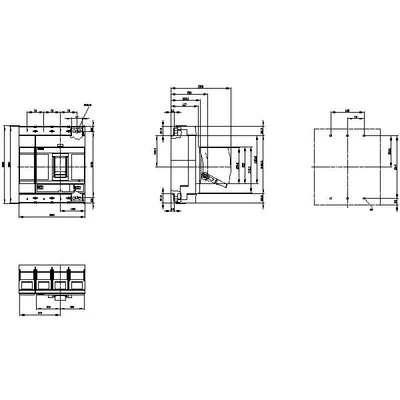

height [in]12,6 in
height320 mm
width [in]11,02 in
width280 mm
depth [in]4,72 in
depth120 mm
Connections
arrangement of electrical connectors / for main current circuitFront terminal
type of electrical connection / for main current circuitnut keeper kit on both ends
type of connectable conductor cross-sections / for flat-bar terminal connection / minimum20 x 4 mm
type of connectable conductor cross-sections / for flat-bar terminal connection / maximum50 x 28 mm
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)Silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)Silver
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveYok
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
reference code / according to IEC 81346-2Q
Urun bilgileri
EAN4042948835517
UPC195125111110
Urun ailesi3VA Molded Case Circuit Breakers up to 1600 A, IEC
Yasam dongusu durumuAktif
Gumruk tarife kodu85362090
Teslimat ve lojistik
Mense ulkeMexico
Teslim suresi5 gun
Iade edilebilirEvet
Net agirlik12,921 Kg
Paket olculeri (U x G x Y)365 x 318 x 178 MM
Standart paket adedi1 adet
Minimum siparis adedi1
Tehlikeli maddeHayir
Ihracat kontroluAL : N / ECCN : 9N9999
Cevre ve uyumluluk
RoHS uyumuSince: 01-01-16
WEEE kategorisi5
REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)
Siemens katalogu
Urun grubu5375
Katalog kimligiLV10
Grup koduP360
Urun sinifiProducts that have been produced/purchased for specific orders, and which generally cannot be reused in any form; a credit will not be issued when these products are returned. This product class includes, e.g. configurable versions
