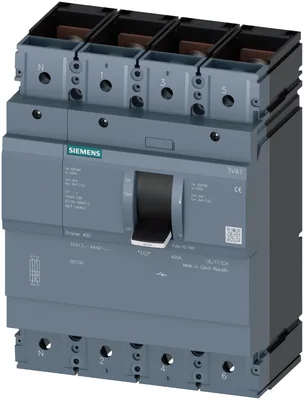

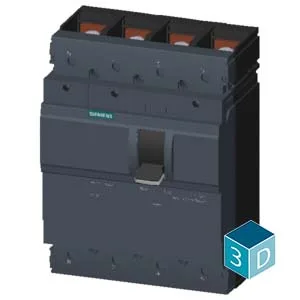

Siemens 3VA1340-1AA42-0AA0
anahtar disconnector 3VA1 IEC gövde 400 4-pole SD100, In=400A olmadan aşırı yük koruması w/o kısa devre koruması nut keeper set
product brand nameSENTRON
product designationMolded case circuit breaker
product versionGeneral applications
design of the productin MCCB design
number of poles4
design of the auxiliary releasewithout
Ürün Hakkında
anahtar disconnector 3VA1 IEC gövde 400 4-pole SD100, In=400A olmadan aşırı yük koruması w/o kısa devre koruması nut keeper set
Siemens 3VA1340-1AA42-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded case circuit breaker
product versionGeneral applications
design of the productin MCCB design
number of poles4
design of the auxiliary releasewithout
design of the auxiliary switchWithout
General technical data
insulation voltage / rated value800 V
operating voltage / at DC / rated value1.000 V
operating voltage / at AC / rated value690 V
surge voltage resistance / rated value8 kV
power loss [W] / maximum191 W
mechanical service life (operating cycles) / typical20.000
type of devicefixed mounting
suitability for use / switch disconnectorVar
suitability for use / main switchVar
suitability for use / EMERGENCY OFF switchVar
suitability for use / maintenance/repair switchVar
product function / communication functionYok
Net Weight6,216 kg
Current
short-time withstand current (Icw) / at AC / limited to 0.5 s / rated value6 kA
operational current / rated value400 A
at 40 °C400 A
at 45 °C400 A
at 50 °C400 A
at 55 °C384 A
at 60 °C370 A
at 65 °C354 A
at 70 °C340 A
at 400 V / maximum permissible3.820.000 A²·s
at 500 V / maximum permissible4.280.000 A²·s
at 690 V / maximum permissible1.780.000 A²·s
at 400 V / maximum permissible47 kA
at 500 V / maximum permissible41 kA
at 690 V / maximum permissible17 kA
Switching capacity according to IEC 60947
at 690 V / by molded case circuit breaker / maximum17 kA
at 415 V / by molded case circuit breaker / maximum242 kA
conditional short-circuit current (Iq) / rated value6.000 A
at 690 V / by molded case circuit breaker / rated value10 kA
at 240 V / by LV HRC fuse link 3NA, 3ND (sizes 00/000, 1, 2, type gL/gG) / rated value200 kA
at 415 V / by LV HRC fuse link 3NA, 3ND (sizes 00/000, 1, 2, type gL/gG) / rated value110 kA
Mechanical Design
overvoltage categoryIII
fastening methodscrew fixing
fastening method / 4-hole front mountingVar
fastening method / front mounting with central attachmentYok
fastening method / rail mountingYok
undervoltage releaseYok
voltage triggerYok
undervoltage release with leading contactYok
trip indicatorYok
product feature / interlockYok

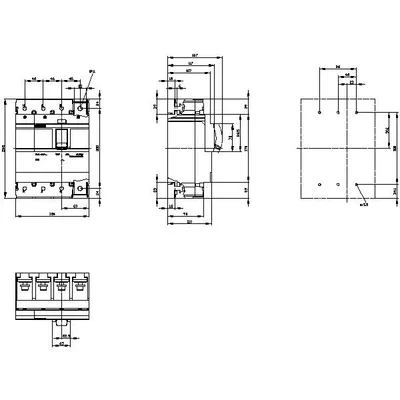

height248 mm
width184 mm
depth110 mm
display version / for switch position indicatorHandle switch position On, Trip, Off
design of the actuating elementtoggle handle
type of the driving mechanism / motor driveYok
Connections
arrangement of electrical connectors / for main current circuitFront terminal
type of electrical connection / for main current circuitbusbar connection
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)Silver
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
number of NC contacts / for auxiliary contacts0
number of NO contacts / for auxiliary contacts0
Accessories
product extension / auxiliary switchYok
product extension / optional / motor driveVar
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
reference code / according to IEC 81346-2Q
Ürün bilgileri
EAN4042948800416
UPC804766889325
Ürün ailesiSENTRON 3VA Switch Disconnectors in MCCB design
Yaşam döngüsü durumuAktif
Gümrük tarife kodu85362090
Teslimat ve lojistik
Menşe ülkeCzech Republic
Teslim süresi5 gün
İade edilebilirEvet
Net ağırlık6,216 Kg
Paket ölçüleri (U x G x Y)261 x 208 x 170 MM
Standart paket adedi1 adet
Minimum sipariş adedi1
Tehlikeli maddeHayır
İhracat kontrolüAL : N / ECCN : 9N9999
Çevre ve uyumluluk
RoHS uyumuSince: 01-06-12
WEEE kategorisi5
REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)
Siemens kataloğu
Ürün grubu5375
Katalog kimliğiLV10
Grup koduP360
Ürün sınıfıProducts that have been produced/purchased for specific orders, and which generally cannot
be reused in any form; a credit will not be issued when these products are returned. This product class includes, e.g. configurable versions
