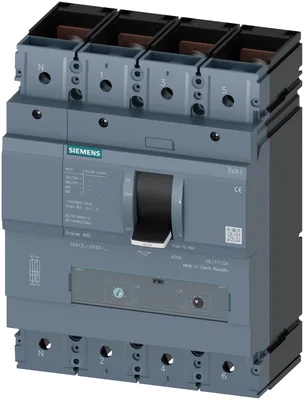

Siemens 3VA1332-4EF42-0AA0
devre kesici 3VA1 IEC gövde 400 kesme kapasitesi sınıf S Icu=36 kA @ 415 V 4-pole, hat koruması TM240, ATAM, In=320 A aşırı yük koruması Ir=224 A...320 A kısa devre koruması Ii=5...10 x In N iletken unprotected nut keeper set
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productLine protection
design of the overcurrent releaseTM240
number of poles4
insulation voltage / rated value800 V
Ürün Hakkında
devre kesici 3VA1 IEC gövde 400 kesme kapasitesi sınıf S Icu=36 kA @ 415 V 4-pole, hat koruması TM240, ATAM, In=320 A aşırı yük koruması Ir=224 A...320 A kısa devre koruması Ii=5...10 x In N iletken unprotected nut keeper set
Siemens 3VA1332-4EF42-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Model
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productLine protection
design of the overcurrent releaseTM240
protection function of the overcurrent releaseLI
number of poles4
General technical data
insulation voltage / rated value800 V
operating voltage / at DC / rated value600 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum80,1 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole26,7 W
mechanical service life (operating cycles) / typical20.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V6.000
electrical endurance (operating cycles) / at AC-1 / at 690 V4.200
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
ground-fault monitoring versionWithout
communication functionYok
other measurement functionYok
Net Weight6,301 kg
Current
at 40 °C320 A
at 45 °C320 A
at 50 °C320 A
at 55 °C313 A
at 60 °C306 A
at 65 °C299 A
at 70 °C292 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerS
at 240 V55 kA
at 415 V36 kA
at 440 V36 kA
at 500 V25 kA
at 690 V7 kA
at 240 V55 kA
at 415 V36 kA
at 440 V25 kA
at 500 V25 kA
at 690 V5 kA
at 240 V121 kA
at 415 V75,6 kA
at 440 V75,6 kA
at 500 V52,5 kA
at 690 V11,9 kA
design of short-circuit protectionFor switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter
Adjustable parameters
product feature / for L-tripping / can be switched on/offYok
minimum224 A
maximum320 A
minimum1 s
maximum1 s
minimum1.600 A
maximum3.200 A
minimum0 A
maximum0 A
design of the N-conductor protectionwithout
product function / grounding protectionYok
Mechanical Design
undervoltage releaseYok
voltage triggerYok
trip indicatorYok
height [in]9,76 in
height248 mm
width [in]7,24 in
width184 mm
depth [in]4,33 in
depth110 mm
Connections
arrangement of electrical connectors / for main current circuitFront terminal
type of electrical connection / for main current circuitnut keeper kit on both ends
type of connectable conductor cross-sections / for flat-bar terminal connection / minimum20 x 1 mm
type of connectable conductor cross-sections / for flat-bar terminal connection / maximum35 x 10 mm
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)Silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)Silver
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveVar
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
Environmental footprint
global warming potential [CO2 eq] / total473 kg
global warming potential [CO2 eq] / during manufacturing23,9 kg
global warming potential [CO2 eq] / during operation450 kg
global warming potential [CO2 eq] / after end of life-2.9 kg
reference code / according to IEC 81346-2Q
Urun bilgileri
EAN4042948809563
UPC804766889035
Urun ailesi3VA Molded Case Circuit Breakers up to 1600 A, IEC
Yasam dongusu durumuAktif
Gumruk tarife kodu85362090
Teslimat ve lojistik
Mense ulkeCzech Republic
Teslim suresi5 gun
Iade edilebilirEvet
Net agirlik6,301 Kg
Paket olculeri (U x G x Y)261 x 208 x 170 MM
Standart paket adedi1 adet
Minimum siparis adedi1
Tehlikeli maddeHayir
Ihracat kontroluAL : N / ECCN : N
Cevre ve uyumluluk
RoHS uyumuSince: 01-06-12
WEEE kategorisi5
REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)
Siemens katalogu
Urun grubu5375
Katalog kimligiLV10
Grup koduP360
Urun sinifiProducts that have been produced/purchased for specific orders, and which generally cannot
be reused in any form; a credit will not be issued when these products are returned. This product class includes, e.g. configurable versions
Aksesuarlar 112
Siemens 3VA1332-4EF42-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3VA9988-0AA12 | Aksesuar · Accessories | |
| 3VA9484-0JC23 | Aksesuar · Accessories | |
| 3VA9481-0WK40 | Aksesuar · Accessories | |
| 3VA9481-0WJ40 | Aksesuar · Accessories | |
| 3VA9467-0EK27 | Aksesuar · Accessories | |
| 3VA9384-0JF60 | Aksesuar · Accessories | |
| 3VA9324-0KP00 | Aksesuar · Accessories | |
| 3VA9324-0KD00 | Aksesuar · Accessories | |
| 8US1313-4AM04 | Aksesuar | |
| 3VA9487-0GC15 | Aksesuar · Accessories | |
| 3VA9487-0GC11 | Aksesuar · Accessories | |
| 3VA9908-0BD12 | Aksesuar · Accessories | |
| 3VA9988-0BL10 | Aksesuar · Accessories | |
| 3VA9087-0SX10 | Aksesuar · Accessories | |
| 3VA9404-0JJ23 | Aksesuar · Accessories | |
| 3VA9484-0QD00 | Aksesuar · Accessories | |
| 3VA9484-0QC00 | Aksesuar · Accessories | |
| 3VA9484-0QB00 | Aksesuar · Accessories | |
| 3VA9484-0JA13 | Aksesuar · Accessories | |
| 3VA9481-0WF40 | Aksesuar · Accessories | |
| 3VA9481-0WD40 | Aksesuar · Accessories | |
| 3VA9404-0QG00 | Aksesuar · Accessories | |
| 3VA9404-0QF00 | Aksesuar · Accessories | |
| 3VA9404-0QE00 | Aksesuar · Accessories | |
| 3VA9404-0JC23 | Aksesuar · Accessories | |
| 3VA9401-0WG40 | Aksesuar · Accessories | |
| 3VA9384-0SB10 | Aksesuar · Accessories | |
| 3VA9384-0JG13 | Aksesuar · Accessories | |
| 3VA9384-0JB13 | Aksesuar · Accessories | |
| 3VA9908-0BB10 | Aksesuar · Accessories | |
| 3VA9908-0BB11 | Aksesuar · Accessories | |
| 3VA9908-0BB12 | Aksesuar · Accessories | |
| 3VA9908-0BB13 | Aksesuar · Accessories | |
| 3VA9467-0HC30 | Aksesuar · Accessories | |
| 3VA9467-0HC20 | Aksesuar · Accessories | |
| 3VA9467-0HC10 | Aksesuar · Accessories | |
| 3VA9467-0GX20 | Aksesuar · Accessories | |
| 3VA9467-0GX10 | Aksesuar · Accessories | |
| 3VA9467-0GX01 | Aksesuar · Accessories | |
| 3VA9988-0BL33 | Aksesuar · Accessories | |
| 3VA9988-0BL32 | Aksesuar · Accessories | |
| 3VA9364-0SB20 | Aksesuar · Accessories | |
| 3VA9988-0BL31 | Aksesuar · Accessories | |
| 3VA9988-0BL20 | Aksesuar · Accessories | |
| 3VA9908-0BD13 | Aksesuar · Accessories | |
| 3VA9908-0BD11 | Aksesuar · Accessories | |
| 3VA9908-0BB27 | Aksesuar · Accessories | |
| 3VA9908-0BB26 | Aksesuar · Accessories | |
| 3VA9908-0BB25 | Aksesuar · Accessories | |
| 3VA9908-0BB24 | Aksesuar · Accessories | |
| 3VA9908-0BB23 | Aksesuar · Accessories | |
| 3VA9908-0BB22 | Aksesuar · Accessories | |
| 3VA9908-0BB21 | Aksesuar · Accessories | |
| 3VA9908-0BB20 | Aksesuar · Accessories | |
| 3VA9908-0BB16 | Aksesuar · Accessories | |
| 3VA9908-0BB15 | Aksesuar · Accessories | |
| 3VA9908-0BB14 | Aksesuar · Accessories | |
| 3VA9988-0BL30 | Aksesuar · Accessories | |
| 3VA9354-0KB05 | Aksesuar · Accessories | |
| 3VA9354-0KB03 | Aksesuar · Accessories | |
| 3VA9987-0KD81 | Aksesuar · Accessories | |
| 3VA9987-0KD80 | Aksesuar · Accessories | |
| 3VA9987-0KC00 | Aksesuar · Accessories | |
| 3VA9987-0KB00 | Aksesuar · Accessories | |
| 3VA9487-0GB10 | Aksesuar · Accessories | |
| 3VA9988-0AB23 | Aksesuar · Accessories | |
| 3VA9988-0AB22 | Aksesuar · Accessories | |
| 3VA9988-0AB11 | Aksesuar · Accessories | |
| 3VA9988-0AA23 | Aksesuar · Accessories | |
| 3VA9988-0AA22 | Aksesuar · Accessories | |
| 3VA9988-0AA21 | Aksesuar · Accessories | |
| 3VA9988-0AA11 | Aksesuar · Accessories | |
| 3VA9987-0KP80 | Aksesuar · Accessories | |
| 3VA9980-0VL40 | Aksesuar · Accessories | |
| 3VA9980-0VL30 | Aksesuar · Accessories | |
| 3VA9980-0VL10 | Aksesuar · Accessories | |
| 3VA9980-0VC30 | Aksesuar · Accessories | |
| 3VA9980-0VC20 | Aksesuar · Accessories | |
| 3VA9980-0VC10 | Aksesuar · Accessories | |
| 3VA9088-0VM30 | Aksesuar · Accessories | |
| 3VA9088-0VM10 | Aksesuar · Accessories | |
| 3VA9088-0VK10 | Aksesuar · Accessories | |
| 3VA9988-0BM10 | Aksesuar · Accessories | |
| 3VA9988-0BF23 | Aksesuar · Accessories | |
| 3VA9988-0BF22 | Aksesuar · Accessories | |
| 3VA9988-0BF21 | Aksesuar · Accessories | |
| 3VA9988-0AB13 | Aksesuar · Accessories | |
| 3VA9988-0AB12 | Aksesuar · Accessories | |
| 3VA9988-0AA13 | Aksesuar · Accessories | |
| 3VA9988-0AB34 | Aksesuar · Accessories | |
| 3VA9988-0AB35 | Aksesuar · Accessories | |
| 3VA9367-0KT00 | Aksesuar · Accessories | |
| 3VA9367-0LF10 | Aksesuar · Accessories | |
| 3VA9324-0KP10 | Aksesuar · Accessories | |
| 3VA9324-0KD10 | Aksesuar · Accessories | |
| 3VA9304-0SB40 | Aksesuar · Accessories | |
| 3VA9304-0JF60 | Aksesuar · Accessories | |
| 3VA9487-0GA80 | Aksesuar · Accessories | |
| 3VA9482-0WA00 | Aksesuar · Accessories | |
| 3VA9480-0WC00 | Aksesuar · Accessories | |
| 3VA9480-0WB00 | Aksesuar · Accessories | |
| 3VA9468-0VK20 | Aksesuar · Accessories | |
| 3VA9467-0PK17 | Aksesuar · Accessories | |
| 3VA9467-0PK15 | Aksesuar · Accessories | |
| 3VA9467-0PK13 | Aksesuar · Accessories | |
| 3VA9467-0PK11 | Aksesuar · Accessories | |
| 3VA9467-0HA20 | Aksesuar · Accessories | |
| 3VA9354-0KB04 | Aksesuar · Accessories | |
| 3VA9467-0HA10 | Aksesuar · Accessories | |
| 3VA9467-0FK25 | Aksesuar · Accessories | |
| 3VA9467-0FK23 | Aksesuar · Accessories | |
| 3VA9467-0FK21 | Aksesuar · Accessories |
