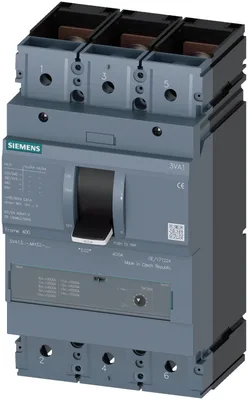

Siemens 3VA1325-5MH32-0AA0

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 3VA1325-5MH32-0AA0

devre kesici 3VA1 IEC gövde 400 kesme kapasitesi sınıf M Icu=55 kA @ 415 V 3-pole, starter koruma TM120M, AM, In=250 A olmadan aşırı yük koruması kısa devre koruması Ii=8...16 x In nut keeper set

SiemensMFR # 3VA1325-5MH32-0AA0SKU # YLSUIAHFFZKAJ0
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productStarter protection
design of the overcurrent releaseTM120M
number of poles3
insulation voltage / rated value800 V
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

devre kesici 3VA1 IEC gövde 400 kesme kapasitesi sınıf M Icu=55 kA @ 415 V 3-pole, starter koruma TM120M, AM, In=250 A olmadan aşırı yük koruması kısa devre koruması Ii=8...16 x In nut keeper set

Siemens 3VA1325-5MH32-0AA0

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Model
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productStarter protection
design of the overcurrent releaseTM120M
protection function of the overcurrent releaseI
number of poles3
General technical data
insulation voltage / rated value800 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum30 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole10 W
mechanical service life (operating cycles) / typical20.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V6.000
electrical endurance (operating cycles) / at AC-1 / at 690 V4.200
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
ground-fault monitoring versionWithout
communication functionYok
other measurement functionYok
Net Weight4,93 kg
Current
at 40 °C250 A
at 45 °C250 A
at 50 °C250 A
at 55 °C245 A
at 60 °C239 A
at 65 °C234 A
at 70 °C228 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerM
at 240 V85 kA
at 415 V55 kA
at 440 V55 kA
at 500 V36 kA
at 690 V7 kA
at 240 V85 kA
at 415 V55 kA
at 440 V55 kA
at 500 V36 kA
at 690 V5 kA
at 240 V187 kA
at 415 V121 kA
at 440 V121 kA
at 500 V75,6 kA
at 690 V11,9 kA
design of short-circuit protectionFor switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter
Adjustable parameters
minimum2.000 A
maximum4.000 A
minimum250 A
maximum250 A
product function / grounding protectionYok
Mechanical Design
undervoltage releaseYok
voltage triggerYok
trip indicatorYok
height [in]9,76 in
height248 mm
width [in]5,43 in
width138 mm
depth [in]4,33 in
depth110 mm
Connections
arrangement of electrical connectors / for main current circuitFront terminal
type of electrical connection / for main current circuitnut keeper kit on both ends
type of connectable conductor cross-sections / for flat-bar terminal connection / minimum20 x 1 mm
type of connectable conductor cross-sections / for flat-bar terminal connection / maximum35 x 10 mm
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)Silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)Silver
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveVar
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
Environmental footprint
global warming potential [CO2 eq] / total473 kg
global warming potential [CO2 eq] / during manufacturing23,9 kg
global warming potential [CO2 eq] / during operation450 kg
global warming potential [CO2 eq] / after end of life-2.9 kg
reference code / according to IEC 81346-2Q
Ürün bilgileri
EAN4042948827673
UPC804766888977
Ürün ailesi3VA Molded Case Circuit Breakers up to 1600 A, IEC
Yaşam döngüsü durumuAktif
Gümrük tarife kodu85362090
Teslimat ve lojistik
Menşe ülkeCzech Republic
Teslim süresi5 gün
İade edilebilirEvet
Net ağırlık4,93 Kg
Paket ölçüleri (U x G x Y)261 x 162 x 170 MM
Standart paket adedi1 adet
Minimum sipariş adedi1
Tehlikeli maddeHayır
İhracat kontrolüAL : N / ECCN : 9N9999
Çevre ve uyumluluk
RoHS uyumuSince: 01-06-12
WEEE kategorisi5
REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)
Siemens kataloğu
Ürün grubu5375
Katalog kimliğiLV10
Grup koduP360
Ürün sınıfıProducts that have been produced/purchased for specific orders, and which generally cannot be reused in any form; a credit will not be issued when these products are returned. This product class includes, e.g. configurable versions
