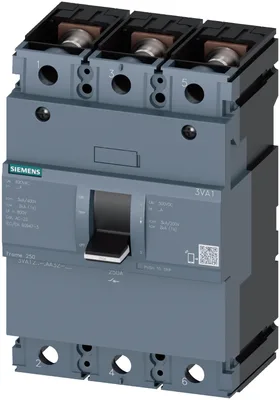

Siemens 3VA1225-1AA32-0AA0

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 3VA1225-1AA32-0AA0

switch disconnector 3VA1 IEC frame 250 3-pole SD100, In=250A without overload protection w/o short-circuit protection nut keeper kit

SiemensMFR # 3VA1225-1AA32-0AA0SKU # CEY-8EF3B02DF00A
product brand nameSENTRON
product designationMolded case circuit breaker
product versionGeneral applications
design of the productin MCCB design
number of poles3
design of the auxiliary releasewithout
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

switch disconnector 3VA1 IEC frame 250 3-pole SD100, In=250A without overload protection w/o short-circuit protection nut keeper kit

Siemens 3VA1225-1AA32-0AA0

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Model
product brand nameSENTRON
product designationMolded case circuit breaker
product versionGeneral applications
design of the productin MCCB design
number of poles3
design of the auxiliary releasewithout
design of the auxiliary switchWithout
General technical data
insulation voltage / rated value800 V
operating voltage / at DC / rated value500 V
operating voltage / at AC / rated value690 V
surge voltage resistance / rated value8 kV
power loss [W] / maximum57 W
mechanical service life (operating cycles) / typical20.000
type of devicefixed mounting
suitability for use / switch disconnectorVar
suitability for use / main switchVar
suitability for use / EMERGENCY OFF switchVar
suitability for use / maintenance/repair switchVar
product function / communication functionYok
Net Weight1,513 kg
Current
short-time withstand current (Icw) / at AC / limited to 0.5 s / rated value3 kA
operational current / rated value250 A
at 40 °C250 A
at 45 °C250 A
at 50 °C250 A
at 55 °C243 A
at 60 °C237 A
at 65 °C230 A
at 70 °C223 A
at 400 V / maximum permissible1.810.000 A²·s
at 500 V / maximum permissible1.660.000 A²·s
at 690 V / maximum permissible1.140.000 A²·s
at 400 V / maximum permissible29 kA
at 500 V / maximum permissible18,7 kA
at 690 V / maximum permissible14,9 kA
Switching capacity according to IEC 60947
at 690 V / by molded case circuit breaker / maximum17 kA
at 415 V / by molded case circuit breaker / maximum154 kA
conditional short-circuit current (Iq) / rated value3.000 A
at 690 V / by molded case circuit breaker / rated value10 kA
at 240 V / by LV HRC fuse link 3NA, 3ND (sizes 00/000, 1, 2, type gL/gG) / rated value100 kA
at 415 V / by LV HRC fuse link 3NA, 3ND (sizes 00/000, 1, 2, type gL/gG) / rated value70 kA
Mechanical Design
overvoltage categoryIV
fastening methodscrew fixing
fastening method / 4-hole front mountingVar
fastening method / front mounting with central attachmentYok
fastening method / rail mountingYok
undervoltage releaseYok
voltage triggerYok
undervoltage release with leading contactYok
trip indicatorYok
product feature / interlockYok

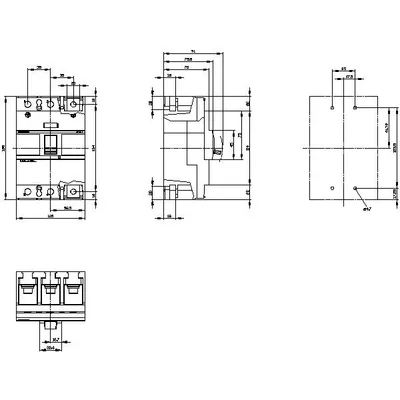

height158 mm
width105 mm
depth70 mm
display version / for switch position indicatorHandle switch position On, Trip, Off
design of the actuating elementtoggle handle
type of the driving mechanism / motor driveYok
Connections
arrangement of electrical connectors / for main current circuitFront terminal
type of electrical connection / for main current circuitbusbar connection
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)Silver
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
number of NC contacts / for auxiliary contacts0
number of NO contacts / for auxiliary contacts0
Accessories
product extension / auxiliary switchYok
product extension / optional / motor driveVar
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
reference code / according to IEC 81346-2Q
