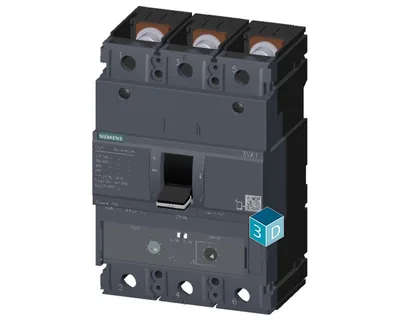

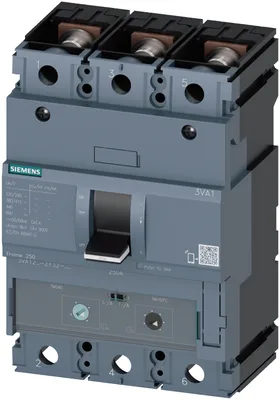

Siemens 3VA1220-5EF32-0AA0

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 3VA1220-5EF32-0AA0

circuit breaker 3VA1 IEC Frame 250 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection TM240, ATAM, In=200 A overload protection Ir=140 A...200 A short-circuit protection Ii=5...10 x In nut keeper kit

SiemensMFR # 3VA1220-5EF32-0AA0SKU # CEY-8EF3B02C4063
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productLine protection
design of the overcurrent releaseTM240
number of poles3
insulation voltage / rated value800 V
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

circuit breaker 3VA1 IEC Frame 250 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection TM240, ATAM, In=200 A overload protection Ir=140 A...200 A short-circuit protection Ii=5...10 x In nut keeper kit

Siemens 3VA1220-5EF32-0AA0

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Model
product brand nameSENTRON
product designationMolded case circuit breaker
design of the productLine protection
design of the overcurrent releaseTM240
protection function of the overcurrent releaseLI
number of poles3
General technical data
insulation voltage / rated value800 V
operating voltage / at DC / rated value500 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum42 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole14 W
mechanical service life (operating cycles) / typical20.000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V8.000
electrical endurance (operating cycles) / at AC-1 / at 690 V5.400
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYok
ground-fault monitoring versionWithout
communication functionYok
other measurement functionYok
Net Weight1,581 kg
Current
at 40 °C200 A
at 45 °C200 A
at 50 °C200 A
at 55 °C194 A
at 60 °C188 A
at 65 °C182 A
at 70 °C176 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerM
at 240 V85 kA
at 415 V55 kA
at 440 V36 kA
at 500 V15 kA
at 690 V10 kA
at 240 V85 kA
at 415 V55 kA
at 440 V36 kA
at 500 V10 kA
at 690 V5 kA
at 240 V187 kA
at 415 V121 kA
at 440 V75,6 kA
at 500 V30 kA
at 690 V17 kA
design of short-circuit protectionFor switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter
Adjustable parameters
product feature / for L-tripping / can be switched on/offYok
minimum140 A
maximum200 A
minimum1 s
maximum1 s
minimum1.000 A
maximum2.000 A
minimum0 A
maximum0 A
product function / grounding protectionYok
Mechanical Design
undervoltage releaseYok
voltage triggerYok
trip indicatorYok

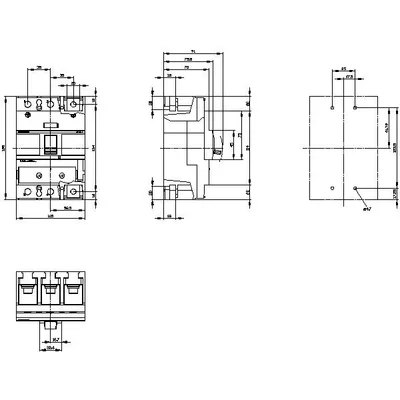

height [in]6,22 in
height158 mm
width [in]4,13 in
width105 mm
depth [in]2,76 in
depth70 mm
Connections
arrangement of electrical connectors / for main current circuitFront terminal
type of electrical connection / for main current circuitnut keeper kit on both ends
type of connectable conductor cross-sections / for flat-bar terminal connection / minimum13 x 1 mm
type of connectable conductor cross-sections / for flat-bar terminal connection / maximum25 x 8 mm
design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)Silver
design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)Silver
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveVar
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
Environmental footprint
global warming potential [CO2 eq] / total285,47 kg
global warming potential [CO2 eq] / during manufacturing6,87 kg
global warming potential [CO2 eq] / during operation279 kg
global warming potential [CO2 eq] / after end of life-0.78 kg
reference code / according to IEC 81346-2Q
