Siemens 3UG5625-1CW30 için nasıl fiyat teklifi alabilirim?

Siemens 3UG5625-1CW30 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLS57PPBEVL1Z5Z ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3UG5625-1CW30 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3UG5625-1CW30 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3UG5625-1CW30 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

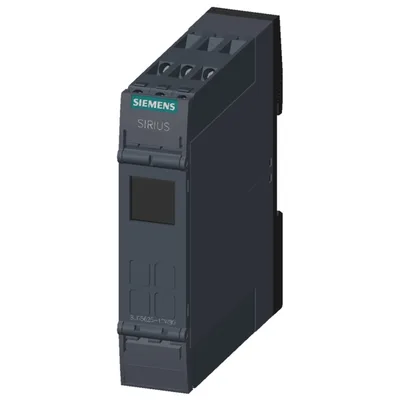

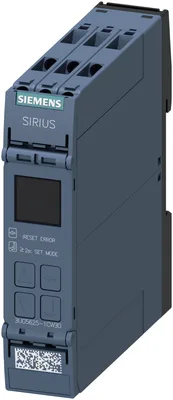

Siemens 3UG5625-1CW30

dijital monitoring röle residual akım monitoring (ile akım transformatör 3UL23) adjustment range 0.03...40 A besleme gerilimi 24... 240 V AC/DC, 50.. 60 Hz ON delay ve tripping delay 0.1..999.9 s 2 komütatör kontak vidalı klemens

SiemensMFR # 3UG5625-1CW30SKU # YLS57PPBEVL1Z5Z

product brand nameSIRIUS

product type designation3UG5

product functionresidual current monitoring relay

design of the displayLCD

power loss [W] maximum1,8 W

power loss [V∙A] maximum4,5 V·A

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3UG5625-1CW30

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationResidual current monitoring relay with digital setting

design of the productmonitoring of residual current, external power supply with auxiliary voltage

product type designation3UG5

General technical data

product functionresidual current monitoring relay

design of the displayLCD

power loss [W] maximum1,8 W

power loss [V∙A] maximum4,5 V·A

rated value690 V

— with degree of pollution 2 rated value690 V

— with degree of pollution 3 rated value690 V

degree of pollution3

for monitoringAC/DC

of the control supply voltageAC/DC

surge voltage resistance rated value4 kV

of the enclosureIP20

of the terminalIP20

shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

vibration resistance according to IEC 60068-2-6f = 4... 5,81 Hz, dmax = 15 mm; f = 5,81... 500 Hz, Amax = 20 m/s²; 10 cycles

mechanical service life (operating cycles) typical10.000.000

electrical endurance (operating cycles) at AC-15 at 230 V typical100.000

thermal current of the switching element with contacts maximum5 A

reference code according to IEC 81346-2K

relative repeat accuracy1 %

Substance Prohibitance (day/month/year)06/01/2023

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight0,166 kg

Product Function

phase sequence recognitionYok

phase failure detectionYok

asymmetry detectionYok

residual current displayVar

error memoryVar

overcurrent detection 1 phaseVar

undercurrent detection 1 phaseYok

adjustable open/closed-circuit current principleVar

external resetYok

auto-RESETVar

manual RESETVar

Control circuit/ Control

at 50 Hz rated value24... 240 V

at 60 Hz rated value24... 240 V

control supply voltage at DC rated value24... 240 V

initial value0,85

full-scale value1,1

initial value0,85

full-scale value1,1

initial value0,85

full-scale value1,1

Measuring circuit

type of current for monitoringAC

measurable current30... 40.000 mA

measurable line frequency16... 400 Hz

adjustable operating delay time0... 999,9 s

130 mA... 40 A

230 mA... 40 A

adjustable response delay time0... 999,9 s

adjustable response delay time when starting0... 999,9 s

adjustable switching hysteresis for measured current value0 mA

buffering time in the event of power failure minimum10 ms

accuracy of digital display+/-1 digit

Precision

relative metering precision5 %

temperature drift per °C0 %/°C

Communication/ Protocol

protocol is supported IO-Link protocolYok

Auxiliary circuit

number of NC contacts delayed switching0

number of NO contacts delayed switching0

for auxiliary contacts2

delayed switching2

operating frequency with 3RT2 contactor maximum5.000 1/h

Main circuit

type of voltageAC/DC

operating voltage rated value24... 240 V

operating frequency rated value16... 400 Hz

at 230 V at 50/60 Hz3 A

at 250 V at 50/60 Hz3 A

at 400 V at 50/60 Hz3 A

at 24 V1 A

at 110 V0,2 A

at 125 V0,2 A

at 230 V0,1 A

at 250 V0,1 A

operational current at 17 V minimum5 mA

continuous current of the DIAZED fuse link of the output relay6 A

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Galvanic isolation

design of the electrical isolationgalvanic isolation

between input and outputVar

between the outputsVar

between the voltage supply and other circuitsVar

Safety related data

product function suitable for safety functionYok

Electrical Safety

protection class IP on the front according to IEC 60529IP20

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

type of electrical connectionscrew terminal

solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)

finely stranded with core end processing1x (0,5... 4 mm²), 2x (0,5... 1,5 mm²)

for AWG cables solid1x (20... 12), 2x (20... 14)

solid0,5... 4 mm²

finely stranded with core end processing0,5... 4 mm²

solid20... 12

stranded20... 12

tightening torque with screw-type terminals0,6... 0,8 N·m

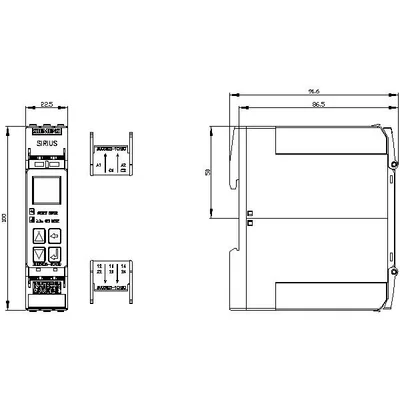

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew ve snap-on mounting

height100 mm

width22,5 mm

depth90 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +80 °C

during transport-40... +80 °C

Aksesuarlar 12

Siemens 3UG5625-1CW30 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3UL2302-1A	Aksesuar
3UL2303-1A	Aksesuar
3UL2304-1A	Aksesuar
3UL2305-1A	Aksesuar
3UL2306-1A	Aksesuar
3UL2307-1A	Aksesuar
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3ZY1311-0AA00	Aksesuar · Further accessories
3ZY1122-1BA00	Aksesuar · Removable terminals
3ZY1321-2AA00	Aksesuar · Further accessories
3ZY1440-1AA00	Aksesuar · Further accessories
3ZY1450-1AB00	Aksesuar · Further accessories
