Siemens 3UG5462-1AA40 için nasıl fiyat teklifi alabilirim?

Siemens 3UG5462-1AA40 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSOW8JLBZKXY08 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3UG5462-1AA40 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3UG5462-1AA40 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3UG5462-1AA40 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

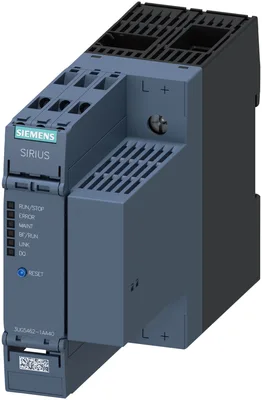

Siemens 3UG5462-1AA40

DC load monitoring röle için PROFINET, max. 1x63 A DC, max. 800 V genişlik: 45,0 mm Monitoring için violation of upper ve lower limit of akım, gerilim ve güç; Energy consumption counter, energy recovery counter, anahtarlama cycle counter, çalışma hours counter, warning ve alarm thresholds, otomatik veya manuel reset, ON delay 0-999.0 sec, OFF delay 0-999.0 sec, otomatik reclosing delay 0-999.0 sec besleme gerilimi: 24 V DC 1 komütatör kontak, vidalı klemens

SiemensMFR # 3UG5462-1AA40SKU # YLSOW8JLBZKXY08

product brand nameSIRIUS

product designationDC load monitoring relay

design of the productfor PROFINET

product type designation3UG5

product functionDC load monitoring relay

power loss [W] maximum3 W

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3UG5462-1AA40

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationDC load monitoring relay

design of the productfor PROFINET

product type designation3UG5

General technical data

product functionDC load monitoring relay

power loss [W] maximum3 W

for overvoltage category II according to IEC 60664 with degree of pollution 3 rated value600 V

for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

of the auxiliary and control circuit for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value30 V

type of voltage for monitoringDC

surge voltage resistance rated value8 kV

between auxiliary and auxiliary circuit24 V

between control and auxiliary circuit24 V

on the frontIP20

of the terminalIP00

shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

vibration resistance according to IEC 60068-2-61... 6 Hz: 15 mm, 6... 500 Hz: 2 g

mechanical service life (operating cycles) typical10.000.000

electrical endurance (operating cycles) for relay outputs maximum100.000

note0,5 A 125 V AC, with resistive load up to 40 °C

thermal current of the switching element with contacts maximum1 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/31/2019

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight0,348 kg

Product Function

overvoltage detection DCVar

undervoltage detection DCVar

overcurrent detection DCVar

undercurrent detection DCVar

auto-RESETVar

manual RESETVar

Besleme gerilimi

type of voltage of the supply voltageDC

supply voltage 1 at DC rated value24 V

operating range factor supply voltage rated value at DC0,85... 1,15

Measuring circuit

type of current for monitoringDC

measurable current-63... +63 A

measurable voltage at DC0... 800 V

adjustable voltage range0... 800 V

1-63... +63 A

when starting0... 999 s

with lower or upper limit violation0... 999 s

response time maximum100 ms

relative temperature-related measurement deviation0,5 %

internal resistance of the measuring circuit10 mΩ

Communication/ Protocol

PROFINET IO protocolVar

Address Resolution Protocol (ARP)Var

design of the interface Fast Ethernet interfaceVar

number of interfaces according to PROFINET1

product function at the Ethernet interface AutocrossoverVar

interface design 1 RJ45 (Ethernet)Var

product function at the 1st interface PROFINET IO deviceVar

number of ports at the 1st interface1

service for open IE communication LLDPVar

transmission mode for Industrial EthernetPROFINET with 100 Mbps full duplex (100BASE-TX)

PROFINET conformity classA

network load class according to PROFINETI

Auxiliary circuit

number of CO contacts for auxiliary contacts1

at 24 V1 A

ampacity for overcurrent duration < 1 s maximum permissible1 A

continuous current of the DIAZED fuse link of the output relay2 A

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Galvanic isolation

design of the electrical isolationProtective separation

between input and outputVar

between the voltage supply and other circuitsVar

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

Connections/ Terminals

product component removable terminal for main circuitYok

product component removable terminal for auxiliary and control circuitVar

type of electrical connectionscrew terminal

solid2x (1... 16 mm²), 1x (1... 16 mm²)

stranded2x (1... 16 mm²), 1x (1... 16 mm²)

finely stranded with core end processing2x (1... 25 mm²), 1x (1... 35 mm²)

— solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)

— finely stranded with core end processing2x (0,5... 1,5 mm²), 1x (0,5... 4 mm²)

for AWG cables for auxiliary contacts1x (20... 12), 2x (20... 14)

for main contacts with screw-type terminals3... 4,5 N·m

for auxiliary contacts with screw-type terminals0,6... 0,8 N·m

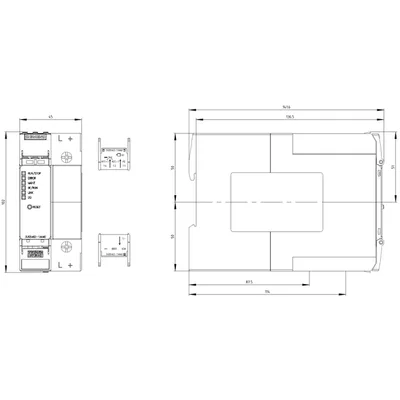

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail

height100 mm

width45 mm

depth141,6 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— downwards50 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— at the side3 mm

— downwards50 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— downwards50 mm

— at the side3 mm

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +80 °C

during transport-40... +80 °C

Ürün bilgileri

EAN4047621064727

UPC804766977251

Yaşam döngüsü durumuP.M410

Gümrük tarife kodu85364900

Teslimat ve lojistik

Menşe ülkeGermany

Teslim süresi20 gün

İade edilebilirEvet

Net ağırlık0,348 Kg

Paket ölçüleri (U x G x Y)175 x 110 x 70 MM

Standart paket adedi1 adet

Minimum sipariş adedi1

Tehlikeli maddeHayır

İhracat kontrolüECCN : 9N9999 / AL : N

Çevre ve uyumluluk

RoHS uyumuSince: 31-05-19

WEEE kategorisi5

REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)

SCIP numarası663f154b-26bc-44ba-8058-158475ad3e62

Siemens kataloğu

Ürün grubu4K62

Katalog kimliğiCC-IC10

Grup koduR711

Ürün sınıfıProducts that have been produced/purchased for specific orders, and which generally cannot be reused in any form; a credit will not be issued when these products are returned. This product class includes, e.g. configurable versions
