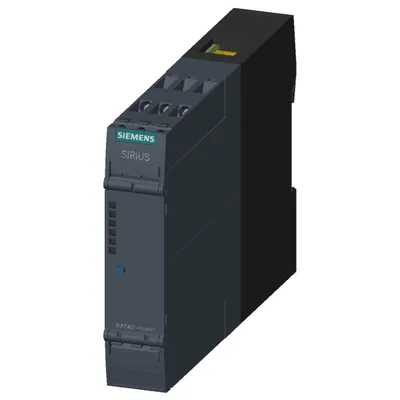

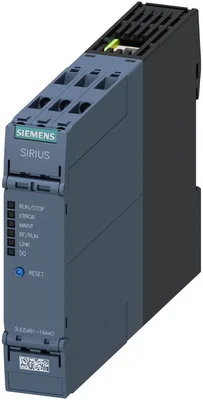

Siemens 3UG5461-1AA40
DC load monitoring röle için PROFINET, max. 2x8 A / 1x16 A DC, max. 800 V genişlik: 22,5 mm Monitoring için violation of upper ve lower limit of akım, gerilim ve güç; Energy consumption counter, energy recovery counter, anahtarlama cycle counter, çalışma hours counter, warning ve alarm thresholds, otomatik veya manuel reset, ON delay 0-999.0 sec, OFF delay 0-999.0 sec, otomatik reclosing delay 0-999.0 sec besleme gerilimi: 24 V DC 1 komütatör kontak, vidalı klemens
product brand nameSIRIUS
product designationDC load monitoring relay
design of the productfor PROFINET
product type designation3UG5
product functionDC load monitoring relay
power loss [W] maximum3 W
Ürün Hakkında
DC load monitoring röle için PROFINET, max. 2x8 A / 1x16 A DC, max. 800 V genişlik: 22,5 mm Monitoring için violation of upper ve lower limit of akım, gerilim ve güç; Energy consumption counter, energy recovery counter, anahtarlama cycle counter, çalışma hours counter, warning ve alarm thresholds, otomatik veya manuel reset, ON delay 0-999.0 sec, OFF delay 0-999.0 sec, otomatik reclosing delay 0-999.0 sec besleme gerilimi: 24 V DC 1 komütatör kontak, vidalı klemens
Siemens 3UG5461-1AA40
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationDC load monitoring relay
design of the productfor PROFINET
product type designation3UG5
General technical data
product functionDC load monitoring relay
power loss [W] maximum3 W
for overvoltage category II according to IEC 60664 with degree of pollution 3 rated value800 V
for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value600 V
of the auxiliary and control circuit for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value30 V
type of voltage for monitoringDC
surge voltage resistance rated value6 kV
between auxiliary and auxiliary circuit24 V
between control and auxiliary circuit24 V
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
vibration resistance according to IEC 60068-2-61... 6 Hz: 15 mm, 6... 500 Hz: 2 g
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) for relay outputs maximum100.000
note0,5 A 125 V AC, with resistive load up to 40 °C
thermal current of the switching element with contacts maximum1 A
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/31/2019
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,23 kg
Product Function
overvoltage detection DCVar
undervoltage detection DCVar
overcurrent detection DCVar
undercurrent detection DCVar
auto-RESETVar
manual RESETVar
Besleme gerilimi
type of voltage of the supply voltageDC
supply voltage 1 at DC rated value24 V
operating range factor supply voltage rated value at DC0,85... 1,15
Measuring circuit
type of current for monitoringDC
measurable current-8... +8 A
measurable voltage at DC0... 800 V
adjustable voltage range0... 800 V
1-8... +8 A
2-8... +8 A
when starting0... 999 s
with lower or upper limit violation0... 999 s
response time maximum100 ms
relative temperature-related measurement deviation0,5 %
internal resistance of the measuring circuit10 mΩ
Communication/ Protocol
PROFINET IO protocolVar
Address Resolution Protocol (ARP)Var
design of the interface Fast Ethernet interfaceVar
number of interfaces according to PROFINET1
product function at the Ethernet interface AutocrossoverVar
interface design 1 RJ45 (Ethernet)Var
product function at the 1st interface PROFINET IO deviceVar
number of ports at the 1st interface1
service for open IE communication LLDPVar
transmission mode for Industrial EthernetPROFINET with 100 Mbps full duplex (100BASE-TX)
PROFINET conformity classA
network load class according to PROFINETI
Auxiliary circuit
number of CO contacts for auxiliary contacts1
at 24 V1 A
ampacity for overcurrent duration < 1 s maximum permissible1 A
continuous current of the DIAZED fuse link of the output relay2 A
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1ambience A (industrial sector)
EMC immunity according to IEC 60947-1ambience A (industrial sector)
due to burst according to IEC 61000-4-42 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
Galvanic isolation
design of the electrical isolationProtective separation
between input and outputVar
between the voltage supply and other circuitsVar
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe
Connections/ Terminals
product component removable terminal for main circuitVar
product component removable terminal for auxiliary and control circuitVar
type of electrical connectionscrew terminal
solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
stranded1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
finely stranded with core end processing1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
— solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²), 1x (0,5... 4 mm²)
for AWG cables for auxiliary contacts1x (20... 12), 2x (20... 14)
for main contacts with screw-type terminals0,6... 0,8 N·m
for auxiliary contacts with screw-type terminals0,6... 0,8 N·m

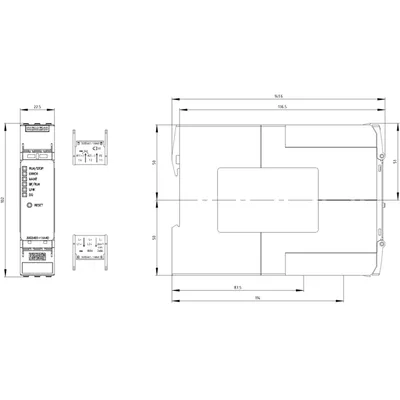

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail
height100 mm
width22,5 mm
depth141,6 mm
— forwards0 mm
— backwards0 mm
— upwards50 mm
— downwards50 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards50 mm
— at the side3 mm
— downwards50 mm
— forwards0 mm
— backwards0 mm
— upwards50 mm
— downwards50 mm
— at the side3 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +80 °C
during transport-40... +80 °C
Ürün bilgileri
EAN4047621064710
UPC804766977244
Yaşam döngüsü durumuP.M410
Gümrük tarife kodu85364900
Teslimat ve lojistik
Menşe ülkeGermany
Teslim süresi20 gün
İade edilebilirEvet
Net ağırlık0,23 Kg
Paket ölçüleri (U x G x Y)180 x 110 x 35 MM
Standart paket adedi1 adet
Minimum sipariş adedi1
Tehlikeli maddeHayır
İhracat kontrolüECCN : 9N9999 / AL : N
Çevre ve uyumluluk
RoHS uyumuSince: 31-05-19
WEEE kategorisi5
REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)
SCIP numarasıe97bd55e-b01a-4e8c-8f1c-09f197640e5b
Siemens kataloğu
Ürün grubu4K62
Katalog kimliğiCC-IC10
Grup koduR711
Ürün sınıfıProducts that have been produced/purchased for specific orders, and which generally cannot
be reused in any form; a credit will not be issued when these products are returned. This product class includes, e.g. configurable versions
Aksesuarlar 6
Siemens 3UG5461-1AA40 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RA2908-1A | Aksesuar · Miscellaneous accessories · screwdrivers | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3ZY1311-0AA00 | Aksesuar · Further accessories | |
| 3ZY1122-1BA00 | Aksesuar · Removable terminals | |
| 3ZY1440-1AA00 | Aksesuar · Further accessories | |
| 3ZY1450-1AB00 | Aksesuar · Further accessories |
