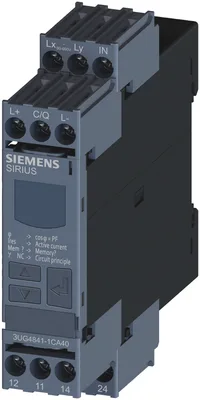

Siemens 3UG4841-1CA40

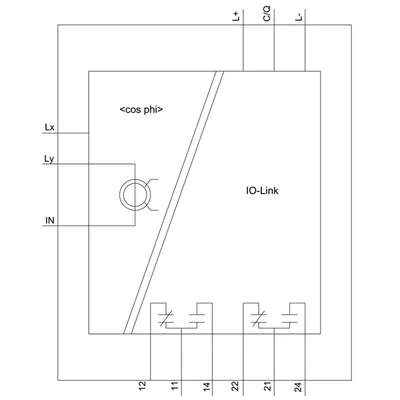

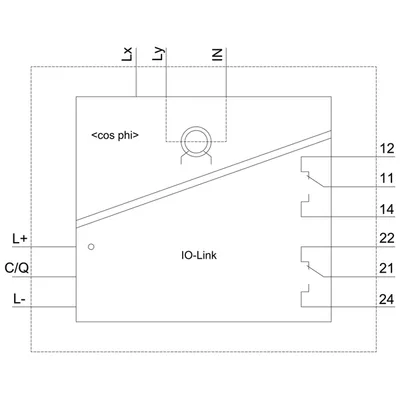

!!! product phase-out !!! the preferred successor is 3UG5842-1AA40 digital monitoring relay cos phi and current monitoring for IO-Link 90...690 V AC, 0.2...10 A overshoot and undershoot ON-delay time tripping delay time hysteresis 0.1 to 3.0 A 2 changeover contacts, screw terminal
product brand nameSIRIUS
product type designation3UG4
product functionactive power monitoring relay
design of the displayLCD
with degree of pollution 2 rated value690 V
degree of pollution2
Ürün Hakkında
!!! product phase-out !!! the preferred successor is 3UG5842-1AA40 digital monitoring relay cos phi and current monitoring for IO-Link 90...690 V AC, 0.2...10 A overshoot and undershoot ON-delay time tripping delay time hysteresis 0.1 to 3.0 A 2 changeover contacts, screw terminal
Siemens 3UG4841-1CA40
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationCos phi monitoring relay with digital setting
product type designation3UG4
General technical data
product functionactive power monitoring relay
design of the displayLCD
with degree of pollution 2 rated value690 V
degree of pollution2
surge voltage resistance rated value6 kV
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
vibration resistance according to IEC 60068-2-61... 6 Hz: 15 mm, 6... 500 Hz: 2 g
mechanical service life (operating cycles) typical10.000.001
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current of the switching element with contacts maximum5 A
reference code according to IEC 81346-2K
relative repeat accuracy1 %
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,167 kg
Product Function
phase sequence recognitionYok
phase failure detectionYok
asymmetry detectionYok
voltage monitoringYok
current monitoringVar
overcurrent detection 1 phaseVar
undercurrent detection 1 phaseVar
adjustable open/closed-circuit current principleVar
external resetVar
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage rated value18... 30 V
control supply voltage at DC rated value24 V
supply voltage frequency for auxiliary and control circuit rated value0 Hz
initial value0,75
full-scale value1,3
Besleme gerilimi
supply voltage frequency rated value60 Hz
Measuring circuit
type of current for monitoringAC
measurable current0,2... 10 A
10,2... 10 A
20,2... 10 A
when starting0... 999,9 s
with lower or upper limit violation0... 999,9 s
adjustable switching hysteresis for measured current value0... 3.000 mA
accuracy of digital display+/-1 digit
Precision
relative metering precision10 %
Communication/ Protocol
protocol is supported IO-Link protocolVar
IO-Link transfer rateCOM2 (38,4 kBaud)
point-to-point cycle time between master and IO-Link device minimum10 ms
type of voltage supply via input/output link masterVar
of the address range of the inputs with cyclical transfer total4 bayt
of the address range of the outputs with cyclical transfer total2 bayt
Auxiliary circuit
number of NC contacts delayed switching0
number of NO contacts delayed switching0
number of CO contacts delayed switching2
operating frequency with 3RT2 contactor maximum5.000 1/h
Main circuit
number of poles for main current circuit1
operating voltage rated value90... 690 V
at 250 V at 50/60 Hz3 A
at 400 V at 50/60 Hz3 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
ampacity of the semiconductor output in SIO mode200 mA
operational current at 17 V minimum10 mA
continuous current of the DIAZED fuse link of the output relay4 A
Electromagnetic compatibility
due to burst according to IEC 61000-4-42 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
Galvanic isolation
between input and outputVar
between the outputsVar
between the voltage supply and other circuitsVar

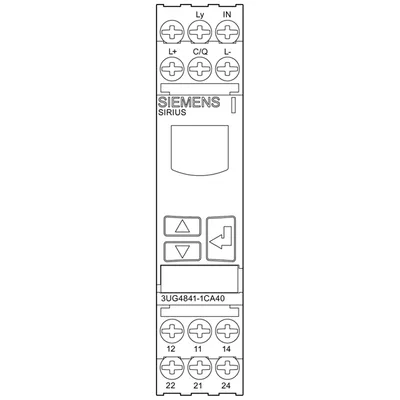

Connections/ Terminals
product component removable terminal for auxiliary and control circuitVar
type of electrical connectionscrew terminal
solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid2x (20... 14)
for AWG cables stranded2x (20... 14)
solid0,5... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
solid20... 14
stranded20... 14
tightening torque with screw-type terminals1,2... 0,8 N·m

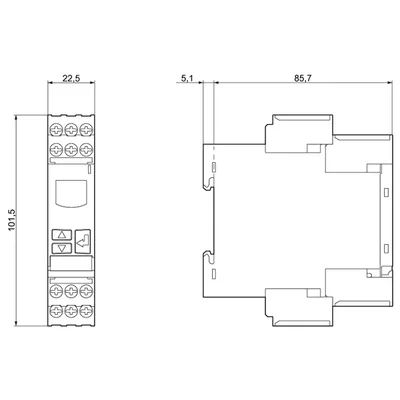

Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height102 mm
width22,5 mm
depth91 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
Aksesuarlar 3
Siemens 3UG4841-1CA40 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
