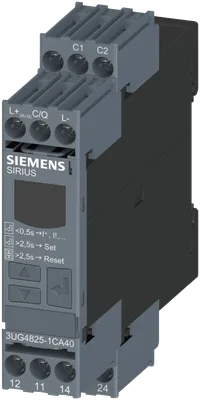

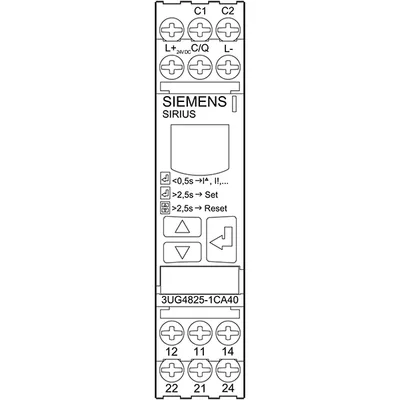

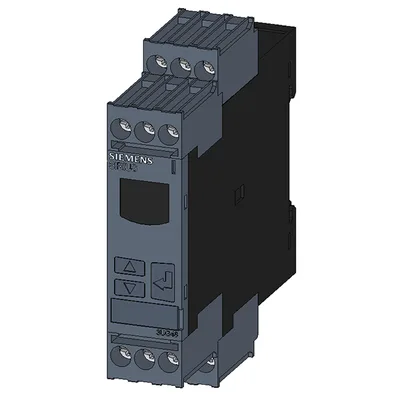

Siemens 3UG4825-1CA40
!!! product phase-out !!! the preferred successor is 3UG5825-1AA40 digital monitoring relay for residual current monitoring with residual-current transformer 3UL23 for IO-Link adjustment range 0.03 A to 40 A separate for warning threshold and trip value ON-delay and tripping delay 0 to 999.9 s shutdown hysteresis up to 50% warning hysteresis 5% fixed width 22.5 mm, 2 changeover contacts with or without fault buffer screw terminal
product brand nameSIRIUS
product type designation3UG4
product functionresidual current monitoring relay
design of the displayLCD
rated value300 V
— with degree of pollution 3 rated value300 V
Ürün Hakkında
!!! product phase-out !!! the preferred successor is 3UG5825-1AA40 digital monitoring relay for residual current monitoring with residual-current transformer 3UL23 for IO-Link adjustment range 0.03 A to 40 A separate for warning threshold and trip value ON-delay and tripping delay 0 to 999.9 s shutdown hysteresis up to 50% warning hysteresis 5% fixed width 22.5 mm, 2 changeover contacts with or without fault buffer screw terminal
Siemens 3UG4825-1CA40
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationResidual current monitoring relay with digital setting
product type designation3UG4
General technical data
product functionresidual current monitoring relay
design of the displayLCD
rated value300 V
— with degree of pollution 3 rated value300 V
degree of pollution3
for monitoringAC/DC
of the control supply voltageDC
surge voltage resistance rated value4 kV
of the enclosureIP20
of the terminalIP20
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
vibration resistance according to IEC 60068-2-61... 6 Hz: 15 mm, 6... 500 Hz: 2g
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current of the switching element with contacts maximum5 A
reference code according to IEC 81346-2K
relative repeat accuracy1 %
Substance Prohibitance (day/month/year)02/14/2013
Net Weight159 g
Product Function
phase sequence recognitionYok
phase failure detectionYok
asymmetry detectionYok
residual current displayVar
error memoryVar
overcurrent detection 1 phaseVar
undercurrent detection 1 phaseYok
adjustable open/closed-circuit current principleVar
external resetVar
auto-RESETYok
manual RESETYok
Control circuit/ Control
control supply voltage at DC rated value24 V
control supply voltage at DC rated value24 V
initial value0,85
full-scale value1,1
Measuring circuit
type of current for monitoringAC
measurable current10 mA... 43 A
measurable line frequency16... 400 Hz
adjustable operating delay time0... 999,9 s
130 mA... 40 A
230 mA... 40 A
adjustable response delay time0... 999,9 s
adjustable response delay time when starting0... 999,9 s
buffering time in the event of power failure minimum10 ms
accuracy of digital display+/-1 digit
Precision
relative metering precision5 %
temperature drift per °C0,1 %/°C
Communication/ Protocol
protocol is supported IO-Link protocolVar
IO-Link transfer rateCOM2 (38,4 kBaud)
point-to-point cycle time between master and IO-Link device minimum10 ms
type of voltage supply via input/output link masterVar
of the address range of the inputs with cyclical transfer total4 bayt
of the address range of the outputs with cyclical transfer total2 bayt
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NC contacts delayed switching0
number of NO contacts for auxiliary contacts0
number of NO contacts delayed switching0
for auxiliary contacts2
delayed switching2
operating frequency with 3RT2 contactor maximum5.000 1/h
Main circuit
type of voltageDC
operating voltage rated value24 V
operating frequency rated value16... 400 Hz
at 250 V at 50/60 Hz3 A
at 400 V at 50/60 Hz0 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
ampacity of the semiconductor output in SIO mode200 mA
operational current at 17 V minimum5 mA
continuous current of the DIAZED fuse link of the output relay4 A
Electromagnetic compatibility
due to burst according to IEC 61000-4-42 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
Galvanic isolation
design of the electrical isolationgalvanic isolation
between input and outputVar
between the outputsVar
between the voltage supply and other circuitsYok
Safety related data
product function suitable for safety functionYok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
Connections/ Terminals
product component removable terminal for auxiliary and control circuitVar
type of electrical connectionscrew terminal
solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid2x (20... 14)
for AWG cables stranded2x (20... 14)
solid0,5... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
solid20... 14
stranded20... 14
tightening torque with screw-type terminals0,8... 1,2 N·m

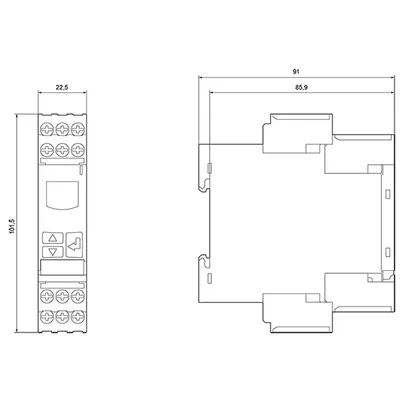

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail
height102 mm
width22,5 mm
depth91 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
