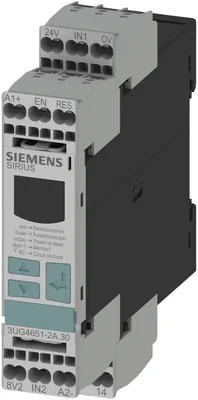

Siemens 3UG4651-2AA30
!!! product phase-out !!! the preferred successor is 3UG5651-2CW30 digital monitoring relay speed monitoring from 0.1 to 2200 r/min overshoot and undershoot supply voltage: 24 V AC/DC 50 to 60 Hz DC and AC without electrical isolation to the measuring circuit ON-delay 1 to 900 s tripping delay 0.1 to 99.9 s hysteresis 0.1 to 99 r/min 1 changeover contact with or without fault buffer spring-loaded connection system
product brand nameSIRIUS
product type designation3UG4
product functionRPM monitoring relay
design of the displayLCD
— at 24 V maximum2,5 V·A
— with degree of pollution 3 rated value300 V
Ürün Hakkında
!!! product phase-out !!! the preferred successor is 3UG5651-2CW30 digital monitoring relay speed monitoring from 0.1 to 2200 r/min overshoot and undershoot supply voltage: 24 V AC/DC 50 to 60 Hz DC and AC without electrical isolation to the measuring circuit ON-delay 1 to 900 s tripping delay 0.1 to 99.9 s hysteresis 0.1 to 99 r/min 1 changeover contact with or without fault buffer spring-loaded connection system
Siemens 3UG4651-2AA30
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationSpeed monitoring relay with digital setting
product type designation3UG4
General technical data
product functionRPM monitoring relay
design of the displayLCD
— at 24 V maximum2,5 V·A
— with degree of pollution 3 rated value300 V
degree of pollution3
type of voltage of the control supply voltageAC/DC
surge voltage resistance rated value4 kV
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
reference code according to IEC 81346-2K
relative repeat accuracy1 %
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,155 kg
Product Function
standstill monitoringYok
rotation speed monitoringVar
error memoryVar
adjustable open/closed-circuit current principleVar
external resetVar
auto-RESETVar
manual RESETVar
suitability for use safety-related circuitsYok
Control circuit/ Control
at 50 Hz rated value24 V
at 60 Hz rated value24 V
control supply voltage at DC rated value24 V
initial value0,8
full-scale value1,1
initial value1,1
full-scale value0,8
initial value1,1
full-scale value0,8
Measuring circuit
measurable line frequency50... 60 Hz
when starting1... 900 s
with lower or upper limit violation0,1... 99,9 s
buffering time in the event of power failure minimum10 ms
accuracy of digital display+/- 1 Digit
Precision
relative metering precision10 %
Communication/ Protocol
protocol is supported IO-Link protocolYok
Auxiliary circuit
number of NC contacts delayed switching0
number of NO contacts delayed switching0
number of CO contacts delayed switching1
operating frequency with 3RT2 contactor maximum5.000 1/h
Inputs/ Outputs
design of input feedback inputYok
— instantaneous contact0
— delayed switching1
— delayed switching0
— instantaneous contact0
— delayed switching0
— instantaneous contact0
— delayed switching0
— instantaneous contact0
at 250 V at 50/60 Hz3 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
operational current at 17 V minimum5 mA
continuous current of the DIAZED fuse link of the output relay4 A
Electromagnetic compatibility
due to burst according to IEC 61000-4-42 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
Galvanic isolation
between input and outputVar
between the outputsYok
IEC 61508
Safety Integrity Level (SIL) according to IEC 61508without
Electrical Safety
protection class IP on the front according to IEC 60529IP20
Connections/ Terminals
product component removable terminal for auxiliary and control circuitVar
type of electrical connectionspring-loaded terminals
solid2x (0,25... 1,5 mm²)
finely stranded with core end processing2 x (0,25... 1,5 mm²)
finely stranded without core end processing2x (0,25... 1,5 mm²)
for AWG cables solid2x (24... 16)
for AWG cables stranded2x (24... 16)
solid0,25... 1,5 mm²
finely stranded with core end processing0,25... 1,5 mm²
finely stranded without core end processing0,25... 1,5 mm²
solid24... 16
stranded24... 16
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting
height86 mm
width22,5 mm
depth103 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +80 °C
during transport-40... +80 °C
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing4,44 kg
global warming potential [CO2 eq] / during sales0,0341 kg
global warming potential [CO2 eq] / during operation13,7 kg
global warming potential [CO2 eq] / after end of life-1.06 kg
global warming potential [CO2 eq] / total17,1 kg
