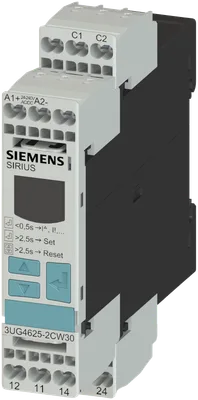

Siemens 3UG4625-2CW30
!!! ürün üretimden kalkıyor !!! the preferred halefi is 3UG5625-2CW30 dijital monitoring röle için residual akım monitoring (ile akım transformatör 3UL23) adjustment range 0.03...40 A separate için warning threshold ve açtırma value besleme gerilimi 24... 240 V AC/DC, 50.. 60 Hz ON-delay ve tripping delay 0,1 to 20 s shutdown hysteresis en çok 50% warning hysteresis 5% fixed genişlik 22,5 mm, 2 komütatör kontak ile veya olmadan arıza buffer spring-loaded bağlantı system
product brand nameSIRIUS
product type designation3UG4
product functionresidual current monitoring relay
design of the displayLCD
rated value300 V
— with degree of pollution 3 rated value300 V
Ürün Hakkında
!!! ürün üretimden kalkıyor !!! the preferred halefi is 3UG5625-2CW30 dijital monitoring röle için residual akım monitoring (ile akım transformatör 3UL23) adjustment range 0.03...40 A separate için warning threshold ve açtırma value besleme gerilimi 24... 240 V AC/DC, 50.. 60 Hz ON-delay ve tripping delay 0,1 to 20 s shutdown hysteresis en çok 50% warning hysteresis 5% fixed genişlik 22,5 mm, 2 komütatör kontak ile veya olmadan arıza buffer spring-loaded bağlantı system
Siemens 3UG4625-2CW30
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationResidual current monitoring relay with digital setting
product type designation3UG4
General technical data
product functionresidual current monitoring relay
design of the displayLCD
rated value300 V
— with degree of pollution 3 rated value300 V
degree of pollution3
for monitoringAC/DC
of the control supply voltageAC/DC
surge voltage resistance rated value4 kV
of the enclosureIP20
of the terminalIP20
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
vibration resistance according to IEC 60068-2-61... 6 Hz: 15 mm, 6... 500 Hz: 2g
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current of the switching element with contacts maximum5 A
reference code according to IEC 81346-2K
relative repeat accuracy1 %
Substance Prohibitance (day/month/year)02/14/2013
SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,14 kg
Product Function
phase sequence recognitionYok
phase failure detectionYok
asymmetry detectionYok
residual current displayVar
error memoryVar
overcurrent detection 1 phaseVar
undercurrent detection 1 phaseYok
adjustable open/closed-circuit current principleVar
external resetVar
auto-RESETYok
manual RESETYok
Control circuit/ Control
at 50 Hz rated value24... 240 V
at 60 Hz rated value24... 240 V
control supply voltage at DC rated value24... 240 V
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
Measuring circuit
type of current for monitoringAC
measurable current10 mA... 43 A
measurable line frequency16... 400 Hz
adjustable operating delay time0,1... 20 s
130 mA... 40 A
230 mA... 40 A
adjustable response delay time0... 20 s
adjustable response delay time when starting0,1... 20 s
buffering time in the event of power failure minimum10 ms
accuracy of digital display+/-1 digit
Precision
relative metering precision5 %
temperature drift per °C0,1 %/°C
Communication/ Protocol
protocol is supported IO-Link protocolYok
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NC contacts delayed switching0
number of NO contacts for auxiliary contacts0
number of NO contacts delayed switching0
for auxiliary contacts2
delayed switching2
operating frequency with 3RT2 contactor maximum5.000 1/h
Main circuit
type of voltageAC/DC
operating voltage rated value24... 240 V
operating frequency rated value16... 400 Hz
at 250 V at 50/60 Hz3 A
at 400 V at 50/60 Hz0 A
at 24 V1 A
at 125 V0,2 A
at 250 V0,1 A
operational current at 17 V minimum5 mA
continuous current of the DIAZED fuse link of the output relay4 A
Electromagnetic compatibility
due to burst according to IEC 61000-4-42 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
Galvanic isolation
design of the electrical isolationgalvanic isolation
between input and outputVar
between the outputsVar
between the voltage supply and other circuitsYok
Safety related data
product function suitable for safety functionYok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
Connections/ Terminals
product component removable terminal for auxiliary and control circuitVar
type of electrical connectionspring-loaded terminals
solid2x (0,25... 1,5 mm²)
finely stranded with core end processing2 x (0,25... 1,5 mm²)
finely stranded without core end processing2x (0,25... 1,5 mm²)
for AWG cables solid2x (24... 16)
for AWG cables stranded2x (24... 16)
solid0,25... 1,5 mm²
finely stranded with core end processing0,25... 1,5 mm²
finely stranded without core end processing0,25... 1,5 mm²
solid24... 16
stranded24... 16
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail
height103 mm
width22,5 mm
depth91 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing4,44 kg
global warming potential [CO2 eq] / during sales0,0341 kg
global warming potential [CO2 eq] / during operation13,7 kg
global warming potential [CO2 eq] / after end of life-1.06 kg
global warming potential [CO2 eq] / total17,1 kg
Aksesuarlar 9
Siemens 3UG4625-2CW30 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RP1902 | Aksesuar | |
| 3RP1903 | Aksesuar · Further accessories | |
| 3RT1900-1SB20 | Aksesuar | |
| 3UL2302-1A | Seçmeli zorunlu ürün | |
| 3UL2303-1A | Seçmeli zorunlu ürün | |
| 3UL2304-1A | Seçmeli zorunlu ürün | |
| 3UL2305-1A | Seçmeli zorunlu ürün | |
| 3UL2306-1A | Seçmeli zorunlu ürün | |
| 3UL2307-1A | Seçmeli zorunlu ürün |
