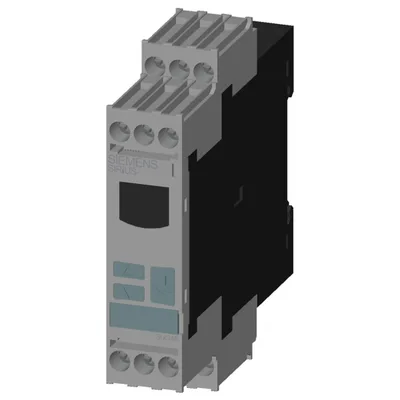

Siemens 3UG4618-1CR20
!!! ürün üretimden kalkıyor !!! the preferred halefi is 3UG5618-1CR20 faz failure ve sequence monitoring 3x 160-690 V, vidalı klemens dijital monitoring röle için 3-phase gerilim ile N iletken otomatik faz sequence correction faz failure 3 x 90 to 400 V AC 50 to 60 Hz undervoltage ve overvoltage 90-400 V hysteresis 1-20 V OFF delay 0-20 s asymmetry 0-20% 1 komütatör kontak için faz correction 1 komütatör kontak için güç system faults vidalı klemens
product brand nameSIRIUS
design of the product5 functions
product type designation3UG4
product functionPhase monitoring relay
display version LEDYok
design of the displayLCD
Ürün Hakkında
!!! ürün üretimden kalkıyor !!! the preferred halefi is 3UG5618-1CR20 faz failure ve sequence monitoring 3x 160-690 V, vidalı klemens dijital monitoring röle için 3-phase gerilim ile N iletken otomatik faz sequence correction faz failure 3 x 90 to 400 V AC 50 to 60 Hz undervoltage ve overvoltage 90-400 V hysteresis 1-20 V OFF delay 0-20 s asymmetry 0-20% 1 komütatör kontak için faz correction 1 komütatör kontak için güç system faults vidalı klemens
Siemens 3UG4618-1CR20
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationNetwork monitoring relay with digital setting
design of the product5 functions
product type designation3UG4
General technical data
product functionPhase monitoring relay
display version LEDYok
design of the displayLCD
with degree of pollution 3 rated value690 V
degree of pollution3
for monitoringAC
surge voltage resistance rated value6 kV
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
vibration resistance according to IEC 60068-2-61... 6 Hz: 15 mm, 6... 500 Hz: 2 g
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current of the switching element with contacts maximum5 A
reference code according to IEC 81346-2K
relative repeat accuracy1 %
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight147,58 g
Product Function
undervoltage detectionVar
overvoltage detectionVar
phase sequence recognitionVar
phase failure detectionVar
asymmetry detectionVar
overcurrent detection 1 phaseYok
overvoltage detection 3 phaseVar
undercurrent detection 1 phaseYok
undervoltage detection 3 phasesVar
voltage window recognition 3 phaseVar
adjustable open/closed-circuit current principleYok
auto-RESETVar
Control circuit/ Control
type of voltage of the control supply voltageAC
initial value1
full-scale value1
initial value1
full-scale value1
Arayüzler
design of the interface bluetoothYok
Measuring circuit
with lower or upper limit violation0,1... 20 s
response time maximum450 ms
accuracy of digital display+/-1 digit
Precision
relative metering precision5 %
Auxiliary circuit
number of NC contacts delayed switching0
number of NO contacts delayed switching0
for auxiliary contacts2
delayed switching2
operating frequency with 3RT2 contactor maximum5.000 1/h
Main circuit
number of poles for main current circuit3
at 250 V at 50/60 Hz3 A
at 400 V at 50/60 Hz3 A
at 24 V1 A
at 125 V0 A
at 250 V0 A
operational current at 17 V minimum5 mA
continuous current of the DIAZED fuse link of the output relay4 A
Electromagnetic compatibility
due to burst according to IEC 61000-4-42 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
Galvanic isolation
between input and outputVar
between the outputsVar
between the voltage supply and other circuitsVar
Safety related data
product function suitable for safety functionYok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
Connections/ Terminals
product component removable terminal for auxiliary and control circuitVar
type of electrical connectionscrew terminal
solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid2x (20... 14)
for AWG cables stranded2x (20... 14)
solid0,5... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
solid20... 14
stranded20... 14
tightening torque with screw-type terminals0,8... 1,2 N·m
Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height102 mm
width22,5 mm
depth91 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing4,44 kg
global warming potential [CO2 eq] / during sales0,0341 kg
global warming potential [CO2 eq] / during operation13,7 kg
global warming potential [CO2 eq] / after end of life-1.06 kg
global warming potential [CO2 eq] / total17,1 kg
