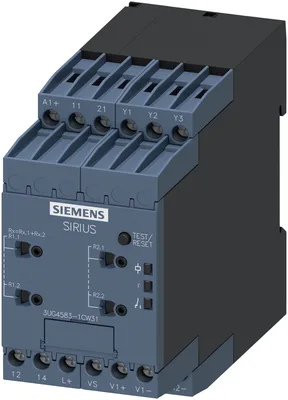

Siemens 3UG4583-1CW31
izolasyon monitoring röle için non-grounded (IT) networks en çok 400 V AC, 15-400 Hz ve en çok 600 V DC ölçüm range 1-100 / 2-200 kOhm besleme gerilimi 24-240 V AC/DC genişlik 45 mm 1 + 1 veya 2 komütatör kontak vidalı klemens
product brand nameSIRIUS
product type designation3UG4
product functionInsulation monitor
for monitoringAC/DC
of the operating voltage for actuationAC/DC
of the control supply voltageAC/DC
Ürün Hakkında
izolasyon monitoring röle için non-grounded (IT) networks en çok 400 V AC, 15-400 Hz ve en çok 600 V DC ölçüm range 1-100 / 2-200 kOhm besleme gerilimi 24-240 V AC/DC genişlik 45 mm 1 + 1 veya 2 komütatör kontak vidalı klemens
Siemens 3UG4583-1CW31
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationInsulation monitoring relay with analog setting
product type designation3UG4
General technical data
product functionInsulation monitor
for monitoringAC/DC
of the operating voltage for actuationAC/DC
of the control supply voltageAC/DC
surge voltage resistance rated value4.000 V
thermal current of the switching element with contacts maximum4 A
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/01/2012
Net Weight0,28 kg
Product Function
phase sequence recognitionYok
phase failure detectionYok
asymmetry detectionYok
error memoryVar
adjustable open/closed-circuit current principleYok
manual RESETVar
Control circuit/ Control
at 50 Hz rated value24... 240 V
at 60 Hz rated value24... 240 V
control supply voltage at DC rated value24... 240 V
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
Measuring circuit
measurable line frequency15... 400 Hz
measurable voltage at AC0... 400 V
measurable voltage at DC0... 600 V
Communication/ Protocol
protocol is supported IO-Link protocolYok
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NC contacts delayed switching0
number of NO contacts for auxiliary contacts0
number of NO contacts delayed switching0
delayed switching2
Main circuit
operating frequency rated value15... 400 Hz
Safety related data
product function suitable for safety functionYok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYok
type of electrical connectionscrew terminal
solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)
finely stranded without core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid1x (20... 12), 2x (20... 14)
for AWG cables stranded1x (18... 14), 2x (18... 16)
solid0,5... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
finely stranded without core end processing0,5... 2,5 mm²
solid20... 12
stranded18... 14
tightening torque with screw-type terminals0,6... 0,8 N·m

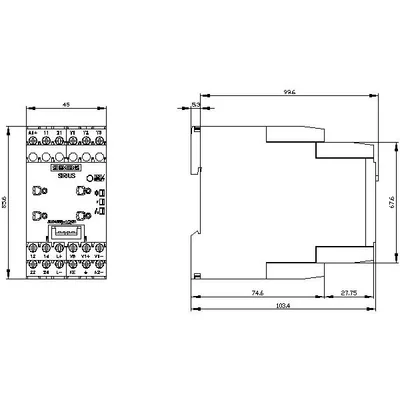

Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on fastening on 35 mm DIN rail
height78 mm
width45 mm
depth100 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
ambient temperature during operation-25... +60 °C
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing3,51 kg
global warming potential [CO2 eq] / during sales0,0276 kg
global warming potential [CO2 eq] / during operation13,7 kg
global warming potential [CO2 eq] / after end of life-1.12 kg
global warming potential [CO2 eq] / total16,1 kg
Urun bilgileri
EAN4047621080475
UPC195125305762
Urun ailesiMonitoring relays for electrical variables
Yasam dongusu durumuAktif
Gumruk tarife kodu85364900
Teslimat ve lojistik
Mense ulkeGermany
Teslim suresi3 gun
Iade edilebilirEvet
Net agirlik0,28 Kg
Paket olculeri (U x G x Y)110 x 90 x 50 MM
Standart paket adedi1 adet
Minimum siparis adedi1
Tehlikeli maddeHayir
Ihracat kontroluAL : N / ECCN : N
Cevre ve uyumluluk
RoHS uyumuSince: 01-05-12
WEEE kategorisi5
REACH bilgisiReach Information
Siemens katalogu
Urun grubu5885
Katalog kimligiCC-IC10
Grup koduR711
Urun sinifiStraightforward, can be reused over the short term
