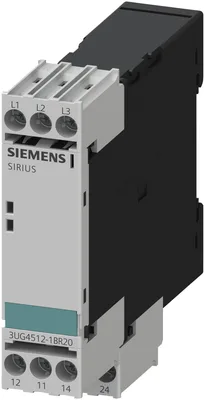

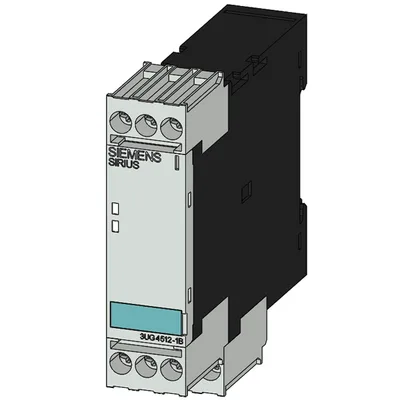

Siemens 3UG4512-1BR20
!!! product phase-out !!! the preferred successor is 3UG5512-1BR20 phase failure and sequence monitoring 3 x 160...690 V analog monitoring relay phase failure and sequence monitoring 3 x 160...690 V AC 50...60 Hz 2 changeover contacts screw terminal
product brand nameSIRIUS
product designationLine monitoring relay
design of the product2 functions
product type designation3UG4
product functionPhase monitoring relay
display version LEDVar
Ürün Hakkında
!!! product phase-out !!! the preferred successor is 3UG5512-1BR20 phase failure and sequence monitoring 3 x 160...690 V analog monitoring relay phase failure and sequence monitoring 3 x 160...690 V AC 50...60 Hz 2 changeover contacts screw terminal
Siemens 3UG4512-1BR20
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationLine monitoring relay
design of the product2 functions
product type designation3UG4
General technical data
product functionPhase monitoring relay
display version LEDVar
with degree of pollution 3 rated value690 V
degree of pollution3
for monitoringAC
surge voltage resistance rated value6 kV
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
vibration resistance according to IEC 60068-2-61... 6 Hz: 15 mm, 6... 500 Hz: 2 g
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current of the switching element with contacts maximum5 A
reference code according to IEC 81346-2K
relative repeat accuracy1 %
Substance Prohibitance (day/month/year)05/28/2009
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,134 kg
Product Function
undervoltage detectionYok
overvoltage detectionYok
phase sequence recognitionVar
phase failure detectionVar
asymmetry detectionYok
overcurrent detection 1 phaseYok
overvoltage detection 3 phaseYok
undercurrent detection 1 phaseYok
undervoltage detection 3 phasesYok
voltage window recognition 3 phaseYok
adjustable open/closed-circuit current principleYok
auto-RESETVar
Control circuit/ Control
type of voltage of the control supply voltageAC
initial value1
full-scale value1
initial value1
full-scale value1
Arayüzler
design of the interface bluetoothYok
Measuring circuit
response time maximum450 ms
Auxiliary circuit
number of NC contacts delayed switching0
number of NO contacts delayed switching0
for auxiliary contacts2
delayed switching2
operating frequency with 3RT2 contactor maximum5.000 1/h
Main circuit
number of poles for main current circuit3
at 250 V at 50/60 Hz3 A
at 400 V at 50/60 Hz3 A
at 24 V1 A
at 125 V0 A
at 250 V0 A
operational current at 17 V minimum5 mA
continuous current of the DIAZED fuse link of the output relay4 A
Electromagnetic compatibility
due to burst according to IEC 61000-4-42 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
Galvanic isolation
between input and outputVar
between the outputsVar
between the voltage supply and other circuitsVar
Safety related data
product function suitable for safety functionYok
Electrical Safety
protection class IP on the front according to IEC 60529IP20
Connections/ Terminals
product component removable terminal for auxiliary and control circuitVar
type of electrical connectionscrew terminal
solid1x (0,5... 4.0mm²), 2x (0,5... 2,5 mm²)
finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid2x (20... 14)
for AWG cables stranded2x (20... 14)
solid0,5... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
solid20... 14
stranded20... 14
tightening torque with screw-type terminals0,8... 1,2 N·m

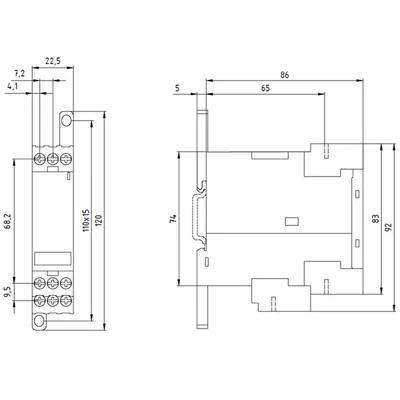

Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height92 mm
width22,5 mm
depth91 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— at the side0 mm
— downwards0 mm
— forwards0 mm
— backwards0 mm
— upwards0 mm
— downwards0 mm
— at the side0 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing3,51 kg
global warming potential [CO2 eq] / during sales0,0276 kg
global warming potential [CO2 eq] / during operation13,7 kg
global warming potential [CO2 eq] / after end of life-1.12 kg
global warming potential [CO2 eq] / total16,1 kg
