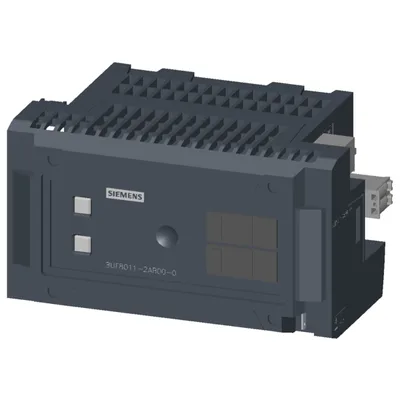

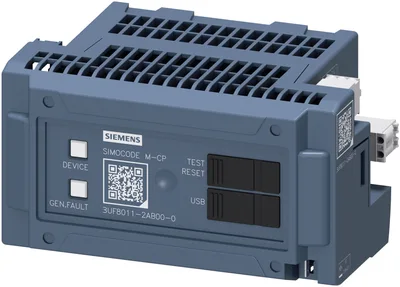

Siemens 3UF8011-2AB00-0

temel cihaz SIMOCODE M-CP MCC, Single Pair Ethernet 10BASE-T1L IEEE 802.3cg SPE, PROFINET IO, OPC UA ve web server, 1 bus bağlantı 3-pole klemens, Us: 24 V DC, 6 I/4 O freely configurable, giriş için thermistor, giriş için ground arıza transformatör 3UL23

SiemensMFR # 3UF8011-2AB00-0SKU # YLS2GZCTRTWDAPE

product brand nameSIMOCODE

product designationMotor management system

product type designationM-CP

certificate of suitabilityCE / RoHS

current measurementYok

voltage measurementYok

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3UF8011-2AB00-0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIMOCODE

product designationMotor management system

product type designationM-CP

1 of residual current transformer connectable3UL2302-1A

2 of residual current transformer connectable3UL2303-1A

3 of residual current transformer connectable3UL2304-1A

4 of residual current transformer connectable3UL2305-1A

5 of residual current transformer connectable3UL2306-1A

6 of residual current transformer connectable3UL2307-1A

General technical data

certificate of suitabilityCE / RoHS

current measurementYok

voltage measurementYok

active power measurementVar

energy measurementYok

frequency measurementYok

bus communicationVar

automatic startVar

data acquisition functionVar

diagnostics functionVar

residual current displayVar

password protectionVar

test functionVar

maintenance functionVar

MRRT redundancy procedureYok

product feature protective coating on printed-circuit boardYok; talep üzerine

input for thermistor connectionVar

digital inputVar

input for residual current converterVar

input for analog temperature sensorsYok

input for ground fault detectionVar

relay outputVar

temperature monitoring moduleYok

current measuring moduleYok

current/voltage measuring moduleVar

fail-safe digital I/O moduleYok

ground-fault monitoring moduleYok

decoupling moduleYok

analog I/O moduleYok

digital I/O module with monostable outputsYok

digital I/O module with bistable outputsYok

control unit with displayVar

control unitYok

apparent power consumption6 V·A

consumed active power3 W

insulation voltage with degree of pollution 3 at AC rated value250 V

surge voltage resistance rated value4.000 V

according to IEC 60068-2-2715 g / 11 ms

vibration resistance1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g

at 24 V6 A

at 120 V6 A

at 230 V3 A

at 24 V2 A

at 60 V0,55 A

at 125 V0,25 A

mechanical service life (operating cycles) typical10.000.000

electrical endurance (operating cycles) typical100.000

buffering time in the event of power failure0,2 s

adjustable current response value current 1 initial value0,03 A

adjustable current response value current 1 full-scale value40 A

reference code according to IEC 81346-2F

at 50 °C6 A

at 60 °C5 A

type of input characteristicType 1 in accordance with EN 61131-2

Substance Prohibitance (day/month/year)01/01/2024

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-Yok. 80-05-7

Net Weight349,58 g

Sensor

measurable line frequency initial value20 Hz

measurable line frequency full-scale value120 Hz

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

due to high-frequency radiation according to IEC 61000-4-610 V

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

conducted HF interference emissions according to CISPR11corresponds to degree of severity A

field-bound HF interference emission according to CISPR11corresponds to degree of severity A

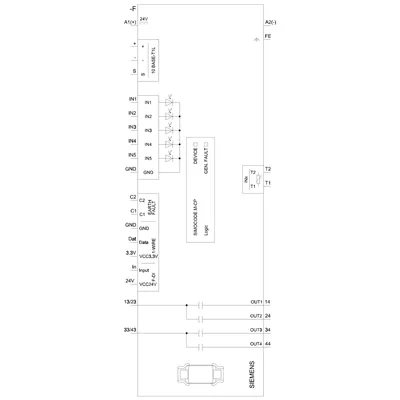

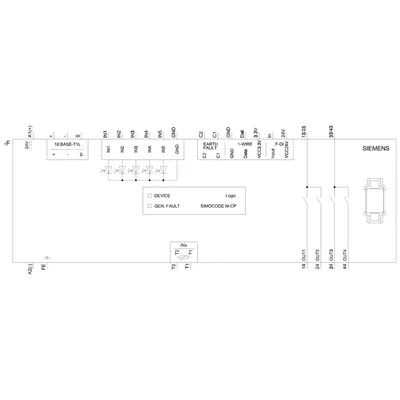

Inputs/ Outputs

parameterizable inputsVar

parameterizable outputsVar

number of inputs6

for thermistor connection1

number of digital inputs with a common reference potential6

type 1 acc. to IEC 61131Var

type 2 acc. to IEC 61131Yok

number of analog inputs0

number of sensor inputs for ground fault detection1

rated value24 V

number of outputs4

number of semiconductor outputs0

number of outputs as contact-affected switching element4

number of analog outputs0

switching behaviormonostable

number of relay outputs4

type of relay outputsMonostable

wire length for digital signals maximum600 m

wire length between sensor and electronics evaluation device with Cu 1.5 mm² and 150 nF/km maximum400 m

with conductor cross-section = 0.5 mm² maximum50 m

with conductor cross-section = 1.5 mm² maximum150 m

with conductor cross-section = 2.5 mm² maximum250 m

Protective and monitoring functions

asymmetry detectionVar

blocking current evaluationVar

power factor monitoringVar

ground fault detectionVar

ground-fault monitoringVar

phase failure detectionVar

phase sequence recognitionVar

voltage detectionVar

monitoring of number of start operationsVar

overvoltage detectionVar

overcurrent detection 1 phaseVar

undervoltage detectionVar

undercurrent detection 1 phaseVar

active power monitoringVar

type of current for monitoringAC current ve pulsating DC current (type A) acc. to IEC 62020-1

response time maximum100 ms

diagnostics function at sensor input with residual current transformer short-circuit detectionVar

diagnostics function at sensor input with residual current transformer open-circuit detectionVar

relative measurement deviation of residual current transformer2,5 %

current detectionVar

overload protectionVar

evaluation of thermistor motor protectionVar

total cold resistance number of sensors in series maximum1,5 kΩ

response value of thermoresistor3.400... 3.800 Ω

of the short-circuit control9 Ω

release value of thermoresistor1.500... 1.650 Ω

Motor control functions

parameterizable overload relayVar

circuit breaker controlVar

direct startVar

reverse startingVar

star-delta circuitVar

star-delta reversing circuitVar

Dahlander circuitVar

Dahlander reversing circuitYok

pole-changing switch circuitVar

pole-changing switch reversing circuitVar

slide controlVar

valve controlVar

Communication/ Protocol

PROFIBUS DP protocolYok

PROFINET IO protocolVar

PROFIsafe protocolYok

Modbus RTUYok

Modbus TCPVar

EtherNet/IPVar

OPC UA sunucusuVar

LLDPVar

Address Resolution Protocol (ARP)Var

SNMPVar

HTTPSVar

NTPVar

Media Redundancy Protocol (MRP)Yok

web serverVar

shared deviceVar

at the Ethernet interface AutocrossoverYok

at the Ethernet interface AutonegotiationVar

at the Ethernet interface AutosensingYok

Media Redundancy Protocol for Planned Duplication (MRPD)Yok

is supported Device Level Ring (DLR)Yok

is supported PROFINET system redundancy (S2)Var

supports PROFIenergy measured valuesYok

supports PROFIenergy shutdownYok

transfer rate10 Mbit/s

transfer rate maximum10 Mbit/s

PROFINET conformity classB

I&M0 - device-specific informationVar

I&M1 - higher level designation/location designationVar

I&M2 - installation dateVar

I&M3 - commentVar

type of electrical connection of the communication interfacespring-loaded terminal (push-in)

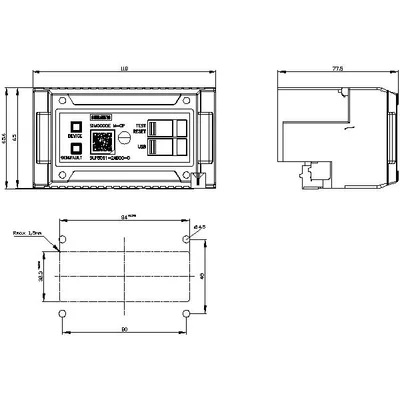

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew ve snap-on mounting

height65,6 mm

width118 mm

depth77,5 mm

top10 mm

bottom20 mm

left0 mm

right0 mm

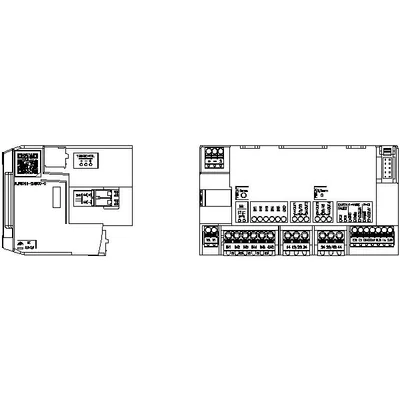

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

for auxiliary and control circuitspring-loaded terminals (push-in)

of the relay outputsspring-loaded terminal (push-in)

of the thermistor connectionspring-loaded terminal (push-in)

of the fail-safe digital inputspring-loaded terminal (push-in)

of the connection for ground fault inputspring-loaded terminal (push-in)

of the 1-Wire® connectionspring-loaded terminal (push-in)

of Industrial Ethernet interfacespring-loaded terminal (push-in)

for supply voltage for AWG cables solid1x (24... 12)

of the relay outputs solid1x (0,2... 2,5 mm²)

of the relay outputs finely stranded with core end processing1x (0,25... 2,5 mm²)

of the relay outputs for AWG cables solid1x (24... 12)

of the 1-Wire® connection solid1x (0,2... 1,5 mm²)

of the 1-Wire® connection finely stranded with core end processing1x (0,25... 1,5 mm²)

of the 1-Wire® connection for AWG cables solid1x (26... 16)

of the connection for ground fault input solid1x (0,2... 1,5 mm²)

of the connection for ground fault input finely stranded with core end processing1x (0,25... 1,5 mm²)

of the connection for ground fault input for AWG cables solid1x (26... 16)

of the fail-safe digital input solid1x (0,2... 1,5 mm²)

of the fail-safe digital input finely stranded with core end processing1x (0,25... 1,5 mm²)

of the fail-safe digital input for AWG cables solid1x (26... 16)

of the thermistor connection solid1x (0,2... 1,5 mm²)

of the thermistor connection finely stranded with core end processing1x (0,25... 1,5 mm²)

of the thermistor connection for AWG cables solid1x (26... 16)

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +80 °C

during transport-40... +80 °C

during operation according to IEC 607213K24 (condensation occasionally, no precipitation, no water, no ice formation, relative humidity 10... 95%), 3C3 (no salt mist), 3B2, 3S5 (sand must not enter the device), 3M6

during storage according to IEC 607211K22 (condensation occasionally, no precipitation, no water, no ice formation, relative humidity 10... 95%), 1C2 (no salt mist), 1B2, 1S10 (sand must not enter the device), 1M4

during transport according to IEC 607212K12 (no condensation, no thermal shock), 2C1 (no salt mist), 2B2, 2S1, 2M2

during operation5... 95 %

contact rating of auxiliary contacts according to ULB300 / R300

Short-circuit protection

design of short-circuit protection per outputfuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit breaker C-Char: 2 A (@1 kA) ve 6 A (I_K < 500 A)

Electrical Safety

touch protection against electrical shockfinger-safe

ATEX

IECExVar; IECEX BVS 25,0051 X

according to ATEX directive 2014/34/EUBVS 25 ATEX F001 X

explosion device group and category according to ATEX directive 2014/34/EUI (M2), II (2) G, II (2) D / I (M2), II (1/2) G, II (1G/2D)

Galvanic isolation

(electrically) protective separation according to IEC 60947-1all circuits with protective separation (double clearances ve creepage distances)

design of the electrical isolationProtective separation in accordance with IEC 60947-1 for all circuits

Main circuit

operating frequency rated value50... 60 Hz

Control circuit/ Control

product function soft starter controlVar

type of voltage of the control supply voltageDC

relative symmetrical tolerance of the control supply voltage frequency5 %

control supply voltage at DC rated value24 V

control supply voltage 1 at DC rated value24 V

initial value0,8

full-scale value1,2

at 24 V1,7 A

at 24 V7,5 ms

Aksesuarlar 16

Siemens 3UF8011-2AB00-0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3UL2302-1A	Aksesuar
3UF8923-0AA00-0	Aksesuar
3UF8920-0AA00-0	Aksesuar
3UF8200-1AA00-0	Aksesuar
3UL2307-1A	Aksesuar
3UL2306-1A	Aksesuar
3UL2305-1A	Aksesuar
3UL2304-1A	Aksesuar
3UL2303-1A	Aksesuar
3UF8902-0AA00-0	Aksesuar
3UF7932-0AA00-0	Seçmeli zorunlu ürün · Connecting cable
3UF7937-0BA00-0	Seçmeli zorunlu ürün · Connecting cable
3UF7933-0BA00-0	Seçmeli zorunlu ürün · Connecting cable
3UF7932-0BA00-0	Seçmeli zorunlu ürün · Connecting cable
3UF7935-0AA00-0	Seçmeli zorunlu ürün · Connecting cable
8WD4618-0FB	Seçmeli zorunlu ürün

İlgili Ürünler

MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR

SKU #YLSSMWXCWLO2KA6

İlgili Aramalar

Siemens 3UF8011-2AB00-0 fiyatSiemens 3UF8011-2AB00-0 teklif alSiemens 3UF8011-2AB00-0 satın al3UF8011-2AB00-0 fiyat3UF8011-2AB00-0 stok durumuSiemens yedek parçaSiemens 3UF8011-2AB00-0 muadilSiemens 3UF8011-2AB00-0 teknik özellikler

Çerez Kullanımı

Siemens 3UF8011-2AB00-0

Ürün Hakkında

Siemens 3UF8011-2AB00-0

Teknik Özellikler

Aksesuarlar 16

İlgili Ürünler

3MV8100-0MB00

3MV8100-0MC00

3MV8100-0MD00

3MV8100-0ME00

3MV8100-0MF00

3MV8100-0MG00

3MV8100-0MH00

3MV8100-0MJ00

3MV8100-0MK00

3MV8100-0ML00

Öne Çıkan Ürünler

MXQ25L-40B-M9NZ

NCDJ2L10-300-B

MTS32-150M

VQZ2121-5LO1-N3T

CM2B40-75Z

NCDMC150-0600-X155US

VM8001-5

NCDGFN25-0100

AC40B-N04G-RZ-B F/R COMBO MODULAR

AC20A-01G-V-1-B FR/L COMBO MODULAR

İlgili Aramalar
