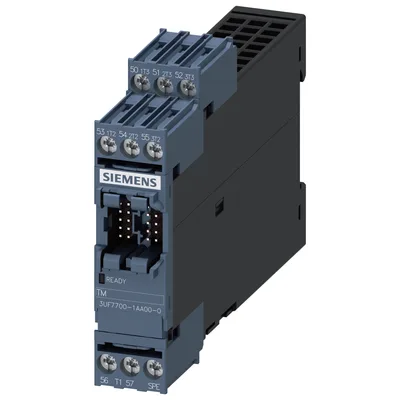

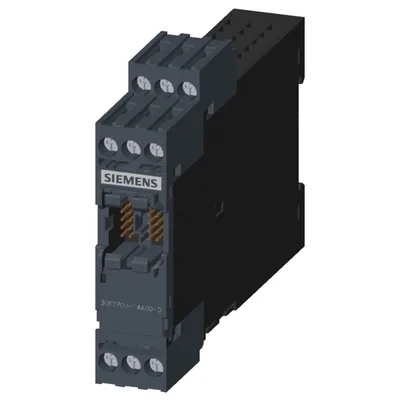

Siemens 3UF7700-1AA00-0
Temperature module, 3 inputs for connection of up to 3 temperature sensors, for SIMOCODE pro V basic unit
product brand nameSIMOCODE
product designationtemperature module
product type designationTM
input for thermistor connectionYok
input for analog temperature sensorsVar
input for ground fault detectionYok
Ürün Hakkında
Temperature module, 3 inputs for connection of up to 3 temperature sensors, for SIMOCODE pro V basic unit
Siemens 3UF7700-1AA00-0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMOCODE
product designationtemperature module
product type designationTM
General technical data
input for thermistor connectionYok
input for analog temperature sensorsVar
input for ground fault detectionYok
consumed active power0,2 W
surge voltage resistance rated value4.000 V
shock resistance according to IEC 60068-2-2715 g / 11 ms
vibration resistance according to IEC 60068-2-61... 6 Hz: 15 mm, 6... 500 Hz: 2 g
reference code according to IEC 81346-2B
initial value-50 °C
full-scale value500 °C
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight109,95 g
with NTC minimum80 °C
with NTC maximum160 °C
with KTY 84 minimum-40 °C
with KTY 84 maximum300 °C
with KTY 83-110 minimum-50 °C
with KTY 83-110 maximum175 °C
with Pt 1000 minimum-50 °C
with Pt 1000 maximum500 °C
with Pt 100 minimum-50 °C
with Pt 100 maximum500 °C
relative temperature-related measurement deviation at 20 °C2 %
sensor current for Pt 100 typical1 mA
sensor current for Pt 1000/KTY 83-110/KTY 84/NTC typical0,2 mA
short-circuit detectionVar
open-circuit detectionVar
short-circuit detectionVar
open-circuit detectionVar
short-circuit detectionVar
open-circuit detectionVar
short-circuit detectionVar
open-circuit detectionVar
short-circuit detectionVar
open-circuit detectionYok
type of connection technology of sensor circuit2-wire veya 3-wire connection
A/D conversion time at sensor circuit500 ms
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1class A
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
due to burst according to IEC 61000-4-41 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
Inputs/ Outputs
number of inputs3
number of digital inputs0
number of analog inputs3
number of outputs as contact-affected switching element0
number of analog outputs0
Protective and monitoring functions
design of the sensor for temperature measurement connectablePT100 / PT1000 / KTY83-110 / KTY84 / NTC
Precision
temperature drift per °C0,05 %/°C

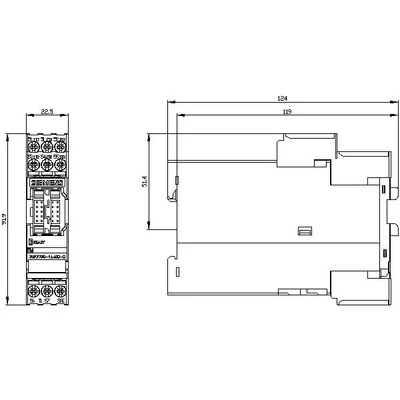

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting
height92 mm
width22,5 mm
depth124 mm
top40 mm
bottom40 mm
left0 mm
right0 mm
Connections/ Terminals
type of electrical connection for auxiliary and control circuitscrew-type terminals
solid1x (0,5... 4.0mm²), 2x (0,5... 2,5 mm²)
finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid1x (20... 14), 2x (20... 16)
for AWG cables stranded1x (20... 12), 2x (20... 14)
tightening torque with screw-type terminals0,8... 1,2 N·m
tightening torque [lbf·in] with screw-type terminals7... 10,3 lbf·in
Ambient conditions
1 maximum2.000 m
2 maximum3.000 m; maks. +50 °C (no protective separation)
3 maximum4.000 m; maks. +40 °C (no protective separation)
during operation-25... +60 °C
during storage-40... +80 °C
during transport-40... +80 °C
during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
during storage according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
during transport according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
relative humidity during operation5... 95 %
Electrical Safety
touch protection against electrical shockfinger-safe
Galvanic isolation
galvanic isolation between inputs and electronicsYok
