Siemens 3UF7600-1AB01-0 için nasıl fiyat teklifi alabilirim?

Siemens 3UF7600-1AB01-0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-937FC780B99F ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3UF7600-1AB01-0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3UF7600-1AB01-0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3UF7600-1AB01-0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

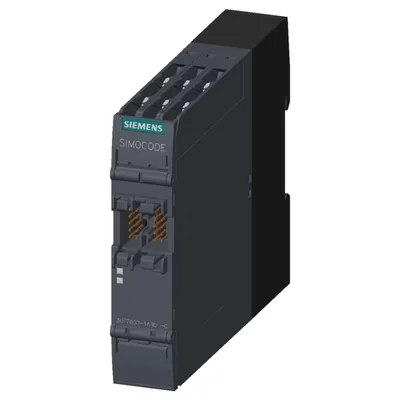

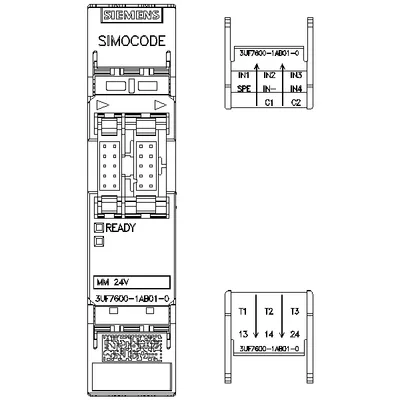

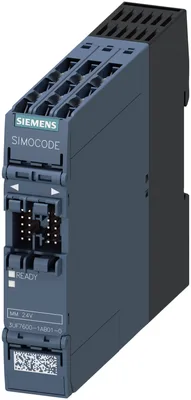

Siemens 3UF7600-1AB01-0

multifunction modül, 4 giriş ve 2 röle çıkış, giriş gerilimi 24 V DC, röle çıkış monostable, analog residual akım detection, ile residual-current transformatör 3UL23 bağlantı sıcaklık sensör Pt100/Pt1000/KTY/NTC, max. 1 multifunction modül per temel cihaz SIMOCODE pro S

SiemensMFR # 3UF7600-1AB01-0SKU # CEY-937FC780B99F

product brand nameSIMOCODE

product designationMultifunction module

product type designationMM

input for thermistor connectionYok

digital inputVar

input for residual current converterVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3UF7600-1AB01-0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIMOCODE

product designationMultifunction module

product type designationMM

1 of residual current transformer connectable3UL2302-1A

2 of residual current transformer connectable3UL2303-1A

3 of residual current transformer connectable3UL2304-1A

4 of residual current transformer connectable3UL2305-1A

5 of residual current transformer connectable3UL2306-1A

6 of residual current transformer connectable3UL2307-1A

General technical data

product function residual current displayVar

adjustable current response value current40... 0,03 A

input for thermistor connectionYok

digital inputVar

input for residual current converterVar

input for analog temperature sensorsVar

input for ground fault detectionVar

relay outputVar

consumed active power0,8 W

insulation voltage with degree of pollution 3 at AC rated value300 V

surge voltage resistance rated value4.000 V

when mounted on current measuring module according to IEC 60068-2-2710 g / 11 ms

according to IEC 60068-2-2715 g / 11 ms

according to IEC 60068-2-61... 6 Hz: 15 mm, 6... 500 Hz: 2 g

when mounted on current measuring module according to IEC 60068-2-61... 4 Hz / 15 mm, 4... 500 Hz / 1g

at 24 V6 A

at 120 V6 A

at 230 V3 A

at 24 V2 A

at 60 V0,55 A

at 125 V0,25 A

mechanical service life (operating cycles) typical10.000.000

electrical endurance (operating cycles) typical100.000

buffering time in the event of power failure0 s

reference code according to IEC 81346-2K

at 50 °C6 A

at 60 °C5 A

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1

Net Weight0,207 kg

with NTC minimum80 °C

with NTC maximum160 °C

with KTY 84 minimum-40 °C

with KTY 84 maximum300 °C

with KTY 83-110 minimum-50 °C

with KTY 83-110 maximum175 °C

with Pt 1000 minimum-50 °C

with Pt 1000 maximum500 °C

with Pt 100 minimum-50 °C

with Pt 100 maximum500 °C

relative temperature-related measurement deviation at 20 °C2 %

sensor current for Pt 100 typical1 mA

sensor current for Pt 1000/KTY 83-110/KTY 84/NTC typical0,2 mA

short-circuit detectionVar

open-circuit detectionVar

short-circuit detectionVar

open-circuit detectionVar

short-circuit detectionVar

open-circuit detectionVar

short-circuit detectionVar

open-circuit detectionVar

short-circuit detectionVar

open-circuit detectionYok

type of connection technology of sensor circuit2-wire veya 3-wire connection

A/D conversion time at sensor circuit500 ms

measurable line frequency initial value16 Hz

measurable line frequency full-scale value400 Hz

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

due to high-frequency radiation according to IEC 61000-4-610 V

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

conducted HF interference emissions according to CISPR11corresponds to degree of severity A

field-bound HF interference emission according to CISPR11corresponds to degree of severity A

Inputs/ Outputs

parameterizable inputsVar

parameterizable outputsVar

number of inputs4

number of digital inputs4

with a common reference potential4

type 1 acc. to IEC 61131Yok

type 2 acc. to IEC 61131Var

number of analog inputs0

for ground fault detection1

for temperature measurement1

input voltage at digital input at DC rated value24 V

number of outputs2

number of semiconductor outputs0

number of outputs as contact-affected switching element2

number of analog outputs0

switching behaviormonostable

property of contacts of the relay outputsFloating NO contacts (NC reaction parameterizable via internal signal conditioning), of which 2 relay outputs connected to common ground ve one relay output separately, can be freely assigned to the control functions (e.g. line, star (wye), delta contactor veya signaling of the operating state)

wire length for digital signals maximum300 m

Protective and monitoring functions

product function ground fault detectionVar

type of current for monitoringType A (alternating currents ve pulsing DC residual currents)

response time maximum0 s

diagnostics function at sensor input with residual current transformer short-circuit detectionVar

diagnostics function at sensor input with residual current transformer open-circuit detectionVar

relative measurement deviation of residual current transformer7,5 %

design of the sensor for temperature measurement connectablePT100 / PT1000 / KTY83-110 / KTY84 / NTC

Precision

temperature drift per °C0,05 %/°C

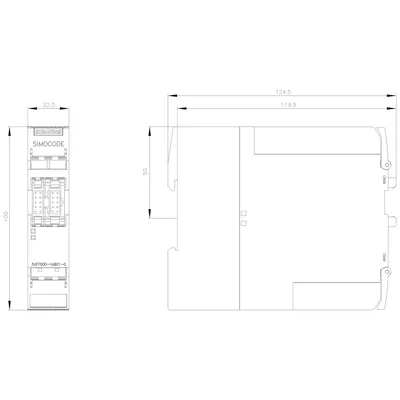

Installation/ mounting/ dimensions

mounting positionany

height100 mm

width22,5 mm

depth124,5 mm

top40 mm

bottom40 mm

left0 mm

right0 mm

diameter of inlet opening of connectable residual current transformer35... 210 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

type of electrical connection for auxiliary and control circuitscrew-type terminals

solid1x (0,5... 2,5 mm²), 2x ( 0,5... 1,5 mm²)

finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,0 mm²)

for AWG cables solid1x (20... 14), 2x (20... 16)

for AWG cables stranded1x (20... 12), 2x (20... 14)

tightening torque with screw-type terminals0,6... 0,8 N·m

tightening torque [lbf·in] with screw-type terminals5,2... 7 lbf·in

Ambient conditions

1 maximum2.000 m

2 maximum3.000 m; maks. +50 °C (no protective separation)

3 maximum4.000 m; Yok protective separation 40 °C

during operation-25... +60 °C

during storage-40... +80 °C

during transport-40... +80 °C

during operation according to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during storage according to IEC 607211K6 (no condensation, relative humidity 10... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4

during transport according to IEC 607212K2, 2C1, 2S1, 2M2

relative humidity during operation10... 95 %

contact rating of auxiliary contacts according to ULB300 / R300

Short-circuit protection

design of short-circuit protection per outputFuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1,6 A (IEC 60947-5-1) veya 6 A (I_K < 500 A)

Electrical Safety

touch protection against electrical shockfinger-safe

ATEX

certificate of suitability according to ATEX directive 2014/34/EUBVS 06 ATEX F001

explosion device group and category according to ATEX directive 2014/34/EUII (2) G, II (2 ) D, I (M2)

Galvanic isolation

(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths ve clearances), the information in the "Protective Separation" test report, Yok. A0258, must be observed (link see further information)

galvanic isolation between inputs and electronicsYok

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

initial value0,8

full-scale value1,2
