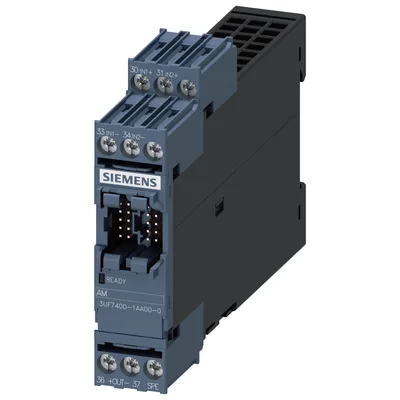

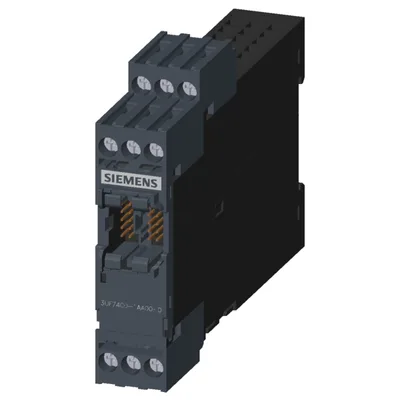

Siemens 3UF7400-1AA00-0
analog modül, 2 giriş (passive) ve 1 çıkış, için analog signals 0/4...20 mA için SIMOCODE pro V temel ünite
product brand nameSIMOCODE
product designationanalog modules
product type designationAM
input for thermistor connectionYok
input for analog temperature sensorsYok
input for ground fault detectionYok
Ürün Hakkında
analog modül, 2 giriş (passive) ve 1 çıkış, için analog signals 0/4...20 mA için SIMOCODE pro V temel ünite
Siemens 3UF7400-1AA00-0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMOCODE
product designationanalog modules
product type designationAM
General technical data
input for thermistor connectionYok
input for analog temperature sensorsYok
input for ground fault detectionYok
consumed active power0,9 W
surge voltage resistance rated value4.000 V
shock resistance according to IEC 60068-2-2715 g / 11 ms
vibration resistance according to IEC 60068-2-61... 6 Hz: 15 mm, 6... 500 Hz: 2 g
reference code according to IEC 81346-2B
reference code according to IEC 81346-2:2019B
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
Net Weight0,11 kg
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1class A
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
due to burst according to IEC 61000-4-41 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
Inputs/ Outputs
number of inputs2
number of digital inputs0
number of analog inputs2
input current as destruction limit maximum permissible40 mA
input resistance50 Ω
A/D resolution at the analog input12 bit
A/D conversion time at the analog input150 ms
diagnostics function at the analog input open-circuit detectionVar
measuring range of current parameterizable0/4 mA... 20 mA
relative symmetrical measuring accuracy1 %
relative symmetrical accuracy of output signal1 %
number of outputs1
number of semiconductor outputs0
number of outputs as contact-affected switching element0
number of analog outputs1
output load at analog output maximum500 Ω
D/A conversion time at analog output25 ms
A/D resolution at analog output12 bit
output voltage maximum30 V
type of voltage of the output voltageDC
property of the output short-circuit proofVar
value range of output current parameterizable0/4 mA... 20 mA

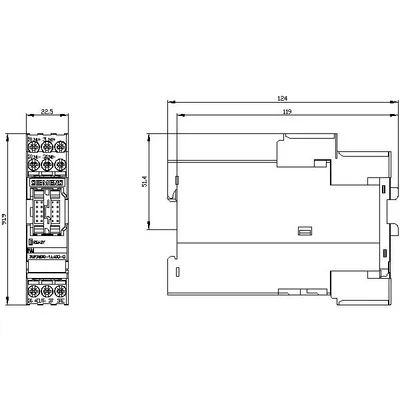

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting
height92 mm
width22,5 mm
depth124 mm
top40 mm
bottom40 mm
left0 mm
right0 mm

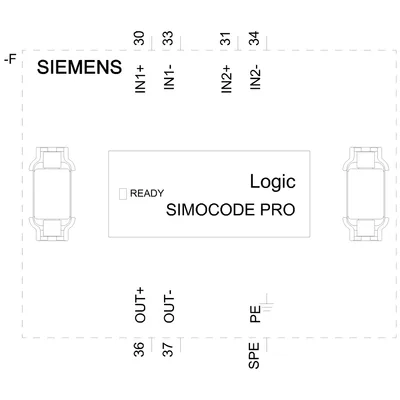

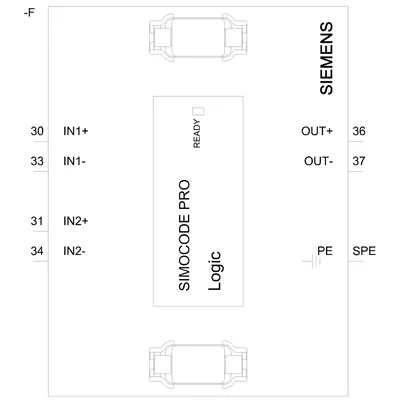

Connections/ Terminals
type of electrical connection for auxiliary and control circuitscrew-type terminals
type of connection technology2-wire connection
at inputshield recommended up to 30 m ve/veya when exiting control cabinet, shield required from 30 m
at outputshield recommended up to 30 m ve/veya when exiting control cabinet, shield required from 30 m
solid1x (0,5... 4.0mm²), 2x (0,5... 2,5 mm²)
finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid1x (20... 14), 2x (20... 16)
for AWG cables stranded1x (20... 12), 2x (20... 14)
tightening torque with screw-type terminals0,8... 1,2 N·m
tightening torque [lbf·in] with screw-type terminals7... 10,3 lbf·in
Ambient conditions
1 maximum2.000 m
2 maximum3.000 m; maks. +50 °C (no protective separation)
3 maximum4.000 m; maks. +40 °C (no protective separation)
during operation-25... +60 °C
during storage-40... +80 °C
during transport-40... +80 °C
during operation according to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
during storage according to IEC 607211K6 (no condensation, relative humidity 10... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
during transport according to IEC 607212K2, 2C1, 2S1, 2M2
relative humidity during operation5... 95 %
Electrical Safety
touch protection against electrical shockfinger-safe
Galvanic isolation
between output and electronicsYok
between inputs and electronicsYok
