Siemens 3UF7330-1AB00-0 için nasıl fiyat teklifi alabilirim?

Siemens 3UF7330-1AB00-0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B038DD4E ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3UF7330-1AB00-0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3UF7330-1AB00-0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3UF7330-1AB00-0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

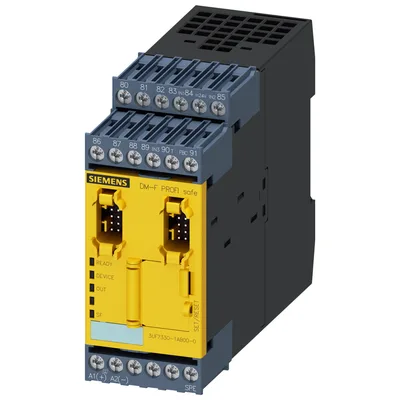

Siemens 3UF7330-1AB00-0

fail-safe dijital modül DM-F PROFIsafe, için fail-safe shutdown via bus/PROFIsafe, Us: 24 V DC, 2 röle enabling circuits, 2 röle çıkış, 3 giriş, maximum achievable SIL IEC 61508: 3, maximum achievable PL ISO 13849-1: E

SiemensMFR # 3UF7330-1AB00-0SKU # CEY-8EF3B038DD4E

product brand nameSIMOCODE

product designationFail-safe digital module

design of the productfor fail-safe shutdown

product type designationDM-FP

EMERGENCY OFF functionYok

automatic startYok

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3UF7330-1AB00-0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIMOCODE

product designationFail-safe digital module

design of the productfor fail-safe shutdown

product type designationDM-FP

General technical data

EMERGENCY OFF functionYok

automatic startYok

light barrier monitoringYok

light array monitoringYok

protective door monitoringYok

magnetically operated switch monitoring NC-NOYok

magnetically operated switch monitoring NC-NCYok

pressure-sensitive mat monitoringYok

monitored start-upYok

input for thermistor connectionYok

digital inputVar

input for analog temperature sensorsYok

input for ground fault detectionYok

relay outputVar

consumed active power4 W

insulation voltage with degree of pollution 3 at AC rated value300 V

surge voltage resistance rated value4.000 V

shock resistance according to IEC 60068-2-2715 g / 11 ms

vibration resistance according to IEC 60068-2-61... 6 Hz: 15 mm, 6... 500 Hz: 2 g

operating frequency maximum360 1/y

at 24 V3 A

at 120 V3 A

at 240 V1,5 A

at 24 V4 A

at 60 V0,55 A

at 125 V0,22 A

at 250 V0,11 A

at 24 V3 A

at 120 V3 A

at 240 V1,5 A

at 24 V4 A

at 60 V0,55 A

at 125 V0,22 A

at 250 V0,11 A

mechanical service life (operating cycles) typical10.000.000

electrical endurance (operating cycles) typical100.000

buffering time in the event of power failure60 ms

after power failure typical1 s

typical40 ms

maximum80 ms

reference code according to IEC 81346-2F

reference code according to IEC 81346-2:2019F

type of input characteristicType 2 in accordance with EN 61131-2

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1

Net Weight0,315 kg

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV network connection / 1 kV control connection

due to conductor-earth surge according to IEC 61000-4-51 kV

due to conductor-conductor surge according to IEC 61000-4-50,5 kV

due to high-frequency radiation according to IEC 61000-4-610 V

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

conducted HF interference emissions according to CISPR11corresponds to degree of severity A

field-bound HF interference emission according to CISPR11corresponds to degree of severity A

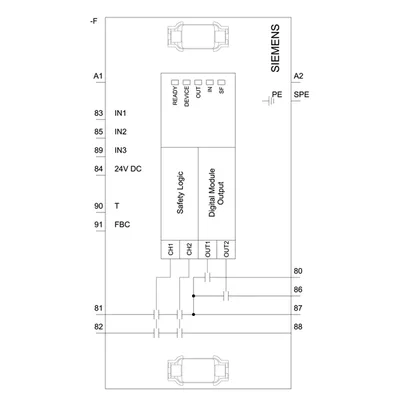

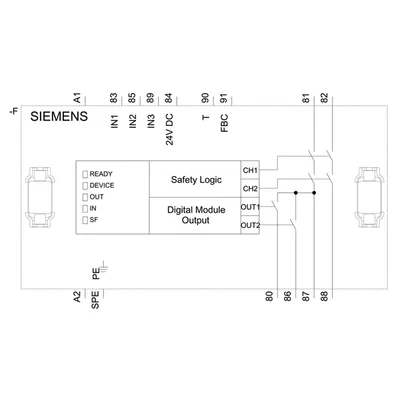

Inputs/ Outputs

parameterizable inputsVar

parameterizable outputsVar

number of inputs4

feedback inputVar

number of digital inputs3

with a common reference potential4

type 1 acc. to IEC 61131Yok

type 2 acc. to IEC 61131Var

number of analog inputs0

number of outputs2

number of semiconductor outputs0

as NO contact safety-related instantaneous contact2

number of analog outputs0

switching behaviormonostable

property of contacts of the relay outputsFail-safe NO contacts

wire length for digital signals maximum300 m

Product Function

position switch monitoringYok

EMERGENCY-OFF circuit monitoringYok

valve monitoringYok

opto-electronic protection device monitoringYok

tactile sensor monitoringYok

magnetically operated switch monitoringYok

proximity switch monitoringYok

safety-related circuitsYok

Communication/ Protocol

protocol is supported PROFIsafe protocolVar

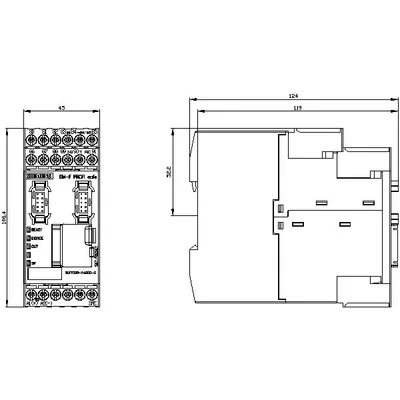

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew ve snap-on mounting

height106 mm

width45 mm

depth124 mm

top40 mm

bottom40 mm

left0 mm

right0 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

type of electrical connection for auxiliary and control circuitscrew-type terminals

solid1x (0,5... 4.0mm²), 2x (0,5... 2,5 mm²)

finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)

for AWG cables solid1x (20... 12), 2x (20... 14)

for AWG cables stranded1x (20... 14), 2x (20... 16)

tightening torque with screw-type terminals0,8... 1,2 N·m

tightening torque [lbf·in] with screw-type terminals7... 10,3 lbf·in

Ambient conditions

1 maximum2.000 m

2 maximum3.000 m; maks. +50 °C (no protective separation)

3 maximum4.000 m; maks. +40 °C (no protective separation)

during operation-25... +60 °C

during storage-40... +80 °C

during transport-40... +80 °C

during operation according to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during storage according to IEC 607211K6 (no condensation, relative humidity 10... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4

during transport according to IEC 607212K2, 2C1, 2S1, 2M2

relative humidity during operation5... 95 %

contact rating of auxiliary contacts according to ULB300 / R300

Short-circuit protection

design of the fuse link for short-circuit protection of relay enabling circuits requiredgL/gG: 4 A

Safety related data

product function suitable for safety functionYok

safe stateSafety outputs switched off

stop category according to IEC 60204-10

failure rate [FIT] at rate of recognizable hazardous failures (λdd)897 FIT

failure rate [FIT] at rate of non-recognizable hazardous failures (λdu)7 FIT

average diagnostic coverage level (DCavg)99 %

ISO 13849

performance level (PL) according to EN ISO 13849-1e

IEC 61508

according to IEC 61508SIL 3

safety device type according to IEC 61508-2Type B

according to IEC 615082E-5

Safe failure fraction (SFF)99 %

according to IEC 615081

T1 value for proof test interval or service life according to IEC 6150820 a

Electrical Safety

touch protection against electrical shockfinger-safe

ATEX

certificate of suitability according to ATEX directive 2014/34/EUBVS 06 ATEX F001

explosion device group and category according to ATEX directive 2014/34/EUII (2) G, II (2 ) D, I (M2)

Response times/ Monitoring times

PROFIsafe monitoring time F-WD-Time250 ms

in case of failure OFDT200 ms

in faultless state WCDT150 ms

Galvanic isolation

(electrically) protective separation according to IEC 60947-1All circuits in SIMOCODE pro are with protective separation, i.e. they are designed with doubled creepage paths ve clearances. NOTICE: The information in the "Protective Separation" test report, Yok. 2668, must be observed.

design of the electrical isolationProtective separation in accordance with IEC 60947-1 for all circuits, up to installation altitude of 2000 m

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

initial value0,8

full-scale value1,2

at 24 V8,3 A

at 24 V1 ms
