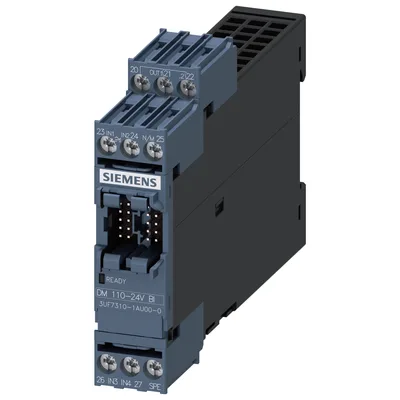

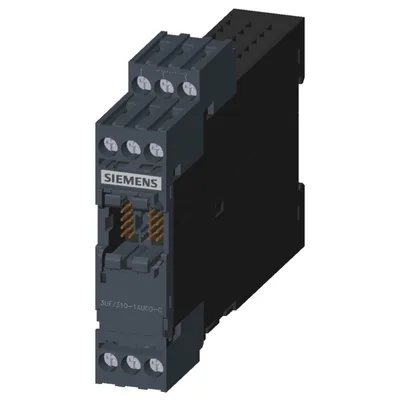

Siemens 3UF7310-1AU00-0
dijital modül, 4 giriş ve 2 röle çıkış, giriş gerilimi 110-240 V AC/DC röle çıkış bistable, max. 2 dijital modülleri, için SIMOCODE pro V temel ünite
product brand nameSIMOCODE
product designationdigital modules
product type designationDM bi
input for thermistor connectionYok
digital inputVar
input for analog temperature sensorsYok
Ürün Hakkında
dijital modül, 4 giriş ve 2 röle çıkış, giriş gerilimi 110-240 V AC/DC röle çıkış bistable, max. 2 dijital modülleri, için SIMOCODE pro V temel ünite
Siemens 3UF7310-1AU00-0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMOCODE
product designationdigital modules
product type designationDM bi
General technical data
input for thermistor connectionYok
digital inputVar
input for analog temperature sensorsYok
input for ground fault detectionYok
relay outputVar
consumed active power0,7 W
insulation voltage with degree of pollution 3 at AC rated value300 V
surge voltage resistance rated value4.000 V
shock resistance according to IEC 60068-2-2715 g / 11 ms
vibration resistance according to IEC 60068-2-61... 6 Hz: 15 mm, 6... 500 Hz: 2 g
at 24 V6 A
at 120 V6 A
at 230 V3 A
at 24 V2 A
at 60 V0,55 A
at 125 V0,25 A
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) typical100.000
reference code according to IEC 81346-2K
reference code according to IEC 81346-2:2019K
at 50 °C6 A
at 60 °C5 A
Substance Prohibitance (day/month/year)05/01/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight134,85 g
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1class A
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
due to burst according to IEC 61000-4-41 kV
due to conductor-earth surge according to IEC 61000-4-52 kV
due to conductor-conductor surge according to IEC 61000-4-51 kV
due to high-frequency radiation according to IEC 61000-4-610 V
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
conducted HF interference emissions according to CISPR11corresponds to degree of severity A
field-bound HF interference emission according to CISPR11corresponds to degree of severity A
Inputs/ Outputs
parameterizable inputsVar
parameterizable outputsVar
number of inputs4
number of digital inputs4
with a common reference potential4
type 1 acc. to IEC 61131Yok
type 2 acc. to IEC 61131Yok
number of analog inputs0
input voltage at digital input at DC rated value110 V
number of outputs2
number of semiconductor outputs0
number of outputs as contact-affected switching element2
number of analog outputs0
switching behaviorbistable
property of contacts of the relay outputsFloating NO contacts (NC reaction parameterizable via internal signal conditioning), connected to common ground, can be freely assigned to the control functions (e.g. line, star (wye), delta contactor veya signaling of the operating state)
wire length for digital signals maximum200 m

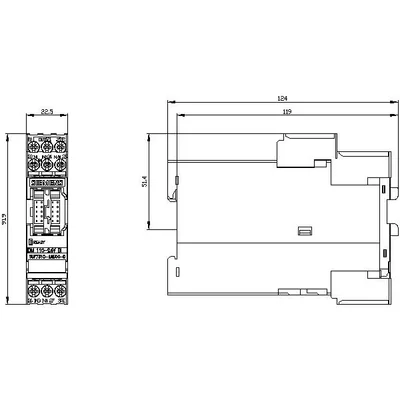

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting
height92 mm
width22,5 mm
depth124 mm
top40 mm
bottom40 mm
left0 mm
right0 mm
Connections/ Terminals
product component removable terminal for auxiliary and control circuitVar
type of electrical connection for auxiliary and control circuitscrew-type terminals
solid1x (0,5... 4.0mm²), 2x (0,5... 2,5 mm²)
finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid1x (20... 14), 2x (20... 16)
for AWG cables stranded1x (20... 12), 2x (20... 14)
tightening torque with screw-type terminals0,8... 1,2 N·m
tightening torque [lbf·in] with screw-type terminals7... 10,3 lbf·in
Ambient conditions
1 maximum2.000 m
2 maximum3.000 m; maks. +50 °C (no protective separation)
3 maximum4.000 m; maks. +40 °C (no protective separation)
during operation-25... +60 °C
during storage-40... +80 °C
during transport-40... +80 °C
during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
during storage according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
during transport according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
relative humidity during operation5... 95 %
contact rating of auxiliary contacts according to ULB300 / R300
Short-circuit protection
design of short-circuit protection per outputFuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1,6 A (IEC 60947-5-1) veya 6 A (I_K < 500 A)
Electrical Safety
touch protection against electrical shockfinger-safe
Galvanic isolation
(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths ve clearances), the information in the "Protective Separation" test report, Yok. A0258, must be observed (link see further information)
Control circuit/ Control
type of voltage of the control supply voltageAC/DC
at 50 Hz rated value110... 240 V
at 60 Hz rated value110... 240 V
control supply voltage frequency 150... 60 Hz
control supply voltage at DC rated value110... 240 V
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
